StetSom V 1000.1 ES User Manual

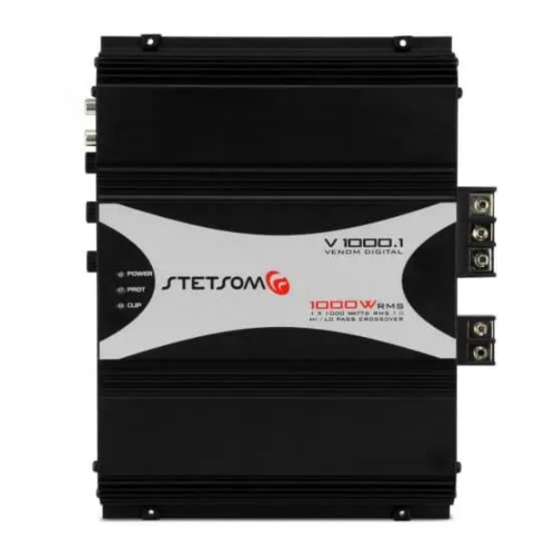

LEDS INDICATORS (TOP OF AMPLIFIER)

BLUE LED (POWER): illuminates when the power is on.
RED LED (PROT): illuminates when there are some problem in the functioning of amplifier.

HOW TO ACT IN CASE OF PROBLEMS

NOT TURN ON:
- The cables are not correctly connected (terminals BAT, GND and REM). Make sure that all
connections has mechanical and electrical contact.
- Fuses/circuit breakers (external) are defective or burned. Take care about the correct value of the
new fuse!
- Output remote/electric antenna of CD-player/MP3-player with problem (burn).
NO SOUND:
- The cables of speakers or plugs RCA are not connected correctly.
- Check if the LEVEL control is not in the minimum.
NO SOUND / RED LED (PROTECTION) ILLUMINATED:
- Speakers or cables (damaged), so, check speakers, cables and connections.
- Check the battery charge.
BAD SOUND QUALITY (DISTORTION):
- The speakers are overloaded, so, decrease the level and redo the gain adjustment (see iten
2/general description).
WEAK BASS:
- Cables of speakers (+) and (-) are changed, speakers out of phase (see iten 5/general description).
MOTOR NOISE, HORN, SIGNAL LIGHT, ETC:
- Use suppressive cables in ignition candles.
- Use capacitors in the alternator, horn, ignition.
- Pass the shielded RCA cable away from any other cable, because it is more sensitive to interference.
- Connect to power (+12V) separate for the sound system. Use a fuse to 30 cm from the battery for
protection.
- Make a good grounding of the amplifier. To do this, remove the paint from the chassis of the vehicle
at the desired point. Screw the cable using a ground terminal. To protect from oxidation, insulate
with paint.
- Do not loop the ground wire. Avoid using several ground wires. Prefer a star connection, with all the
ground wires aside from a single point.
Phone
: (786) 2651960 - www.stetsom.com - export@stetsom.com
VENOM LINE VENOM LINE
H A L F H A L F
BRIDGE BRIDGE
MODELO: V 1000.1 ES – 2 OHMs
Número de Canais:
Potência @ 13,8V Mono 1 Ohm:
Potência @ 13,8V Mono 2 Ohms:
Potência @ 13,8V Mono 4 Ohms:
Impedância Mínima de Saída
Impedância de Entrada
Sensibilidade Mínima de entrada:
Distorção Harmônica Total:
Relação sinal ruído:
Resp. em Freq. (-3dB) @ 4 Ohms:
Freq. do Crossover HIGH PASS:
Freq. do Crossover LOW PASS:
Tensão de Alimentação:
Consumo c/ Sinal Musical:
Consumo c/ Sinal Senoidal:
Dimensões em mm (A x L x C):
Peso:

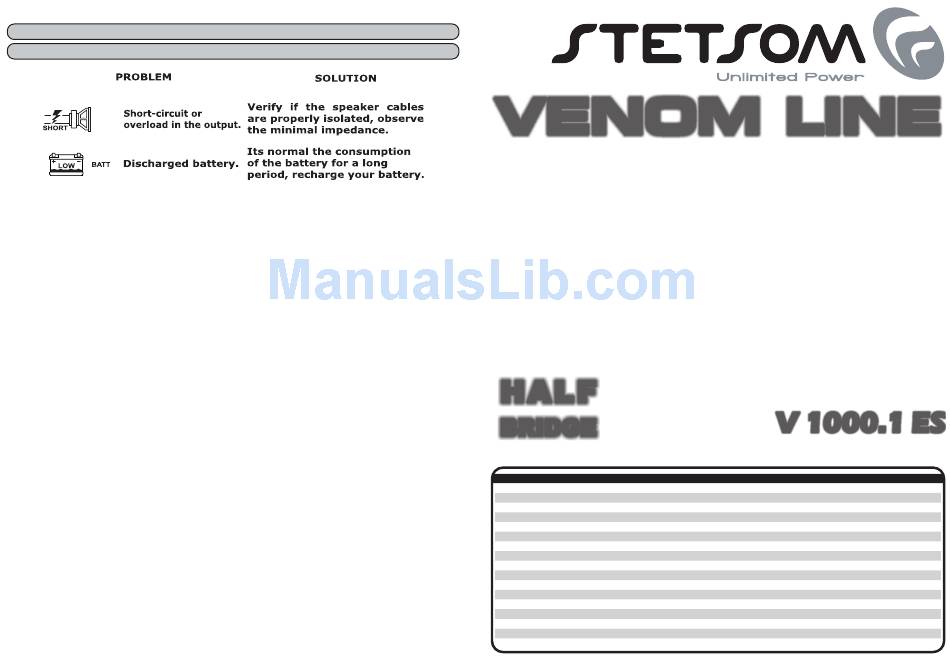

USER'S GUIDE
V 1000.1 ES V 1000.1 ES
V 1000.1 ES – 1 OHM
1 1
- 1000 Watts RMS
1000 Watts RMS 550 Watts RMS
590 Watts RMS 300 Watts RMS
2 Ohms 1 Ohm
28 KOhms 25 KOhms
0,2V 0,2V
< 0,9 % THD < 0,9 % THD
> 90 dB > 90 dB
20 Hz à 20 KHz 20 Hz à 20 KHz
20 Hz à 2 KHz 20 Hz à 2 KHz
50 Hz à 20 KHz 50 Hz à 20 KHz
9,5 à 15V 9,5 à 15V
1 a 40 A 1,6 a 41 A
1 a 80 A 1,6 a 82 A
40 x 240 x 242 40 x 240 x 242
2,0 Kg 2,0 Kg
Jan/2013 - R3
