TRI MODE
The Tri Mode allows the stereo and the bridge to be ON simultaneously. This way the switches are
kept in OFF position.
2
2
1000uF/100V
2
SYSTEM TROUBLESHOOTING "LED"
Note: If only the RED LED blinks (BLUE LED OFF), turn on the device with the volume of CD/MP3-player down. If
the problem persists, please contact us.
HOW TO ACT IN CASE OF PROBLEMS
NOT TURN ON:
- The cables are not correctly connected (terminals BAT, GND and REM). Make sure that all connections
has mechanical and electrical contact.
- Fuses/circuit breakers (external) are defective or burned. Take care about the correct value of the
new fuse!
NO SOUND:
- The cables of speakers or plugs RCA are not connected correctly.
- Check if the LEVEL control is not in the minimum.
NO SOUND / RED LED (PROTECTION) ILLUMINATED:
- Speakers or cables (damaged), so, check speakers, cables and connections.
- Check the battery charge.
BAD SOUND QUALITY (DISTORTION):
- The speakers are overloaded, so, decrease the level and redo the gain adjustment (see iten 2/general
description).
WEAK BASS:
- Cables of speakers (+) and (-) are changed, speakers out of phase (see iten 5/general description).
Phone: (786) 2651960 - www.stetsom.com - export@stetsom.com
2
2
CHASSIS
BATTERY
12 V
1000uF/100V
2

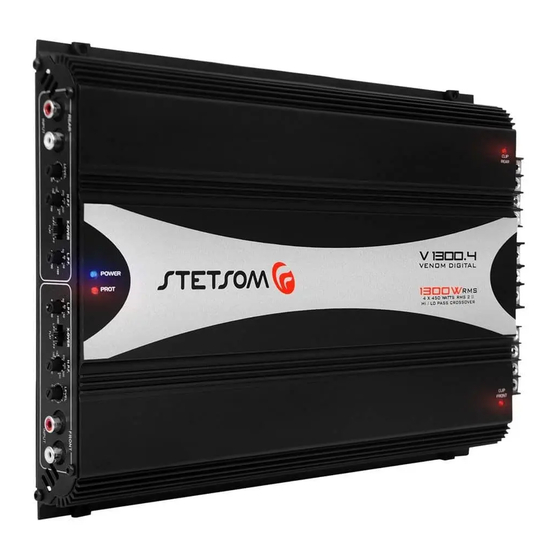

VENOM LINE
VENOM LINE

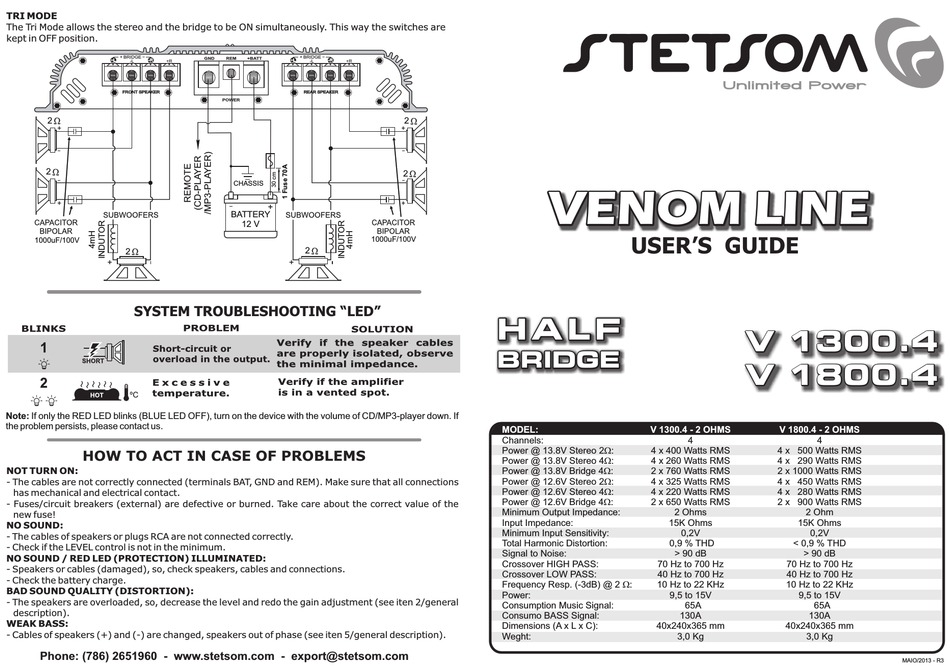

USER'S GUIDE
H A L F
H A L F
BRIDGE
BRIDGE
MODEL:
V 1300.4 - 2 OHMS
Channels:
Power @ 13.8V Stereo 2:
4 x 400 Watts RMS
Power @ 13.8V Stereo 4:
4 x 260 Watts RMS
Power @ 13.8V Bridge 4:
2 x 760 Watts RMS
Power @ 12.6V Stereo 2:
4 x 325 Watts RMS
Power @ 12.6V Stereo 4:
4 x 220 Watts RMS
Power @ 12.6V Bridge 4:
2 x 650 Watts RMS
Minimum Output Impedance:
2 Ohms
Input Impedance:
15K Ohms
Minimum Input Sensitivity:
Total Harmonic Distortion:
0,9 % THD
Signal to Noise:
> 90 dB
Crossover HIGH PASS:
70 Hz to 700 Hz
Crossover LOW PASS:
40 Hz to 700 Hz
Frequency Resp. (-3dB) @ 2 :
10 Hz to 22 KHz
Power:
9,5 to 15V
Consumption Music Signal:
Consumo BASS Signal:
Dimensions (A x L x C):
40x240x365 mm
Weght:
V 1300.4
V 1300.4
V 1800.4
V 1800.4
V 1800.4 - 2 OHMS
4
4
4 x 500 Watts RMS
4 x 290 Watts RMS
2 x 1000 Watts RMS
4 x 450 Watts RMS
4 x 280 Watts RMS
2 x 900 Watts RMS
2 Ohm
15K Ohms
0,2V
0,2V
< 0,9 % THD
> 90 dB
70 Hz to 700 Hz
40 Hz to 700 Hz
10 Hz to 22 KHz
9,5 to 15V
65A
65A
130A
130A
40x240x365 mm
3,0 Kg
3,0 Kg
MAIO/2013 - R3
