Parts And Accessories - Advent AW820 Installation And Operating Instructions Manual

O+--+---G
K L M NJ I
Front
BCD
E
F
.0
o.
H
Bottom~

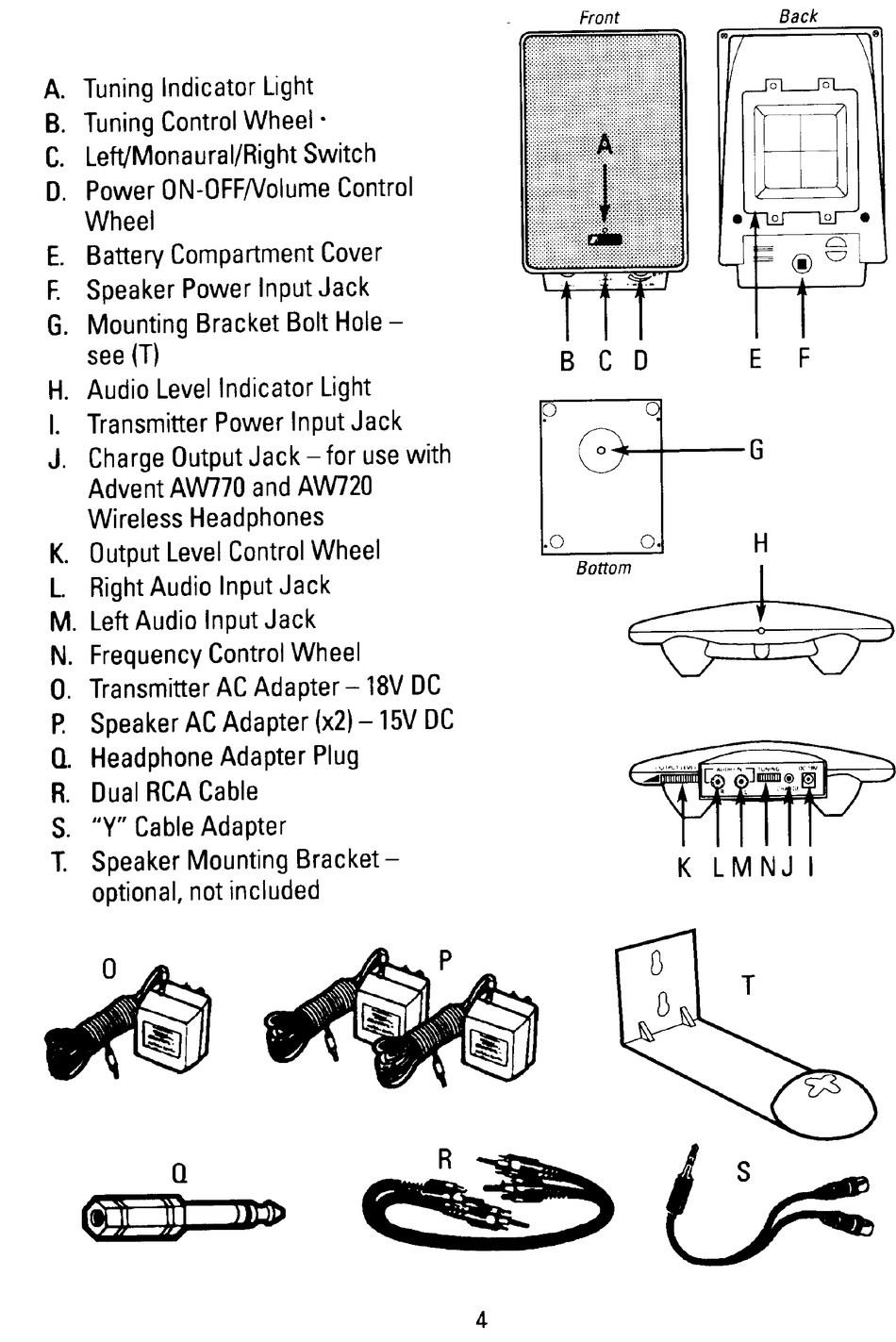

A. Tuning Indicator Light
B. Tuning Control Wheel'
C. Left/Monaural/Right Switch
D. Power ON-OFFNolume Control
Wheel
E. Battery Compartment Cover
F.
Speaker Power Input Jack
G. Mounting Bracket Bolt Hole-
see
(T)
H. Audio Level Indicator Light
I. Transmitter Power Input Jack
J. Charge Output Jack - for use with
Advent AW770 and AW720
Wireless Headphones
K. Output Level Control Wheel
L. Right Audio Input Jack
M. Left Audio Input Jack
N. Frequency Control Wheel
O. Transmitter AC Adapter -18V DC
P.
Speaker AC Adapter (x2) -15V DC
Q.
Headphone Adapter Plug
R. Dual RCA Cable
S. "y" Cable Adapter
T. Speaker Mounting Bracket-
optional, not included
