Summary of Contents for Advent ASP21BK15

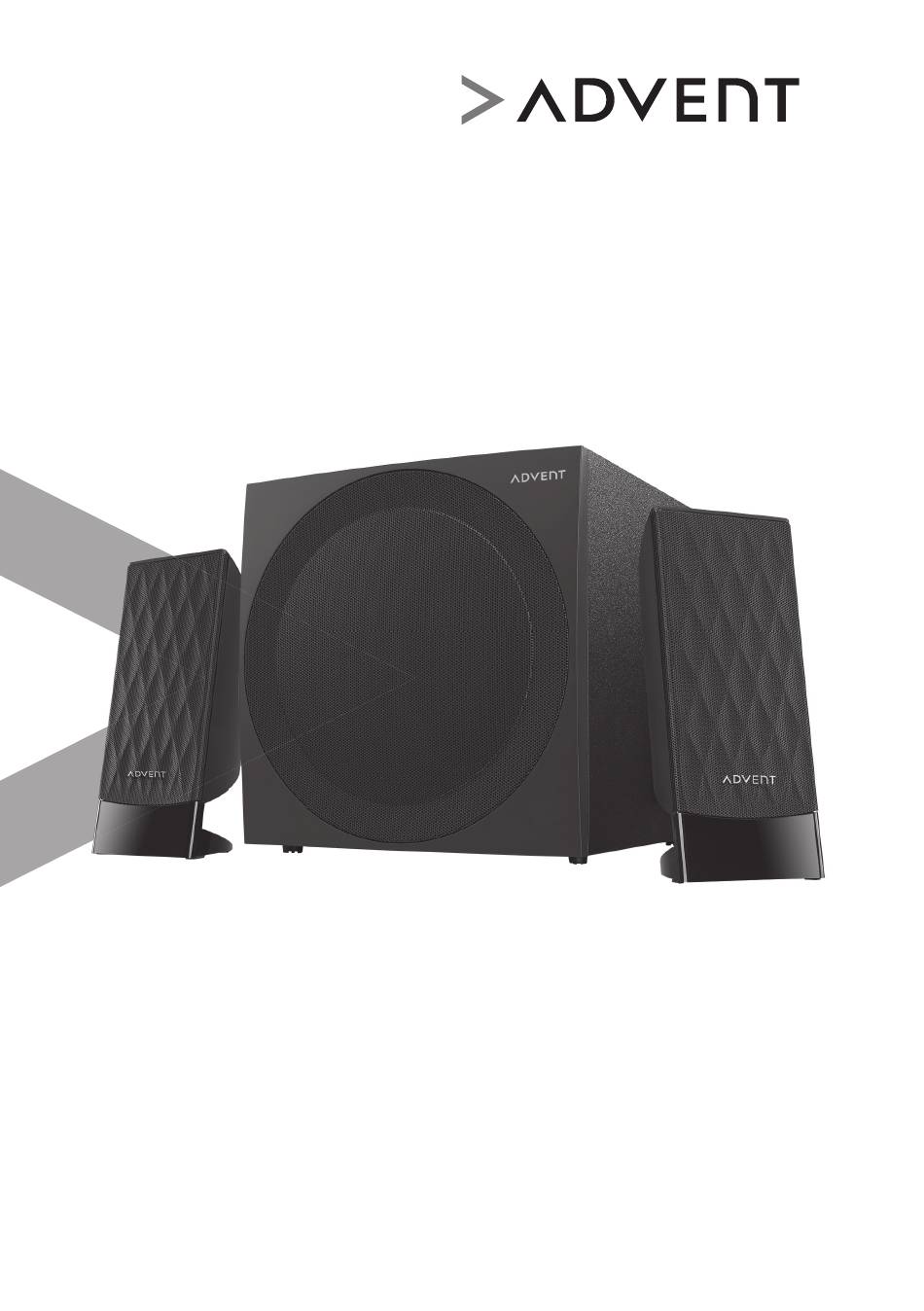

- Page 1 Instruction Manual PC Speakers Model No. ASP21BK15...
-
Page 3: Table Of Contents
Contents Safety Warnings ............................. 4 Unpacking .............................. 5 Product Overview ..........................6 Front View .....................................6 Side View ....................................6 Connections ............................7 Connecting Speakers ...............................7 Connecting the Power ..............................7 Connecting Audio Device ...............................7 General Operation ..........................8 Powering ON/OFF ................................8 Adjusting the Volume...............................8 Adjusting the Bass ................................8 Maintenance ............................ -
Page 4: Safety Warnings
Safety Warnings Read all instructions before using these speakers and keep them for future reference. • Use only voltage specified on the rating label of the speaker. • Do not place speakers close to heat sources, such as radiators and heaters. •... -
Page 5: Unpacking
Thank you for purchasing your new Speakers. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 6: Product Overview
Product Overview Front View 1. Speakers 2. Subwoofer Side View VOLUME BASS AUDIO INPUT AUDIO OUTPUT ~ AC IN 1. VOLUME +/– Dial 5. Audio Output Socket (L/R) Adjust the volume. L - Connects to the left speaker, R - Connects to the right speaker. 2. -
Page 7: Connections
Connections Ensure all system and devices are turned off before connecting any cables. Connecting Speakers Connect the speaker cables at the back of the speakers to the AUDIO OUTPUT (L/R) sockets at the side of the subwoofer. VOLUME BASS AUDIO INPUT AUDIO OUTPUT ~ AC IN Connecting the Power... -
Page 8: General Operation
General Operation Powering ON/OFF When you first connect the unit to the mains socket, the unit will be in OFF mode. Press the ON/OFF button to switch the unit to ON mode. The Power LED indicator will • light up green. Press the ON/OFF button to switch the unit to OFF mode. -
Page 9: Maintenance
Maintenance Ensure the unit is fully unplugged from the computer before cleaning. • To clean the unit, wipe the case with a slightly moist, lint-free cloth. • Do not use any cleaning fluids containing alcohol, ammonia or abrasives. • Do not spray aerosol at or near the unit. Hints and Tips If a problem does occur, it may often be due to something very minor. -
Page 10: Specifications
Specifications Model ASP21BK15 Power Supply AC 230-240V ~50Hz Output Power Subwoofer 14 W Speakers 12W x 2 ECO Standby Power < 0.5W Consumption Dimension (W) x (D) x (H) Subwoofer 230 x 230 x 225 mm Speaker (1 pc) 85 x 100 x 196 mm... - Page 12 For more information about where you can drop off your waste for recycling, please contact your local authority, or where you purchased your product. DSG Retail Ltd. (co. no. 504877) 1 Portal Way, London, W3 6RS, UK IB-ASP21BK15-150929V3...
