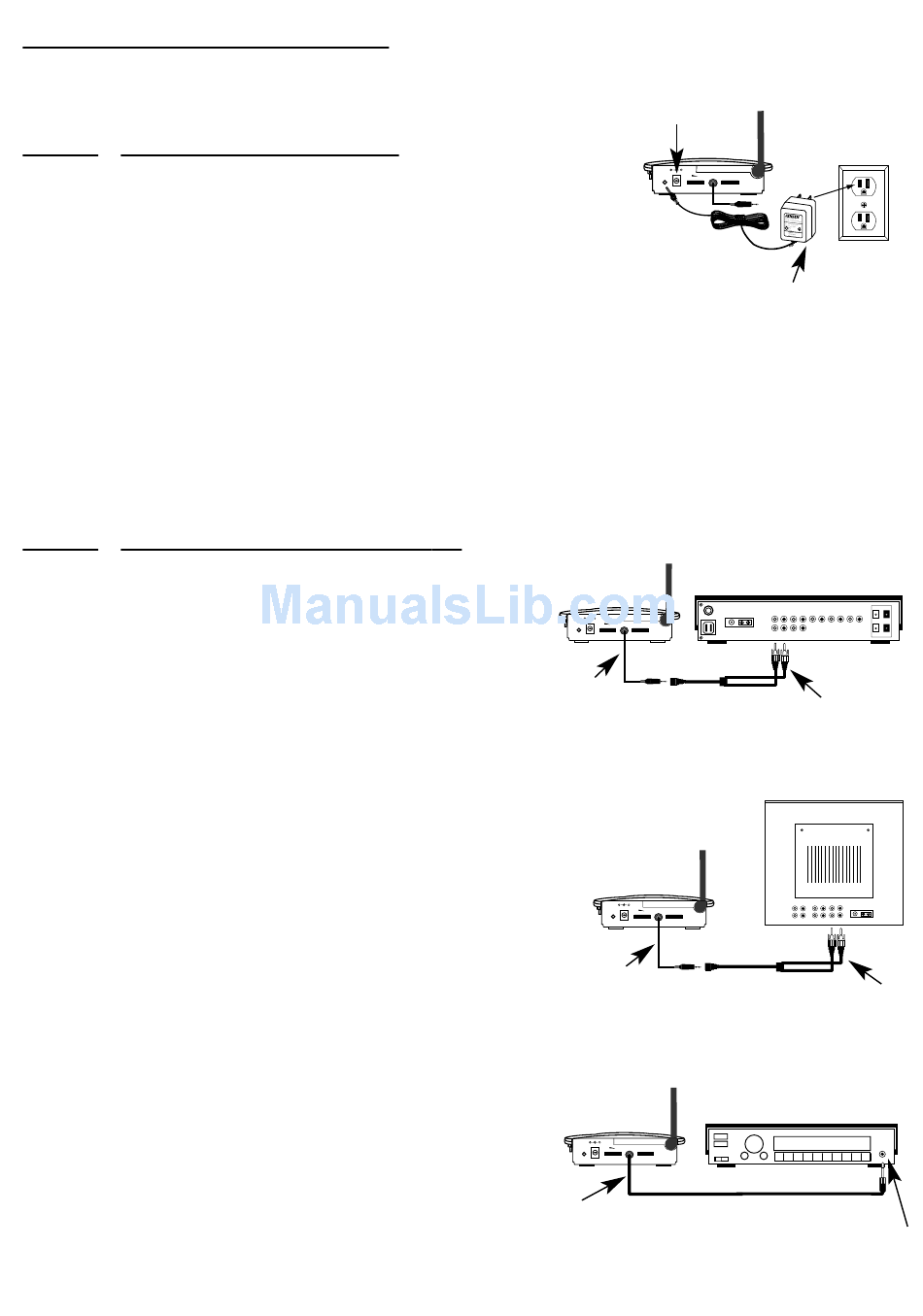

CONNECT THE TRANSMITTER

Connect the transmitter as follows:
Step 1 Power the Transmitter
1. Insert the power cord from Transmitter AC Adapter
(O) into the Transmitter Power Input Jack (J).
2. Plug the Transmitter AC Adapter (O) into
any standard wall outlet.
Note: Be sure to use the AC Adapter rated 12V DC 100 mA.
Note: There is no transmitter ON/OFF switch. The transmitter is designed to be left
plugged in and powered at all times. If you will not be using the AW820 for an extended
period of time, you may wish to unplug the Transmitter AC Adapter.
Step 2 Connect to an Audio Source
O 1 C
PTION ONNECTING TO A
1. Connect the mini plug on the end of the
Audio Input Cable (L) to the mini jack on
the "Y" Cable Adapter (Q).
2. Connect the dual RCA plugs on the other
end of the "Y" Cable Adapter (Q) to the
RCA-type audio outputs of a stereo
receiver/amp or other audio source.
O 2 C
PTION ONNECTING TO A
1. Connect the mini plug on the end of the
Audio Input Cable (L) to the mini jack on
the "Y" Cable Adapter (Q).
2. Connect the dual RCA plugs on the other
end of the "Y" Cable Adapter (Q) to the
RCA-type audio outputs of a TV.
O 3 C
PTION ONNECTING TO A
1. Plug the mini plug on the end of the Audio
Input Cable (L) into the headphone jack.
As needed, use the Headphone Adapter
Plug (R) to convert the (3.5mm) mini plug
to a full-size 1/4" headphone plug.
S R
TEREO ECEIVER
T
ELEVISION
H J
EADPHONE ACK
4
Transmitter Power
Input Jack (J)
DC 12V
FREQ.
CHARGE LEVEL ADJUST
Transmitter AC Adapter (O)
Transmitter
Antenna
Fuse
DC 12V
FREQ.
CHARGE
LEVEL ADJUST
300 75
Audio
Output Jack
Audio
Input Cable (L) Y Adapter Cable (Q)
Transmitter
DC 12V
FREQ.
CHARGE
LEVEL ADJUST
Audio
Output Jack
Audio
Input Cable (L) Y Adapter Cable (Q)
Transmitter
DC 12V
FREQ.
CHARGE LEVEL ADJUST
ON OFF
Audio
Input Cable (L)
LR 98553
Stereo Receiver
Tape Tape Spkr
Mon 1 Mon 2 Phono CD Aux A
IN
Spkr
L R L R L R B
OUT
L R L R L
TV
Video 1 Video 2 Stereo
IN Antenna
OUT
L R L R L R
Stereo Receiver
Headphone
Headphone
Output Jack
Headphone
Adapter Plug (R)
