ADJUST THE TRANSMITTER

Adjust the transmitter as follows.
Step 1 Turn ON your Audio Source
can hear sound coming from the source.
Step 2 Pivot the Antenna (N) to the upright, vertical position.

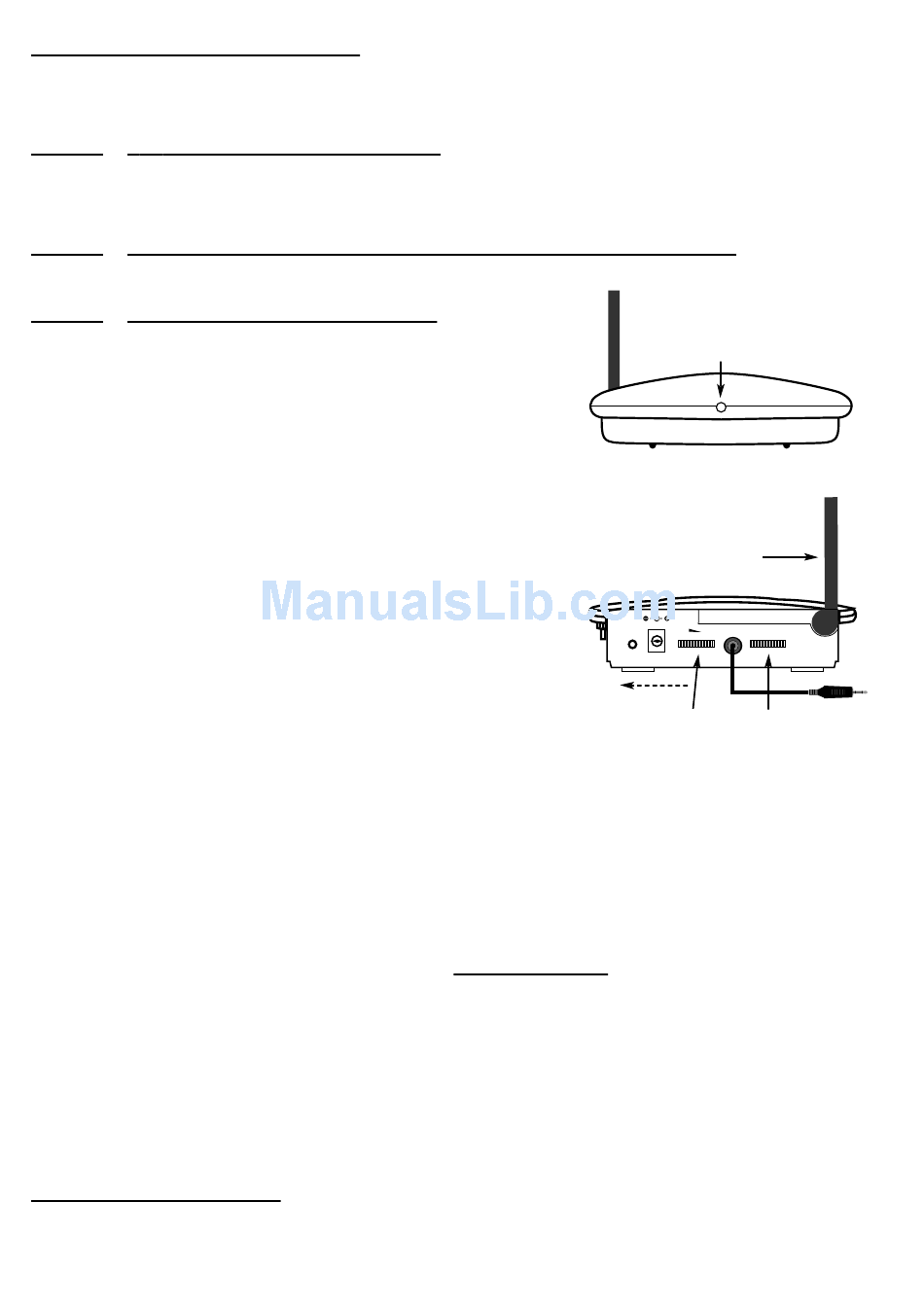

Step 3 Set the Transmitter "Level"
1. Set the Frequency Control Wheel (M)
to its midpoint.
2. Turn the Output Level Control Wheel (K)
all the way to the left (your left when
looking at the transmitter controls),
as shown.
3. Check status of Audio Level Indicator Light (H).
If it flickers intermittently (about half the time),
proceed to TUNE THE SPEAKERS.
4. If Audio Level Indicator Light is on solid red
or flickering very rapidly, turn Output Level
Control Wheel slowly back to the right until
light flickers intermittently.
Note: If the light does not flicker, confirm secure connection of the AC Adapter. If
the light still does not flicker, confirm secure connection to the audio source output.
If there is still no response, leave the Output Level Control Wheel completely to the
left (as shown) and see the following Note.
Note: If the transmitter is connected to a variable output (i.e. headphone jack, TV
audio out) on the audio source, leave the Output Level Control Wheel turned all the
way to the left (as shown) and adjust the volume on the audio source up or down
as necessary to make the Audio Level Indicator Light flicker intermittently. If you
are unclear as to the kind of output (variable or fixed) you are using, please see
MORE HELPFUL INFORMATION on following page.
TUNE THE SPEAKERS
Adjust the speakers as follows:
(i.e. Stereo Receiver, TV, etc.) so that you
CHARGE
Output Level
Control Wheel (K)
(Turn to Left)
6
Audio Level
Indicator Light (H)
Antenna (N)
DC 12V
FREQ.
LEVEL ADJUST
Frequency
Control Wheel (M)
