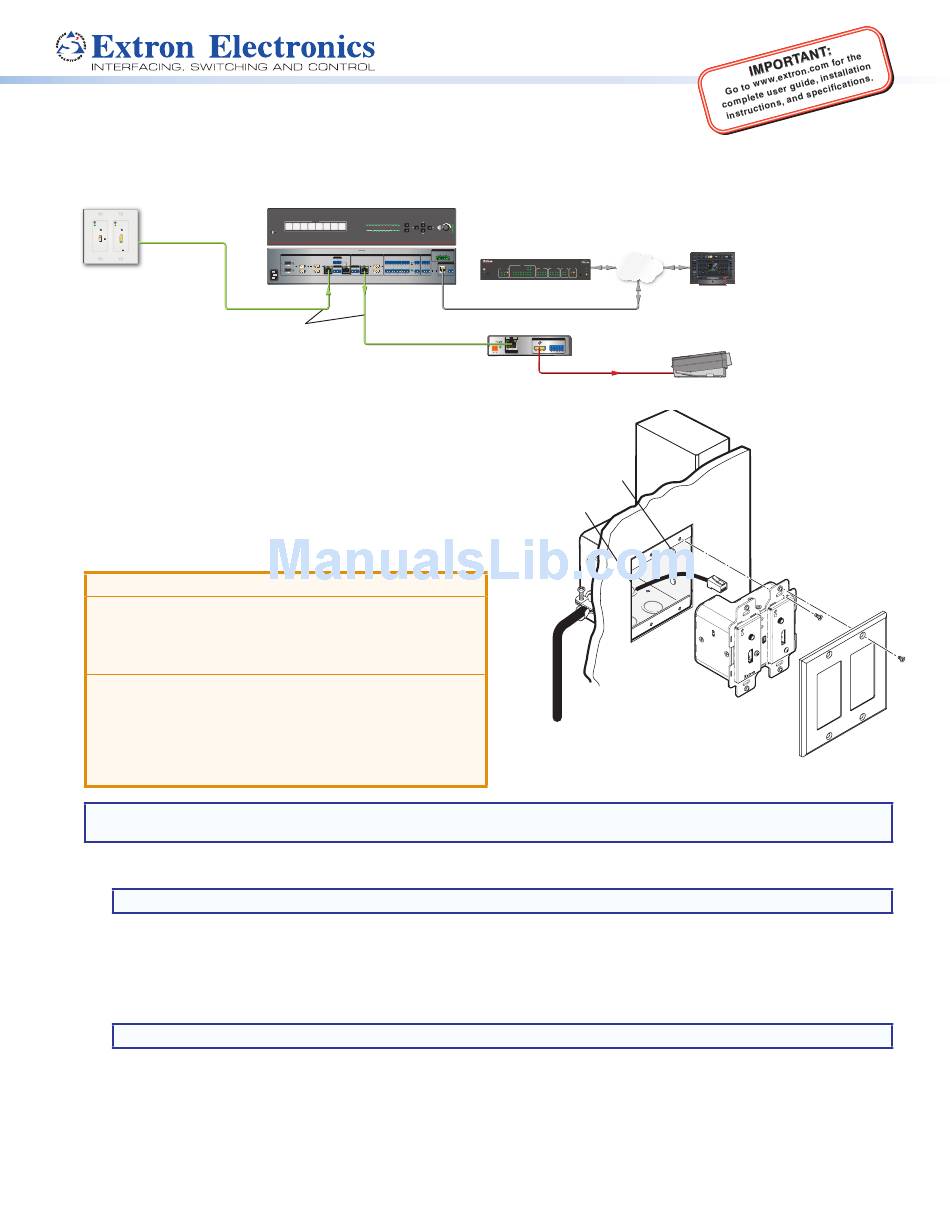

DTP T DWP 4K D Series • Setup Guide
This setup guide provides instructions for an experienced installer to set up and operate the Extron DTP T DWP 4K D series of
twisted pair (TP) wallplate extenders.

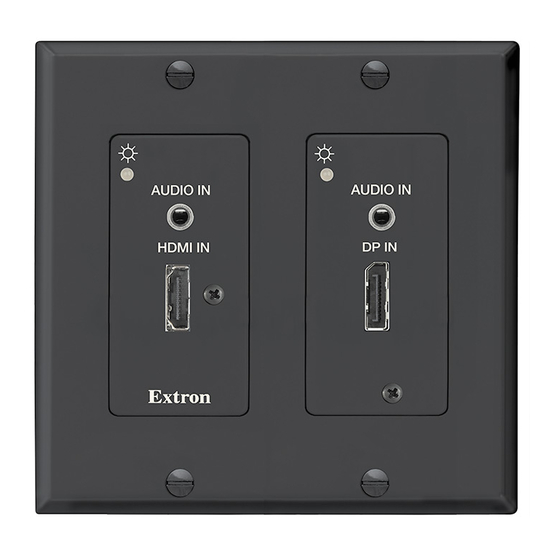

AUDIO IN AUDIO IN
HDMI IN DP IN
Extron
Extron
DTP T DWP 4K 232 D Tx
Transmitter
XTP DTP 24 Cable
230'
Installation
Step 1 — Disconnect Power
Disconnect all equipment power sources.
Step 2 — Prepare the Mounting Surface
ATTENTION:
•
Installation and service must be performed by
authorized personnel.
•
L'installation et l'entretien doivent être effectués par le
personnel autorisé uniquement.
•
The unit must be installed in accordance with the
National Electrical Code and with local electrical and
safety codes.
•
L'unité doit être installée conformément au National
Electric Code et aux normes électriques et de sécurité
locales.
NOTE: Use a UL-listed junction box with a depth of at least 3.0 inches (7.6 cm). Alternatively, the included mud ring (MR
200) can be used. For more information, see the full product user guide at www.extron.com.
Place the junction box against the installation surface and mark the opening guidelines.
a.
TIP: Use a level to mark the opening.
Cut out the material from the marked area.
b.
Secure the junction box to the wall stud with 10-penny nails, #8 screws, or #10 screws, leaving the front edge flush with the
c.
surface.
Run all required cables (see steps 3, 4, and 5) and secure them with cable clamps.
d.
TIP: In order to fit the unit in the junction box, do not install boots on TP cables and RJ-45 connectors.
INPUTS INPUTS OUTPUTS
MENU
1 2 3 4 5 6 7 8
SIGNAL
1 2 3 4 5 6 7 8 A B C
CONFIG HDCP
VOLUME
ENTER
Extron
SCALING PRESENTATION SWITCHER
IN1608 SA
AMPLIFIED OUTPUT
2x25W(8Ω)/2x50W(4Ω)
L R
INPUTS OUTPUTS AUDIO INPUTS OUTPUTS
OVER DTP
RS-232 IR L 1 R L 3 R L 5 R 1 2
1 CLASS 2 WIRING
3 5 C A REMOTE
7 8
Tx Rx G Tx Rx
CONFIGURABLE SIG LINK SIG LINK SIG LINK +48V LAN
OVER DTP OVER DTP MIC/LINE VARIABLE
100-240V ~ -- A MAX 2 HDMI HDMI HDMI RESET
RS-232 IR RS-232 IR L 2 R L 4 R L 6 R 2 L R
4 6 B
+48V
DTP IN Tx Rx G Tx Rx DTP IN Tx Rx G Tx Rx DTP OUT
50/60 Hz
IN1608
DTP HDMI 230 Rx
IN1608
Network
IPCP 505
COM
RTS
RS-232 SWITCHED IR/S RELAY FLEX eBUS 100
12VDC I/O
1 2 LIMIT CTS 1 2 3 4 1 2 3 4 1 2 ACT LIMIT
LINK
R TX TX
Tx Rx G IR
ACT
RX RX
3 4 OVER 1 2 3 4 5 6 7 8 5 6 7 8 5 6 7 8 3 4 OVER
IPCP 505
Ethernet
SIG LINK
OUTPUTS
POWER
AUDIO
12V
L R
0.7A MAX
DTP IN
HDMI
Wall Stud
Screws or
Nails
Wall opening is
flush with edge of box.
Cable
Clamp
Signal Output
Cable
TLP 1000TV
Projector
IN
D IO
SW A U
TO
A U
C P
H D
1
H D
IN
B T D P
IN
D IO
A U
D T
P
G
IN N FI
M I C O
H D
Extron
DTP T DWP 4K 332 D
Decorator-Style Faceplate
