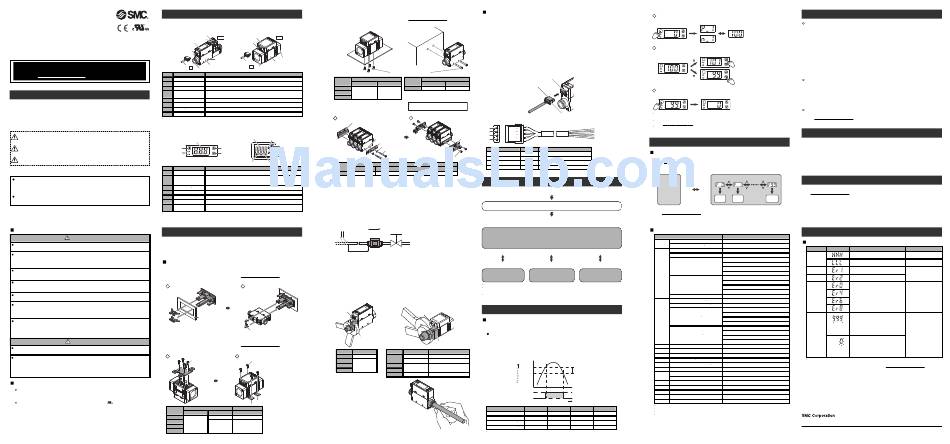

Before Use
Summary of Product parts

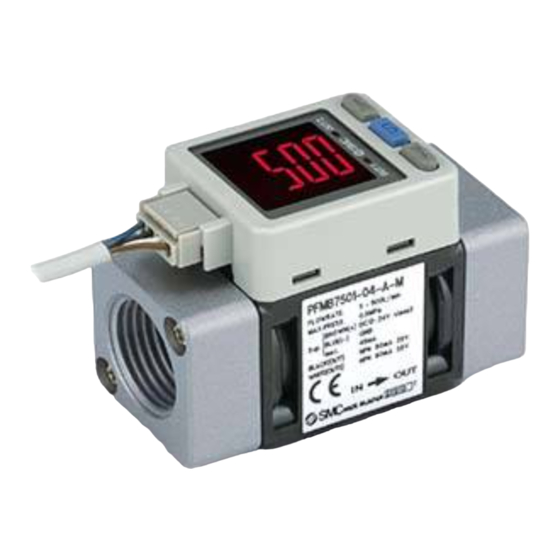

Digital Flow Switch
Body
PFMB7201/7501/7102/7202
Thank you for purchasing an SMC PFMB7 series Digital Flow Switch.
Please read this manual carefully before operating the product and make sure you
understand its capabilities and limitations. Please keep this manual handy for
B
future reference.
To obtain the operation manual about this product and C
IN
control unit, please refer to the SMC website
Symbol Name
(URL http://www.smcworld.com) or contact SMC directly.
A Display
B Connector
C Lead wire with connector
Safety Instructions
D Piping port
E Body
These safety instructions are intended to prevent hazardous situations and/or
F Through hole
equipment damage.
G Lock ring
These instructions indicate the level of potential hazard with the labels of
H Flow adjustment valve
"Caution", "Warning" or "Danger". They are all important notes for safety and must
: The table lists the parts when a flow adjusting valve is included.
be followed in addition to International standards (ISO/IEC) and other safety
regulations.
Display
Caution:
CAUTION indicates a hazard with a low level of risk which, if
not avoided, could result in minor or moderate injury.
Warning: WARNING indicates a hazard with a medium level of risk
L
which, if not avoided, could result in death or serious injury.
J
Danger: DANGER indicates a hazard with a high level of risk which,
if not avoided, will result in death or serious injury.
Symbol Name
Operator
I LED display
The operation manual is intended for those who have knowledge of machinery
J Indicator LED
using pneumatic equipment, and have sufficient knowledge of assembly,
operation and maintenance of such equipment. Only those persons are
K UP (△) button
allowed to perform assembly, operation and maintenance. L SET (S) button
Read and understand the operation manual carefully before assembling,
M DOWN (▽) button
operating or providing maintenance to the product.
N Unit display
Reference condition
O
indicator
: When the reversed display is used, the function of the △ and ▽ buttons is reversed.
Safety Instructions
Mounting and Installation
Warning
Mounting
Do not disassemble, modify (including changing the printed circuit board) or repair. •Never mount the product in a place where it will be used as a mechanical support.
An injury or failure can result.
•Mount the product so that the fluid flows in the direction indicated by the arrow on the side
of the body.
Do not operate the product outside of the specifications.
Do not use for flammable or harmful fluids.
Installation
Fire, malfunction or damage to the product can result.
Verify the specifications before use.
Panel mounting (Only PFMB7201)
Do not operate in an atmosphere containing flammable, explosive or corrosive gas.
•Refer to the diagram and table below for mounting details.
Fire, explosionor corrosion can result.
•Refer to the dimension from SMC website (URL http://www.smcworld.com) for panel
This product is not designed to be explosion proof.
thickness and panel mount cut-out dimensions.
Do not use the product for flammable fluid.
Fire or explosion can result. 1
Only air, N , are applicable.
2
Do not use the product in a place where static electricity is a problem.
Otherwise it can cause failure or malfunction of the system. Insert
If using the product in an interlocking circuit:
•Provide a double interlocking system, for example a mechanical system
•Check the product regularly for proper operation
Otherwise malfunction can result, causing an accident.
The following instructions must be followed during maintenance:
•Turn off the power supply
•Stop the air supply, exhaust the residual pressure and verify that the air is released before performing
maintenance work
Otherwise an injury can result.
Bracket mounting
Caution
•Refer to the diagram and table below for mounting details.
•Refer to the dimension from SMC website (URL http://www.smcworld.com) for bracket
Do not touch the terminals and connectors while the power is on. thickness and mounting hole dimensions.
Otherwise electric shock, malfunction or damage to the product can result.
1
After maintenance is complete, perform appropriate functional inspections and leak tests.
Stop operation if the equipment does not function properly or there is a leakage of fluid.
When leakage occurs from parts other than the piping, the product might be faulty.
Disconnect the power supply and stop the fluid supply.
Do not apply fluid under leaking conditions.
Safety cannot be assured in the case of unexpected malfunction.
NOTE
The direct current power supply used should be UL approved as follows.
Circuit (class 2) of maximum 30 Vrms (42.4 V peak) or less, with UL 1310
class 2 power supply unit or UL 1585 class 2 transformer.
The product is a UL approved product only if it has a mark on the body.
Model
Mounting screws
PFMB7201
PFMB7501
Accessory
PFMB7102
PFMB7102
Direct mounting
•Refer to the diagram and table below for mounting details.
•Refer to the dimension from SMC website (URL http://www.smcworld.com) for mounting
hole size.
PFMB7201 PFMB7501/7102/7202
H
OUT
OUT A
G
A B
D
D
F
C
E
E
D
IN
D
Description
See below. Direct mounting
Model
Connector for electrical connections. Screw
Lead wire for power supply and outputs. PFMB7501
Self tapping screws
(
For piping connections. Connected to the fluid inlet at IN and to the fluid outlet at PFMB7102 Nominal size:
OUT.
3.0 x 4 pcs.
PFMB7102
The body of the product.
DIN rail mounting (Only PFMB7201)
Used to mount the product on a DIN rail or directly to a panel.
•Refer to the diagram and table below for
Used to lock the flow adjustment valve.
mounting details.
Orifice mechanism to adjust the flow rate.
1
Bracket (Tapped)
PFMB7201 PFMB7501/7102/7202
J
I
I
K
K
S S
L
M
M
O N
Bracket
Model
Description
Screw
Displays the flow, the status of setting mode and error indication. (2-colour display)
PFMB7201 Joint screws
Displays the output status of OUT1 and OUT2.
When the accumulated pulse output mode is selected, the LED will turn OFF. Piping
LED is ON when the output is ON.
•Never mount the product upside down.
Selects the mode and increases the ON/OFF set value.
•The straight piping length shall be 8 cm or longer.
Press this button to change the mode and to set a value.
Otherwise, if a straight section of piping is not installed, the accuracy varies by
Selects the mode and decreases the ON/OFF set value.
approximately ± 2%F.S.
Indicates the unit currently selected.
•Avoid sudden changes in the piping size on the IN side of the product.
Indicates the reference condition selected. LED is ON (red) when standard •Do not release the OUT side piping port of the product directly to the atmosphere
condition is selected. without the piping connected.
If the product is used with the piping port released to atmosphere, the accuracy may vary.
IN side
Flow direction
8 cm or longer
Piping for the metal attachment
•Tighten to the specified torque. Refer to the table below for the required torque values.
•Use a suitable spanner for the appropriate torque. Do not use a spanner 40 cm or
longer.
•If the tightening torque is exceeded, the product can be broken.
If the tightening torque is insufficient, the fitting may become loose.
•Avoid any sealing tape getting inside the flow path.
•Ensure there is no leakage after piping.
2
•When mounting the fitting, a spanner should be used on the metal part (attachment) of
the fitting only.
Holding other parts of the product with a spanner may damage the product.
Specifically, make sure that the spanner does not damage the connector.
Caution
Panel
Bracket
Attachment
Model Required torque
2 PFMB7201 12 to 14 Nm
PFMB7501
Mounting screws Screw is prepared by customer.
PFMB7102 28 to 30 Nm
PFMB7202
Piping for the One-touch fitting
•Insert the tube all the way into the fitting
so that it cannot be pulled out.
•Insertion with excessive force can cause
damage.
•Ensure there is no leakage after piping.
•Use the product within the specified
operating pressure and temperature range.
Mounting bracket Mounting to equipment
Tightening torque Screw
0.45 to 0.55 Nm M3 screws (4 pcs.)
0.5 to 0.7 Nm M4 screws (4 pcs.)
Wiring
Connection
•Connections should only be made with the power supply turned off.
•Use a separate route for the product wiring and any power or high voltage wiring.
Otherwise, malfunction may result due to noise.
•Ensure that the FG terminal is connected to ground when using a commercially
available switch-mode power supply. When a switch-mode power supply is connected
to the product, switching noise will be superimposed and the product specification can
no longer be met. This can be prevented by inserting a noise filter, such as a line noise
filter and ferrite core, between the switch-mode power supply and the product or by
using a series power supply instead of a switch-mode power supply.
Connecting/Disconnecting
•When mounting the connector, insert it straight into the socket, holding the lever and
connector body, and push the connector until the lever hooks into the housing, and locks.
•When removing the connector, press down the lever to release the hook from the
Screw is prepared by customer.
housing and pull the connector straight out.
Direct mounting Socket
Model
Tightening torque Screw Tightening torque
Lever
PFMB7201 M3 screws (2 pcs.) 0.35 to 0.45 Nm
)
0.5 to 0.7 Nm
DIN rail is prepared by customer.
DIN rail is not suitable for port size F02 (G1/4).
2
Connector pin numbers (lead wire)
1
DIN rail 2
mounting
3
bracket
Mounting hole 4
Bracket (Mounting hole)
Spring washers
Connector pin numbers Wire colour
Joint screws
1 Brown DC(+)
DIN rail mounting screws
2 White OUT2/Analogue output/External input
3 Black OUT1
DIN rail mounting bracket
4 Blue DC(-)
Tightening torque Screw Tightening torque
0.35 to 0.45 Nm DIN rail mounting screws 0.35 to 0.45 Nm
Outline of settings
Power is supplied
The output will not operate for 3 seconds after supplying power.
The identification code of the product is displayed.
OUT side
[Measurement mode]
Measurement mode is the condition where the flow is detected and displayed, and
the switch function is operating. This is the basic mode; other modes should be
selected for set-point changes and other function settings.
Restrictor
Press the
S button
once.
Flow setting Function setting
(3 step setting mode) (Function selection mode)
: The outputs will continue to operate during setting.
: If a button operation is not performed for 30 seconds during the setting, the display will flash.
(This is to prevent the setting from remaining incomplete if, for instance, an operator were to leave during setting)
: 3 step setting mode and Function selection mode are reflected on each other.
Flow Setting (set value only) of OUT1 · OUT2
Caution
3 step setting mode
In this mode, only the set values can be input, in just 3 steps.
Default settings
The default settings are shown below.
Attachment When the flow exceeds the set value [P_1], the switch will be turned ON.
When the flow falls below the set value by the amount of hysteresis [H_1] or more, the
switch will turn OFF.
Model Nominal thread size Width across flats of attachment
If the operation shown in the diagram below is acceptable, then keep these settings.
Rc1/4, NPT1/4 17 mm For more detailed settings, set each function in the function selection mode.
PFMB7201
G1/4 21 mm
PFMB7501 Set value
1/2 30 mm
[P_1]
PFMB7102
PFMB7202 3/4 35 mm
Switch ON
Switch OFF
Item PFMB7201
[P_1] Set value of OUT1 100
[H_1] Hysteresis of OUT1 10
[P_2] Set value of OUT2 100
[H_2] Hysteresis of OUT2 10
: Only available for models with switch outputs for both OUT1 and OUT2.
<Operation>
(The illustration shows PFMB7201, when not using the reversed display function.)
1
Press the S button once in measurement mode.
[P_1] or [n_1] and [the current set value] are displayed in turn.
Displayed
in turn
S S
S S
Set value
2 Press the △ or ▽ button to change the set value.
The △ button is to increase and the ▽ button is to decrease the set value.
S S
S S
S S
3 Press the S button to complete the setting.
Return to measurement mode.
S S S S S S
Connector body
: For models with switch outputs for both OUT1 and OUT2, [P_2] or [n_2] will be displayed too.
Set as above.
: If a mode other than Hysteresis Mode is selected, refer to the operation manual from SMC website
(URL http://www.smcworld.com) or contact SMC.
: Note that the set value and hysteresis settings are limited by each other.
Function Setting
Description
Function selection mode
In measurement mode, press the S button for 2 seconds or longer, to display [F 0].
The [F ] indicates the mode for changing each Function Setting.
Press the S button for 2 seconds or longer in function selection mode to return to
measurement mode.
Function selection mode
Measurement
mode S S
Press the S button
for 2 seconds Setting
or longer. F0
To change setting, refer to the operation manual from SMC website
(URL http://www.smcworld.com) or contact SMC.
Default settings
Item
[ r EF] Reference condition [Anr ] Standard condition
[F 0]
[ Un i] Unit selection function 1 [ L] L/min
[ oU1] Output mode of OUT1 [HYS] Hysteresis mode
Press the
[ 1ot] Switch operation of OUT1 [1_P] Normal output
S button for
[ 100] 100 L/min (PFMB7201)
2 seconds
or longer. [ 250] 250 L/min (PFMB7501)
[ P_1] Set value of OUT1
[ 500] 500 L/min (PFMB7102)
Other functions
[F 1] [1000] 1000 L/min (PFMB7202)
[ 10] 10 L/min (PFMB7201)
[ 25] 25 L/min (PFMB7501)
[ H_1] Hysteresis of OUT1
[ 50] 50 L/min (PFMB7102)
[ 100] 100 L/min (PFMB7202)
[ CoL] Display colour of OUT1 [SoG] Green when ON, Red when OFF
[ oU2] Output mode of OUT2 2 [HYS] Hysteresis mode
[ 2ot] Switch operation of OUT2 2 [2_P] Normal output
[ 100] 100 L/min (PFMB7201)
[ 250] 250 L/min (PFMB7501)
[ P_2] Set value of OUT2 2
[ 500] 500 L/min (PFMB7102)
[F 2]
[1000] 1000 L/min (PFMB7202)
[ 10] 10 L/min (PFMB7201)
[ 25] 25 L/min (PFMB7501)
[ H_2] Hysteresis of OUT2 2
[ 50] 50 L/min (PFMB7102)
[ 100] 100 L/min (PFMB7202)
[F 3] [ r ES] Response time [1.0] 1 second
[F10] [ FLo] Display mode [ inS] Display instantaneous flow
[F13] [ r Ev] Reversed display mode [oFF] Unused
[F20] [ inP] External input 3 [r AC] Accumulated flow external reset
[F22] [ F rE] Setting of analogue output 4 [oFF] Variable range OFF
Hysteresis
[F30] [ SAv] Accumulated value hold [oFF] Not held
[H_1]
[ PoS] Orientation [Hor ] Horizontal mounting
[F31]
[ Pr S] Supply pressure [m id] 0.4 MPa minimum, 0.6 MPa maximum
[F80] [ dSP] Display OFF mode [ on] Display ON
[F81] [ P in] Security code [oFF] Not used
[F90] [ ALL] Setting of all functions [oFF] Not used
[F98] [ tESt] Output check [ n] Normal output
Time [s] [F99] [ in i] Reset to the default settings [oFF] Reset OFF
1: This setting is only available for models with the unit selection function.
PFMB7501 PFMB7102 PFMB7202 2: This setting is only available for models with switch outputs for both OUT1 and OUT2.
3: This setting is only available for models with the external input.
250 500 1000
4: This setting is only available for models with the analogue output.
25 50 100
250 500 1000
25 50 100
[L/min]
Other Functions
Peak/Bottom value display
The maximum (minimum) flow from when the power was supplied to this moment is
detected and updated. In peak/bottom display mode, the maximum (minimum) flow is
displayed
•For peak display, when the △ button is pressed for 1 second or longer,
[the maximum flow] and [Hi] are displayed in turn.
To release holding the display of the maximum flow, press the △ button for 1 second or
longer again to return to measurement mode.
•For bottom display, when the ▽ button is pressed for 1 second or longer,
[the minimum flow] and [Lo] are displayed in turn.
Press the △ button continuously
To release holding the display of the minimum flow, press the ▽ button for 1 second or
to keep increasing the set value.
longer again to return to measurement mode.
If the △ and ▽ buttons are pressed simultaneously for 1 second or longer while the flow
Press the ▽ button continuously
value is being held, the peak (bottom) values are reset.
to keep decreasing the set value.
Reset operation
The accumulated flow value can be reset, when displaying the accumlated flow.
The reset the accumulated flow, press the △ and ▽ buttons simultaneously for
1 second or longer.
The peak/bottom value can be reset, when displaying the peak value (bottom value).
To reset the peak/bottom value, press the △ and ▽ buttons simultaneously for 1 second
or longer.
Key lock function
To use each of these functions, refer to the operation manual from SMC website
(URL http://www.smcworld.com) or contact SMC.
Maintenance
How to reset the product after a power cut or when the power has been
unexpectedly removed
The settings of the product are retained from before the power cut or
de-energizing.
The output condition also recovers to that before power cut or de-energizing, but
may change depending on the operating environment. Therefore, check the safety
of the whole installation before operating the product.
Specifications / Dimensions
Refer to the product catalogue or operation manual from SMC website
S S S S
(URL http://www.smcworld.com) for more information about the product specifications and
dimensions.
Setting Setting
F1 F99
Troubleshooting
Default setting
Error indication
Error name Error display Description
The flow has exceeded the upper limit of the
Reduce the flow.
flow display range.
Instantaneous
flow error
Fluid is flowing in the reverse direction by at Connect the fluid flow in the
least -5% of the maximum rated flow value. correct direction.
OUT1 over The switch output (OUT1) load current has
Turn the power OFF and
current error exceeded 80 mA.
remove the cause of the over
current. Then turn the power
OUT2 over The switch output (OUT2) load current has
ON again.
current error exceeded 80 mA.
Turn the power OFF and turn
System error An internal data error has occurred.
it ON again.
The accumulated flow has exceeded the
accumulated flow range.
Accumulated
(For count up display)
flow is displayed
Reset the accumulated flow.
(Flashing)
Accumulated (Press the △ and ▽ buttons
flow error simultaneously for 1 second
or longer)
The accumulated flow has reached the set
accumulated flow value.
Accumulated
(For count down display)
flow is displayed
(Flashing)
: If the error cannot be reset after the above measures are taken, then please contact SMC.
Refer to the operation manual from SMC website (URL http://www.smcworld.com) for more
information about troubleshooting.
URL http://www.smcworld.com
Akihabara UDX 15F, 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021, JAPAN
Phone: +81 3-5207-8249 Fax: +81 3-5298-5362
Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer.
© 2011-2015 SMC Corporation All Rights Reserved
Measures
PF※※-OMP0003-A
