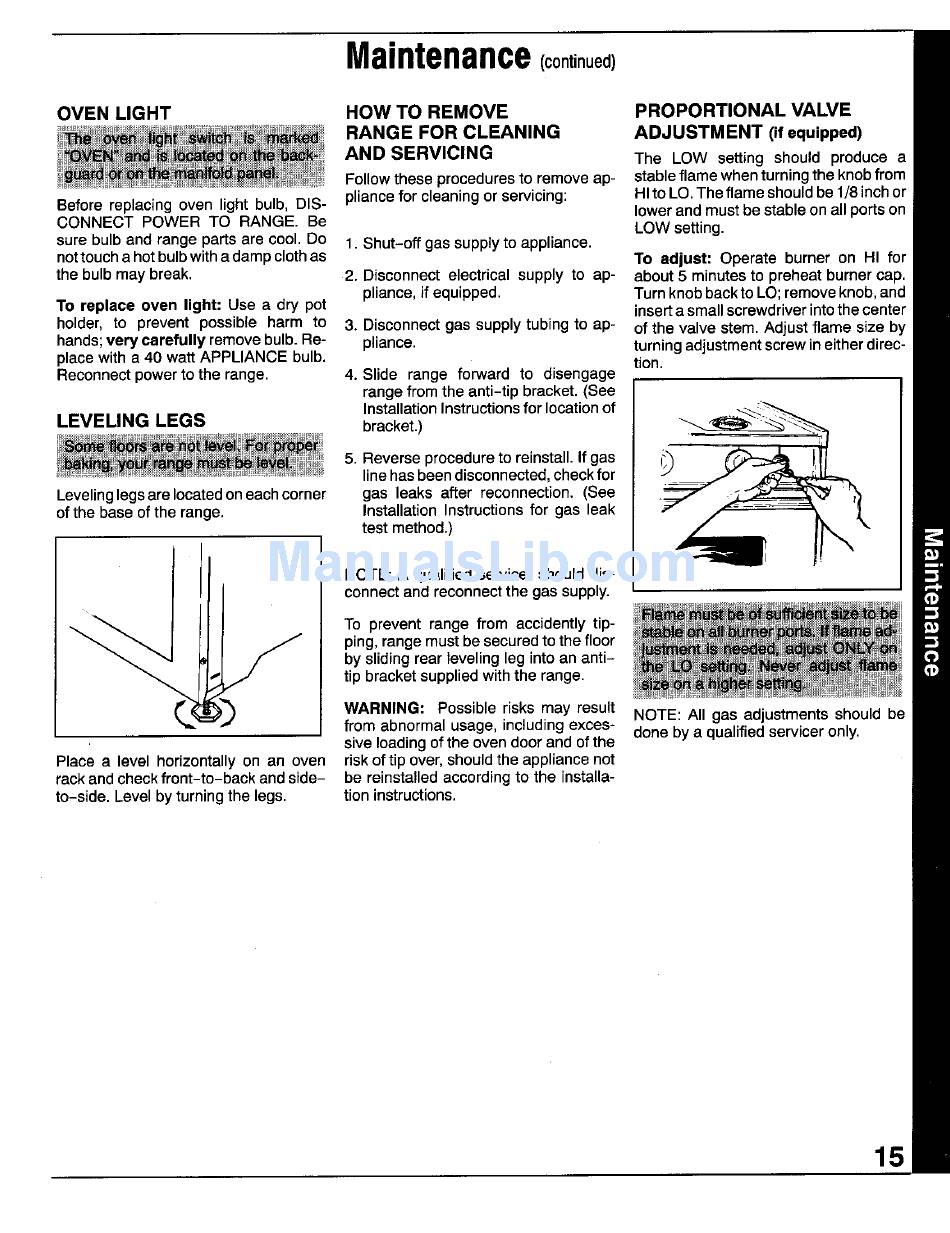

Oven Light; Leveling Legs; How To Remove Range For Cleaning; Proportional Valve Adjustment - Magic Chef 3126SRA Owner's Manual

Maintenance
(continued)
OVEN LIGHT HOW TO REMOVE PROPORTIONAL VALVE
RANGE FOR CLEANING ADJUSTMENT (if equipped)
AND SERVICING
The LOW setting should produce a
Follow these procedures to remove ap- stable flame when turning the knob from
Before replacing oven light bulb, DIS- pliance for cleaning or servicing: HI to LO. The flame should be 1/8 inch or
lower and must be stable on all ports on
CONNECT POWER TO RANGE. Be LOW setting.
sure bulb and range parts are cool. Do 1. Shut-off gas supply to appliance.
nottouchahotbulbwithadampclothas To adjust: Operate burner on HI for
the bulb may break. 2. Disconnect electrical supply to ap- about 5 minutes to preheat burner cap.
pliance, if equipped. Turn knob back to LO; remove knob, and
To replace oven light: Use a dry pot insert a small screwdriver into the center
holder, to prevent possible harm to 3. Disconnect gas supply tubing to ap- of the valve stem. Adjust flame size by
hands; very carefully remove bulb. Re- pliance, turning adjustment screw in either direc-
place with a 40 watt APPLIANCE bulb. tion.
Reconnect power tothe range. 4. Slide range forward to disengage
range from the anti-tip bracket. (See
Installation Instructions for location of
LEVELING LEGS bracket.)
5. Reverse procedure to reinstall. If gas i_
line has been disconnected, check for
y
Leveling legs are located on each corner gas leaks after reconnection. (See
of the base of the range. Installation Instructions for gas leak
test method.)
NOTE: A qualified servicer should dis-
connect and reconnect the gas supply.
% _,,_ To prevent range from accidently tip-
ping, range must be secured to the floor
by sliding rear leveling leg into an anti-
tip bracket supplied with the range.
_,_ WARNING: Possible risks may result NOTE: All gas adjustments should be
from abnormal usage, including exces- done by a qualified servicer only.
sive loading of the oven door and of the
Place a level horizontally on an oven risk of tip over, should the appliance not
rack and check front-to-back and side- be reinstalled according to the installa-
to-side. Level by turning the legs. tion instructions.
15
