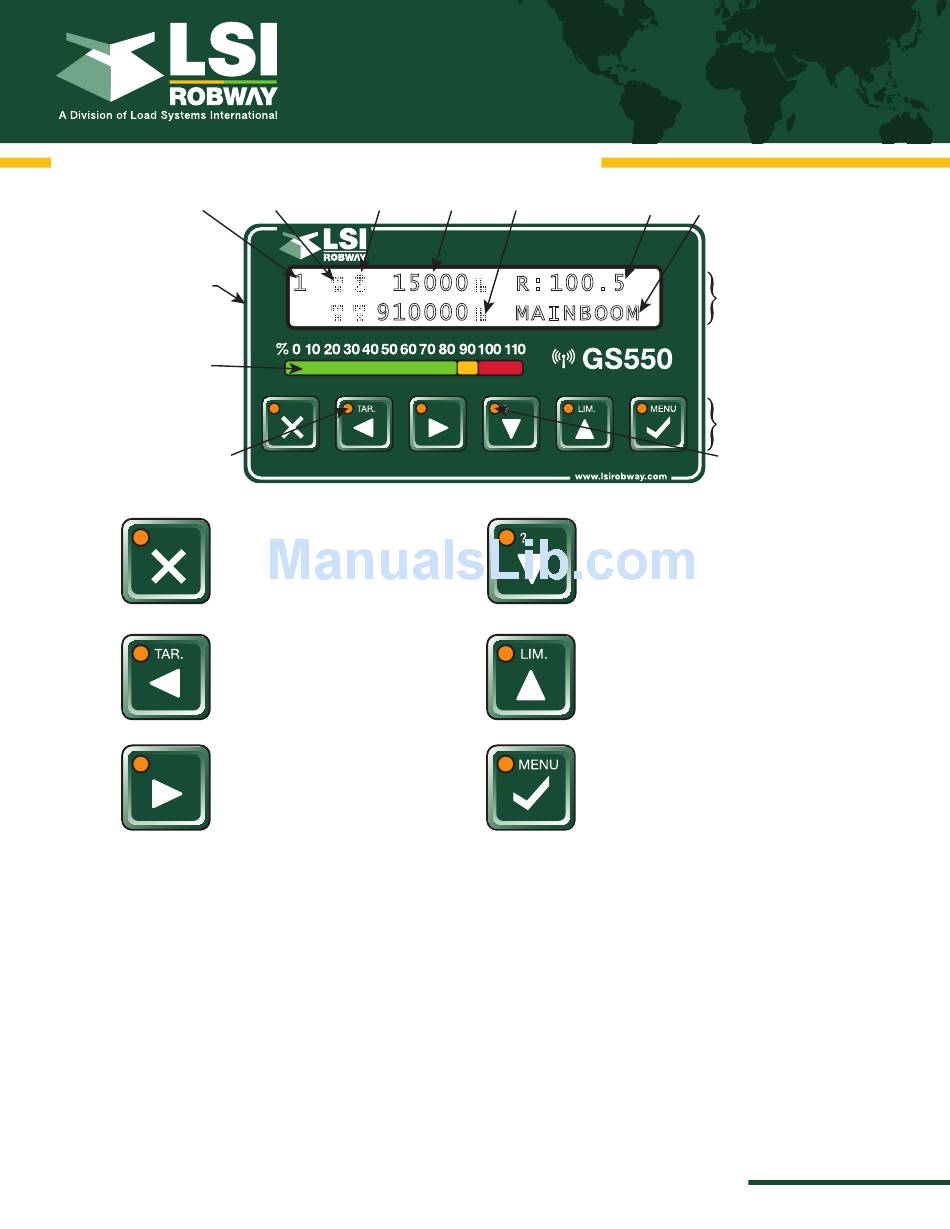

GS550 UNDERHOOK DiSplay – QUiCK REFERENCE GUiDE
Parts of line
USB Port
Bar Graph
Indicates the load
on the hoist as
a percent of the
working load limit.
Tare Warning Light
The total load is not displayed
when tare light is on.
Exit /Alarm Bypass
Use this key to exit up from menus.
This button is also used as a
temporary Alarm override.
Tare / Back
Use Tare to zero any rigging weight.
Also used to navigate through
menu screens.
Next
Used in the menu to select next item.
Alarm/Overload
To set the Alarm setpoint, do the following:
• Press LIM. Key
• Change Flashing limit reading as required.
• Press Exit to return to normal weighing mode.
basic Menu Outline:
1) Parts of Line*
3) Display Settings*
3A) Weight units*
3C) Display language*
3D) Light intensity*
3E) LCD contrast*
3F) Backlight mode*
MARKET TESTED & MARKET PROVEN
Wireless & Cable-Based Instrumentation
Hoist indicator Tare Indicator
1 15000
910000
4) Installation*
4A) Sensor List
4B) Sensor Calibration
4F) Data Logger
4G) Lockout Settings
4H) Password Settings
4I) Network Options
Load Working Load Limit
R: 10 0. 5
MA IN BOO M
Info / Down
When the orange light flashes,
press Info to see any critical alert
messages. Also used to move
numeric numbers and choices in
the menu.
Limit / Up
Set the overload alarm by pressing
this key.
Used in the menu to modify numeric
values / choices.
Menu / Enter
Access the system menus and also
used to confirm changes within.
Tare
Tare is used to eliminate rigging and slinging weights, to
do this do the following:
• Press TAR. Key
• Press Menu to select/deselect the Tare function.
• Press Exit to return to normal weighing mode.
5) System Diagnostic*
5A) System Sensors
Diagnostic*
5B) Radio Network
Diagnostic*
5D) Display Diagnostic*
*available without operator password by default
