Document Part Number GM550, Version 2004, Revision B
1

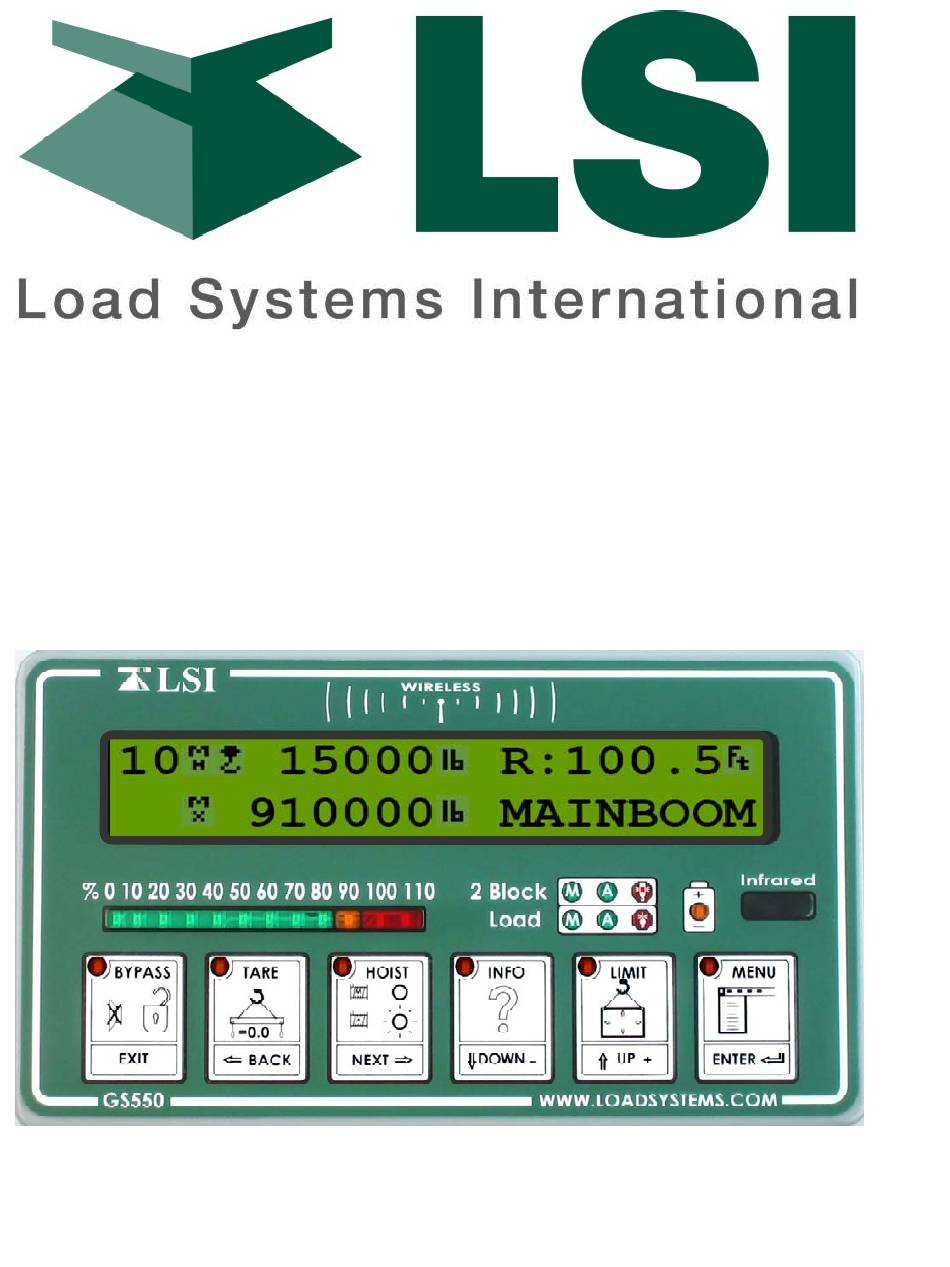

Engineered weighing solutions for crane and lifting application
User Manual
The GS550 System
12500
27000
R:24.2
Jib 30ft
