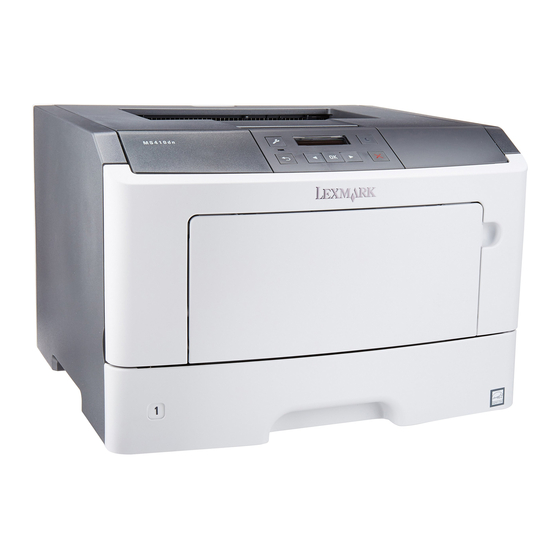

Lexmark MS410 Series Service Manual
Hide thumbs
Also See for MS410 Series:
- Service manual (271 pages) ,
- User manual (171 pages) ,
- Quick reference (13 pages)
Related Manuals for Lexmark MS410 Series
Summary of Contents for Lexmark MS410 Series
-

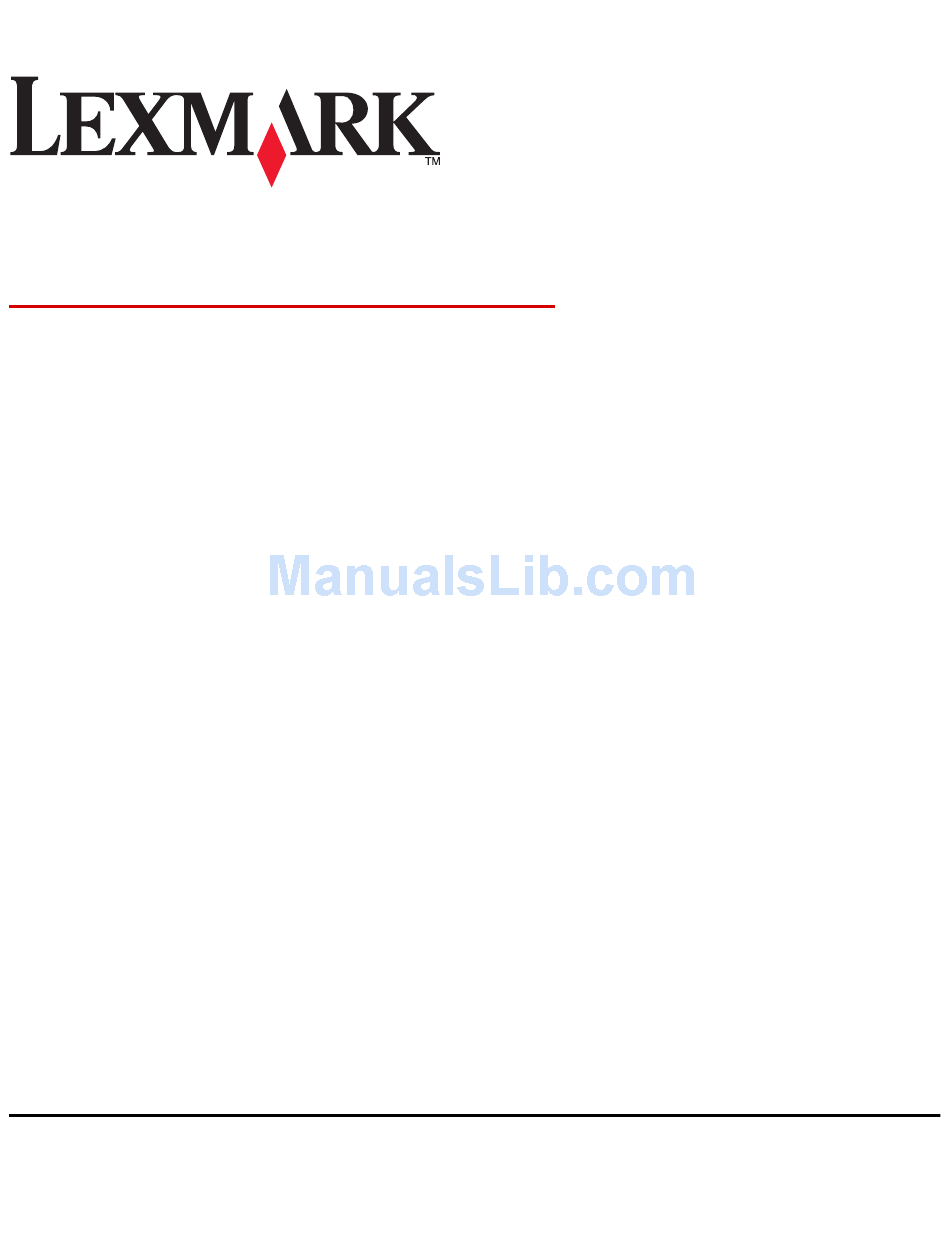

Page 1: Service Manual
Lexmark MS410 Series Machine Type 4514-420, -430 Service Manual • Start diagnostics • Maintenance • Safety and notices • Trademarks • Index October 17, 2012 www.lexmark.com P/N 12G2879... -
Page 2: Parts Catalog
4514-420, -430 Parts catalog Legend The following column headings are used in the parts catalog: • Asm‑index—Identifies the item in the illustration. • Part number—Identifies the unique number that correlates with the part. • Units/mach—Refers to the number of units actually used in the base machine or product. •... -
Page 3: Assembly 1: Covers
4514-420, -430 Assembly 1: Covers Parts catalog... - Page 4 4514-420, -430 Assembly 1: Covers Asm-index Units/mach Units/FRU Description Removal procedure 40X8520 Dust cover (250‑sheet tray) “Dust cover removal” on page 207 40X8054 Rear door and cover “Rear door and cover removal” on page 207 40X8052 Right cover “Right cover removal” on page 162 40X8056 Front access cover “Front access cover removal”...
-
Page 5: Assembly 2: Electronics
4514-420, -430 Assembly 2: Electronics 1 Parts catalog... - Page 6 4514-420, -430 Assembly 2: Electronics 1 Asm-index Units/mach Units/FRU Description Removal procedure 40X8081 Laser scanning unit “Laser scanning unit (LSU) removal” on page 213 40X8343 Fuser, 100 V “Fuser removal” on page 211 40X8023 Fuser, 110 V “Fuser removal” on page 211 40X8024 Fuser, 220 V “Fuser removal”...
-
Page 7: Assembly 3: Electronics
4514-420, -430 Assembly 3: Electronics 2 Parts catalog... - Page 8 4514-420, -430 Assembly 3: Electronics 2 Asm-index Units/mach Units/FRU Description Removal procedure 40X8048 Front door sensor “Front door sensor removal” on page 186 40X8266 Toner cartridge smart chip contact “Toner cartridge smart chip contact removal” on page 165 40X8046 Toner density sensor “Toner density sensor removal”...
-
Page 9: Assembly 4: Frame
4514-420, -430 Assembly 4: Frame Parts catalog... - Page 10 4514-420, -430 Assembly 4: Frame Asm-index Units/mach Units/FRU Description Removal procedure 40X8393 Transfer roll “Transfer roll removal” on page 170 40X8298 Redrive assembly “Redrive assembly removal” on page 210 40X8299 Front mounts “Left front mount removal” on page 167 “Right front mount removal” on page 168 40X8275 Duplex assembly...
-
Page 11: Assembly 5: Option Trays
4514-420, -430 Assembly 5: Option trays Parts catalog... - Page 12 4514-420, -430 Assembly 5: Option trays Asm-index Units/opt Units/FRU Description Removal procedure 40X8287 250-sheet tray 40X8286 550-sheet tray 40X8520 Dust cover, 250‑sheet tray “Dust cover removal” on page 207 40X8521 Dust cover, 550‑sheet tray “Dust cover removal” on page 207 40X8262 ACM assembly “ACM assembly removal”...
-
Page 13: Assembly 6: Power Cords
4514-420, -430 Assembly 6: Power cords Asm-index Units/mach Units/FRU Description Removal procedure 40X0269 Power cord, 2.5 m (straight)—USA, Canada 40X3141 Power cord, 2.5 m (straight)—Europe and others 40X0288 Power cord, 2.5 m (straight)—Argentina 40X0271 Power cord, 2.5 m (straight)—United Kingdom 40X0275 Power cord, 2.5 m (straight)—Israel 40X1772...
