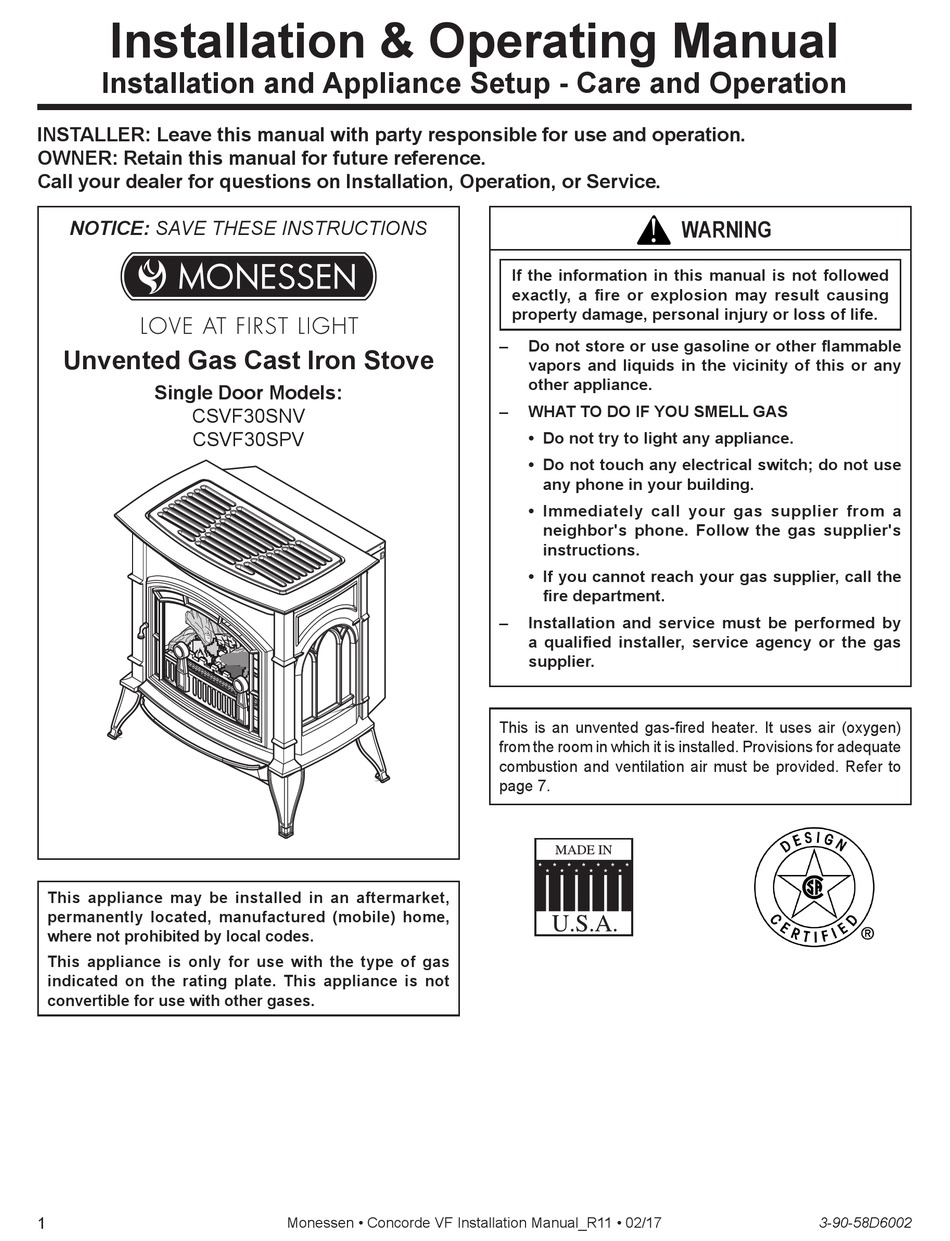

Installation & Operating Manual
Installation and Appliance Setup - Care and Operation
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Call your dealer for questions on Installation, Operation, or Service.
NOTICE: SAVE THESE INSTRUCTIONS
Unvented Gas Cast Iron Stove
Single Door Models:
CSVF30SNV
CSVF30SPV
586002
This appliance may be installed in an aftermarket,
csvf vfcs cover
permanently located, manufactured (mobile) home,
where not prohibited by local codes.
This appliance is only for use with the type of gas
indicated on the rating plate. This appliance is not
convertible for use with other gases.
1
ON
F
OF
Monessen • Concorde VF Installation Manual_R11 • 02/17
!
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
–
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
–
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
–
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
This is an unvented gas-fired heater. It uses air (oxygen)
from the room in which it is installed. Provisions for adequate
combustion and ventilation air must be provided. Refer to
page 7.
WARNING
3-90-58D6002
Advertisement
Table of Contents
Related Manuals for Monessen Hearth VFCS30DNV
Summary of Contents for Monessen Hearth VFCS30DNV
- Page 1 Installation & Operating Manual Installation and Appliance Setup - Care and Operation INSTALLER: Leave this manual with party responsible for use and operation. OWNER: Retain this manual for future reference. Call your dealer for questions on Installation, Operation, or Service. WARNING NOTICE: SAVE THESE INSTRUCTIONS If the information in this manual is not followed...
-
Page 2: Table Of Contents
Unvented Cast Iron Gas Stoves PLEASE READ THE INSTALLATION & OPERATING INSTRUCTIONS BEFORE USING APPLIANCE. Thank you and congratulations on your purchase of a Monessen stove. IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible fire hazard and will void the warranty. -
Page 3: Important Safety Information
Unvented Cast Iron Gas Stoves IMPORTANT SAFETY INFORMATION Installer Owner Please leave these instructions with the appliance. Please retain these instructions for future reference. WARNING • Any change to this heater or its controls can be dangerous. • Improper installation or use of the heater can cause serious injury or death from fire, burns, explosion or carbon monoxide poisoning. -
Page 4: Codes
Unvented Cast Iron Gas Stoves Continued from page 3 Proposition 65 Warning: Fuels used in gas, woodburning 20. During manufacturing, fabricating and shipping, various or oil fired appliances, and the products of combustion components of this appliance are treated with certain of such fuels, contain chemicals known to the State oils, films or bonding agents. -
Page 5: Product Features
Max. Input Min. Input LOW/HI - Variable position to control flame Model Fuel Control BTU/h BTU/h height (heat output). Both front and VFCS30DNV Nat. Millivolt 32,000 20,000 rear burners are in operation to provide realistic glow and yellow VFCS30DPV Millivolt 32,000 20,000 flame. -
Page 6: Getting Started
Unvented Cast Iron Gas Stoves Getting Started Carefully inspect the contents for shipping damage. If any CAUTION parts are missing or damaged, immediately inform the dealer from whom you purchased the appliance. Do not attempt Gloves are recommended when handling ceramic fiber to install any part of the appliance unless you have all logs to prevent skin irritation from loose fibers. -
Page 7: Stove Dimensions
Unvented Cast Iron Gas Stoves Stove Dimensions Figure 3 Ref. CSVF30S / VFCS30D 586002 26C\v" 28Z\x" CSVF dims 19C\v" 23C\v" Monessen • Concorde VF Installation Manual_R11 • 02/17 3-90-58D6002... -
Page 8: Clearances To Combustibles
Unvented Cast Iron Gas Stoves Clearances to Combustibles WARNING The dimensions shown in Figure 4 are minimum clearances to maintain in installing this heater. Left and right clearances are determined when facing the front of the heater. Follow these instructions carefully to ensure safe installation. Failure to follow instructions exactly can create a fire hazard. -
Page 9: Alcove Dimensions
Unvented Cast Iron Gas Stoves Clearances to Combustibles Cont. Figure 5 - Alcove Installation ST1171 Tested Minimum Alcove Clearances alcove clearances Height From Hearth Width Depth Model CSVF30 / VFCS30 52" 34" 36" NOTE: Maintain minimum side and back clearances when placing stove in alcove. -
Page 10: Installation
Unvented Cast Iron Gas Stoves Installation Remove Unit from Pallet: Front 1. Remove plastic bag from unit. Figure 6. Door 2. Lift up on ash lip and pivot down to open control door. Figure 7. 3. Lift up on front. Pivot bottom of front out. Remove front. Figure 7. -
Page 11: Connect Gas Line
Unvented Cast Iron Gas Stoves Connect Gas Line IMPORTANT: Hold heater valve firmly with a wrench to prevent movement when connecting to inlet pipe. NOTICE: A qualified gas appliance installer must connect the heater to the gas supply. Consult all local codes. Always use an external regulator for all propane/LPG heaters and high pressure one to two-pound systems only, to reduce the supply tank pressure to a maximum of... -
Page 12: Check Gas Pressure
Unvented Cast Iron Gas Stoves Check Gas Pressure Connect Remote Receiver The heater gas inlet connection is 3/8" NPT at the valve. The 1. Remove cover on control panel to show opening for inlet is located on left side of stove. Remove front control remote receiver. -
Page 13: Electrical Wiring
Unvented Cast Iron Gas Stoves Electrical Wiring (Millivolt) A. Complete MilliVolt System Check (“A” Reading - Thermostat contacts CLOSED - The millivolt valve is a self-powered combination gas control Control Knob “ON” - Main burner should turn ON) THAT DOES NOT REQUIRE 110V AC TO OPERATE. a. -
Page 14: Log And Rock Wool Placement
Unvented Cast Iron Gas Stoves Log & Rock Wool Placement WARNING The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and other problems may result if the logs are not properly and firmly positioned in the appliance. Never add additional logs or embellishments such as pine cones, vermiculite or rock wool to the heater. -
Page 15: Csvf30 / Vfcs30 Log Placement
Unvented Cast Iron Gas Stoves WARNING CAUTION During initial operation of the new heater, burning The positioning of the logs is critical to the safe and clean operation of this heater. Sooting and other logs will give off a paper burning smell and orange flames will be present. -
Page 16: Flame Appearance
Unvented Cast Iron Gas Stoves Flame Appearance Flames from the pilot, front and rear burner should be Burner Flame visually checked as soon as the heater is installed. In normal operation at full rate after 15 minutes, the In addition, periodically check the flames visually during following flame appearances should be observed: operation. -
Page 17: Operating Instructions
Unvented Cast Iron Gas Stoves Operating Instructions Avoid any drafts that alter burner flame patterns. Do not allow fans to blow directly into the stove. Do not place a blower inside the burn area of the stove. Ceiling fans may create drafts that alter flame patterns. Sooting and improper burning will result. -
Page 18: Millivolt Control Lighting Instructions
Unvented Cast Iron Gas Stoves MILLI-VOLT CONTROL LIGHTING INSTRUCTIONS 7. With the control knob pushed in, push in and release 1. STOP! Read the safety information label. the piezo ignitor button to light the pilot. 2. Make sure the manual shutoff valve is fully open. 8. -
Page 19: Match Lighting Instructions
Unvented Cast Iron Gas Stoves MATCH LIGHTING INSTRUCTIONS 1. Open stove door. Remove any items necessary for 3. After control knob has been released and pilot stays lit, easy access to the pilot (for example: logs, screens, reinstall any items that were removed for pilot access. etc.). -
Page 20: Troubleshooting
Unvented Cast Iron Gas Stoves Troubleshooting NOTE: All troubleshooting items are listed in order of WARNING operation. Turn appliance OFF and allow to cool before servicing. Only a qualified service person should service and repair the heater. OBSERVED PROBLEM POSSIBLE CAUSE REMEDY When ignitor button is pressed, there is A. - Page 21 Unvented Cast Iron Gas Stoves WARNING If the gas quality is bad, your pilot may not stay lit, the burners may produce soot and the heater may backfire when lit. If the gas quality or pressure is low, contact your local gas supplier immediately. OBSERVED PROBLEM POSSIBLE CAUSE REMEDY...
-
Page 22: Replacement Parts
Unvented Cast Iron Gas Stoves REPLACEMENT PARTS Burner assembly - CSVF30 / VFCS30 WARNING 586002 Failure to position the parts in accordance with these CSVF VFCS 30 parts diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. - Page 23 Unvented Cast Iron Gas Stoves Replacement Parts Burner Assembly Ref. Description Qty. CSVF30SNV CSVF30SPV Piezo Ignitor 14D0503 14D0503 5/16 Union Tee 43D0181 43D0181 Piezo Wire 00K0632 00K0632 Front Burner 58D0193 58D0193 Rear Burner 58D0435 58D0435 Control Valve 14D0467 14D0468 Front Burner Injector 58D0061 58D0056 Rear Burner Injector...
-
Page 24: Logs - Csvf30/Vfcs30
Unvented Cast Iron Gas Stoves Replacement Parts CSVF30 / VFCS30 Logs 586002 WARNING CSVF VFSC 30 logs Ref. Description Qty. Part Number Failure to position the parts in accordance with these Back Log 58D1901 diagrams or failure to use only parts specifically Bottom Left Log 58D1902 approved with this appliance may result in property... -
Page 25: Massachusetts Residents Only
Unvented Cast Iron Gas Stoves Requirements for the Commonwealth of Signage A metal or plastic identification plate shall be permanently Massachusetts mounted to the exterior of the building at a minimum height This product must be installed by a licensed plumber or of eight (8) feet above grade directly in line with the exhaust gas fitter when installed within the Commonwealth of vent terminal for the horizontally vented gas fueled heating... -
Page 26: Warranty
Unvented Cast Iron Gas Stoves Limited Lifetime Warranty Monessen warrants its products to be free of defects in material and workmanship and backs each product with a Limited Lifetime Warranty. This warranty is to the original purchaser of a Monessen product and is not transferable. LIFETIME WARRANTY Covered under this warranty are the stove body, combustion chamber, door frame, gold plating (manufacturing defects only), glass (thermal breakage only), heat exchange system, and burner. - Page 27 Unvented Cast Iron Gas Stoves Monessen • Concorde VF Installation Manual_R11 • 02/17 3-90-58D6002...
- Page 28 352 Mountain House Road • Halifax, Pa 17032 www.monessenhearth.com Monessen • Concorde VF Installation Manual_R11 • 02/17 3-90-58D6002...
