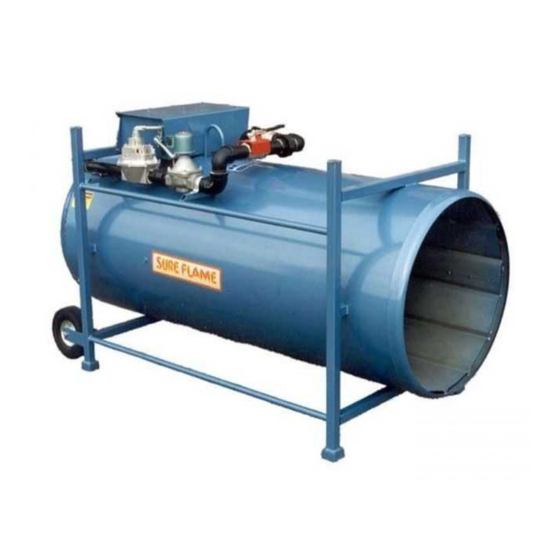

Construction heater

Advertisement

Quick Links

342 N. Co. Rd. 400 East
Valparaiso, IN 46383
219-464-8818 • Fax 219-462-7985
www.heatwagon.com
Installation and Maintenance Manual
Please retain this manual for future reference.
S1505
Construction
Heater
For your safety: Do not use this heater in
a space where gasoline or other liquids
having flammable vapors are stored.
Revision 9-13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S1505 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Heat Wagon S1505

  • Page 1 Valparaiso, IN 46383 219-464-8818 • Fax 219-462-7985 www.heatwagon.com Installation and Maintenance Manual Please retain this manual for future reference. S1505 Construction Heater For your safety: Do not use this heater in a space where gasoline or other liquids having flammable vapors are stored.
  • Page 2 If you need assistance or heater information such as an instruction manual, labels, etc., contact your local Heat Wagon dealer or the manufacturer. Fire, burn, inhalation, and explosion hazard. Keep solid combustibles, such as build- ing materials, paper or cardboard, a safe distance away from the heater as recom- mended by the instructions.
  • Page 3: Table Of Contents

    Fuel Sizing Charts ........15-16 WARRANTY All new Heat Wagon and Sure Flame heaters and fans are guaranteed against defective materials and work- manship for one (1) year from invoice date.
  • Page 4: Specifications

    2. Low skin temperature: Sure Flame Heaters are designed to have a low skin temperature. This provides added safety in the workplace. 3. Durable Construction: The Model S1505 used a stainless steel burner for long life and consistent performance. In order to maintain the highly efficient combustion of the Sure Flame Heater, the com- bustion chamber must remain as manufactured.
  • Page 5: Installation

    INSTALLATION The Sure Flame Model S1505 is a direct fired gas heater intended to be used primarily for the tem- porary heating of building under construction, alteration, or repair. Since all the products of com- bustion are released into the area being heated, it is imperative that adequate ventilation is provid- ed.
  • Page 6: Operating Instructions

    Installation using a propane supply cylinder 1. When installing the heater for use with propane gas, set the gas selector valve to “Propane” and lock in position. 2. The supply container must be equipped with an LP Gas Regulator that complies with ANSI/UL 144 Standard for Pressure Regulating Valves for LP Gas.
  • Page 7: Common Installation & Operational Problems

    Common Installation & Operational Problems 1. Low Voltage- This is one of the most common problems and is usually the result of the supply cord having too small a wire gauge for its length. Low voltage results in the motor overheating, burnt relay contacts, or a relay that will not make contact.
  • Page 8: Safety Features

    D. Motor The electric motor on the S1505 Heater is fitted with sealed bearings and no oiling is required. Keep the motor clean by blowing or wiping off dust or dirt in order to prevent it from overheating.
  • Page 9: Troubleshooting

    Troubleshooting S1505 In order to make these checks an AC Voltmeter is required. Both the control circuit and the motor voltage is 115VAC. Use extreme caution when checking voltage. 1. Push start button and hold for 2 to 3 seconds.
  • Page 10: Troubleshooting

    Troubleshooting S1505 6. Gas valves are energized, and spark is initiated: 1) If gas valves do not open then check each gas valve individually a) If there is power between the wires leading to the gas valve, then the gas valve is...
  • Page 11: Parts Breakdown

    Airswitch (0.5” W.C.) SFP S1500-83 1.25” Strainer SFP 2446 Hi Limit Thermoswitch SFP 4509 Gas Pressure Switch SFP S1505-152 Inlet, 1-1/4 x 9" nipple SFP 4490 1.25” 2 Stage Regulator Valve SFP 2537 1.5” Solenoid Valve Parts Not Shown SFP S1505-81 1.5” Gas Selector Valve...
  • Page 15: Fuel Sizing Charts

    Fuel Sizing Charts Hose Hose Length 1.5 Million Length 1.5 Million in Feet 1/2PSI 10PSI in Feet <1PSI 1PSI 2PSI 5PSI 1-1/4 1-1/4 1-1/4 1-1/4 1-1/4 1-1/4 VAPOR PROPANE QUICK NATURAL GAS QUICK 1-1/4 1-1/4 1-1/4 2-1/2 1-1/2 1-1/4 REFERENCE HOSE REFERENCE HOSE 2-1/2 1-1/2 1-1/4 1-1/4 CHART...
