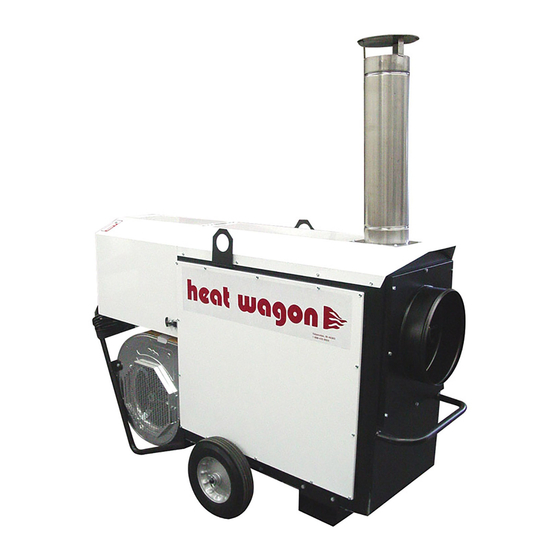

Construction heater

Advertisement

Quick Links

342 N. Co. Rd. 400 East
Valparaiso, IN 46383
888-432-8924 • Fax 219-462-7985
www.heatwagon.com
Installation and Maintenance Manual
Please retain this manual for future reference.
VF400
Construction
Heater
C
US
Dept. of Buildings
29-05-E
CAUTION: Do not use this heater in a
space where gasoline or other liquids
having flammable vapors are stored.
Revision 12-16

Advertisement

loading
Need help?

Need help?

Do you have a question about the VF400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Heat Wagon VF400

  • Page 1 342 N. Co. Rd. 400 East Valparaiso, IN 46383 888-432-8924 • Fax 219-462-7985 www.heatwagon.com Installation and Maintenance Manual Please retain this manual for future reference. VF400 Construction Heater Dept. of Buildings 29-05-E CAUTION: Do not use this heater in a space where gasoline or other liquids having flammable vapors are stored.
  • Page 2 If you need assistance or heater information such as an instruction manual, labels, etc., contact your local Heat Wagon dealer or the manufacturer. Fire, burn, inhalation, and explosion hazard. Keep solid combustibles, such as build- ing materials, paper or cardboard, a safe distance away from the heater as recom- mended by the instructions.
  • Page 3: Table Of Contents

    Exhaust Flue Pipe Guidelines ....... . .18 WARRANTY All new Heat Wagon and Sure Flame heaters and fans are guaranteed against defective materials and workman- ship for one (1) year from Heat Wagon invoice date.
  • Page 4: Safety & Caution

    • Always disconnect the unit from power supply when maintenance or service is being performed. • IF NOT OPERATED WITHIN GUIDELINES OF THESE OPERATING INSTRUCTIONS MANUFACTURER WILL NOT BE HELD RESPONSIBLE AND WARRANTY WILL BECOME VOID. SPECIFICATIONS Model No. VF400 Fuels: #1 or #2 Kerosene, Diesel, Heating Fuel Capacity: 400,000 BTU/HR Blower: 2,100 CFM 1/2”...
  • Page 5: Operating Instructions

    OPERATING INSTRUCTIONS INSTALLATION • When transporting, use both lifting eyes located on sides of heater. • Place the unit on a level and non-combustible surface. • Minimum clearances from combustible materials for indoor or outdoor installation on combustible flooring: - outlet, minimum 10 feet - sides, minimum 3 feet - top, minimum 3 feet - flue pipe exhaust, gas discharge minimum 2 feet...
  • Page 6 START UP • Only people who are trained in the operation and supervision of this heater should operate and maintain the unit. • Check the unit to make sure that there are no visible defects on the control and safety devices and that the unit has been installed correctly.
  • Page 7: Maintenance

    To ensure the proper function of the unit, it must be serviced on regular basis. Maintenance can be performed, (excluding the control devices and safety limit controls), by an authorized trained & certified Heat Wagon dealer. The control devices and safety limit controls do not need routine maintenance. If these items fail they must be replaced.
  • Page 12: Illustrated Parts Breakdown

    Heat Wagon VF400 Parts List 25B (Reset) ITEM PART# DESCRIPTION ITEM PART# DESCRIPTION HWP 2109001 HEATER FRAME HWP 40850 THERMOSTAT BOX HWP 2109002 COVER PLATE HWP 20579 HEATER CONTROL UNIT HWP 2109003 SIDE PANELS (2) HWP 20581 FAN SENSOR (FOR POS. #27), 4” TUBE...
  • Page 13 WAYNE BURNER PARTS BREAKDOWN HWP 100926013 Gun Assembly See Gun View pg. 14 ASSEMBLED VIEW HWP 14409 Kip Oil Valve HWP 63266013 HWP 21659 Static Baffle 30º Ignition Transformer 12” Setting HWP 13077 HWP 100386 Primary Control Coupling 15 Sec. HWP 13666 Flame Safeguard Cad Cell...
  • Page 14 ELECTRODE SETTING HWP 13276 - Buss Bar Support HWP 21684 - Electrodes, 2 Piece Set HWP 100989061 - 1 Piece Electrode HWP 100393-001 Flamelock Assembly HWP 32101 HWP 12362 - Nozzle Adapter...
  • Page 15: Wiring Diagrams

    120 Volt 1 PH CONTROL BOX WIRING...
  • Page 16 120 Volt 1 PH ITEM PART# DESCRIPTION HWP 41000 MAIN CONTROL BOX HWP 40850 THERMOSTAT BOX HWP 40900 FAN CONNECTION BOX HWP 26400 MAIN SWITCH HWP 20579 HEATER CONTROL UNIT, MODEL HW120 HWP 20581 FAN SENSOR (for S4) HWP 20583 HWP 20582 BURNER SENSOR (for S5) HWP 21800...
  • Page 17 BLOWER MOTOR 120 Volt 1 PH SCHEMATIC...
  • Page 18: Exhaust Flue Pipe Guidelines

    EXHAUST FLUE PIPE GUIDELINES VENT DIAMETER (D) INCHES CAPACITY OF TYPE B DOUBLE-WALL TOTAL VENTS SERVING A SINGLE DRAFT LATERAL VENT LENGTH HEIGHT( ( H H ) ) F HOOD-HEATER x 1000 BTU'S ( ( L L ) ) FEET 1170 FOR INDOOR APPLICATIONS 1320...
  • Page 19 Heat Wagon Offers You More Options Oil Fired Fuel Tank VF400 Tank (FT400) • 75 gallon tank • Single wall tank • Forklift capability from all four sides • Minimum 25 hour run time • 160 lbs. (empty) - 750 lbs. (full)
  • Page 20 We Stock A Complete Line Of Parts & Accessories DUCTING THERMOSTAT LOCK BOXES HOSES REGULATORS 342 N. Co. Rd. 400 East Valparaiso, IN 46383 219-464-8818 • Fax 219-462-7985 www.heatwagon.com...
