342 N. Co. Rd. 400 East
Valparaiso, IN 46383
219-464-8818 • Fax 219-462-7985
www.heatwagon.com
Installation and Maintenance Manual
Please retain this manual for future reference.

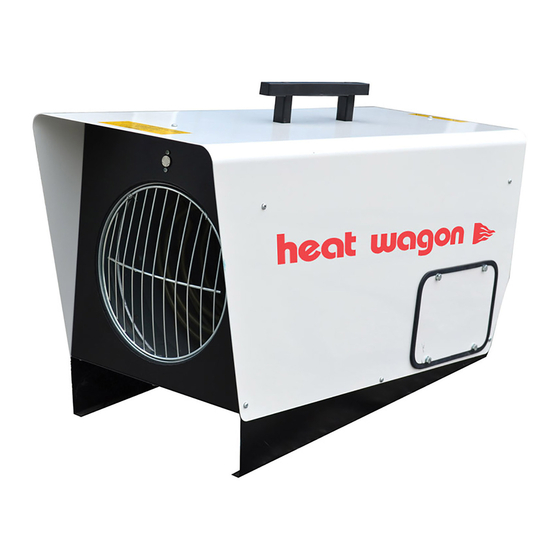

P1800
Construction
Heater
For your safety: Do not use this heater in
a space where gasoline or other liquids
having flammable vapors are stored.
Revision 7-29-02
Advertisement
Table of Contents
Related Manuals for Heat Wagon p1800
Summary of Contents for Heat Wagon p1800
- Page 1 Valparaiso, IN 46383 219-464-8818 • Fax 219-462-7985 www.heatwagon.com Installation and Maintenance Manual Please retain this manual for future reference. P1800 Construction Heater For your safety: Do not use this heater in a space where gasoline or other liquids having flammable vapors are stored.
-
Page 2: For Your Safety
If you need assistance or heater information such as an instruction manual, labels, etc. Contact your local Heat Wagon dealer or the manufacturer. Fire, burn, inhalation, and explosion hazard. Keep solid combustibles, such as building materials, paper or cardboard, a safe distance away from the heater as recommended by the instructions. -
Page 3: Warranty
Wiring Diagrams ......... .8 WARRANTY All new Heat Wagon and Sure Flame heaters and fans are guaranteed against defective materials and workmanship for one (1) year from invoice date. -
Page 4: Principal Of Operation
Principal of Operation SPECIFICATIONS Model No. P1800 Heat Output 65,000 or 41,000 BTU/Hr (Two stage selector) Watts 18,000 or 12,000 Air Flow 590 CFM, 1,000 Cu. m/hr Electrical Rating: 240V 60Hz Single Phase Single Phase Model Amp draw 75 Amps or 50 Amps... -
Page 5: Operation
OPERATION REVIEW AND UNDERSTAND ALL WARNINGS IN THIS MANUAL. THEY ARE ESSENTIAL FOR SAFE USE OF THE HEATER. FOLLOW ALL LOCAL CODES. To start heating: 1. Place the heater on a stable and level surface. Make sure that no explosive or combustible fumes or dust are present. -
Page 6: Maintenance
STORAGE Store heater in a dry, clean and safe place out of reach of children and unqualified persons. MAINTENANCE WARNING Never service the heater while it is plugged in, running or hot. Severe bodily injury or electric shock may occur. Only qualified persons are allowed to open heater for service. - Page 7 HWP 180032 HOOD INCLUDES HWP 180013 FAN HUB CONNECTION HATCH P1800 HWP 180014 FAN MOTOR HWP 180033 FAN HUB, PLASTIC FOR P1800 HWP 180015 REAR PANEL HWP 180034 TERMINAL BLOCK P1800 HWP 180016 STRAIN RELIEVER HWP 180035 CONNECTION HATCH P1800...
