68012007081_a.book Page 1 Friday, November 30, 2012 9:05 AM
m
®
Bluetooth
Accessory Pod
PMLN6396/HKLN4512
*68012007081*
68012007081-A
EN
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M
logo are trademarks or registered trademarks of Motorola Trademark
Holdings, LLC and are used under license. All other trademarks are the
property of their respective owners.
© 2012 Motorola Solutions, Inc.
All rights reserved.

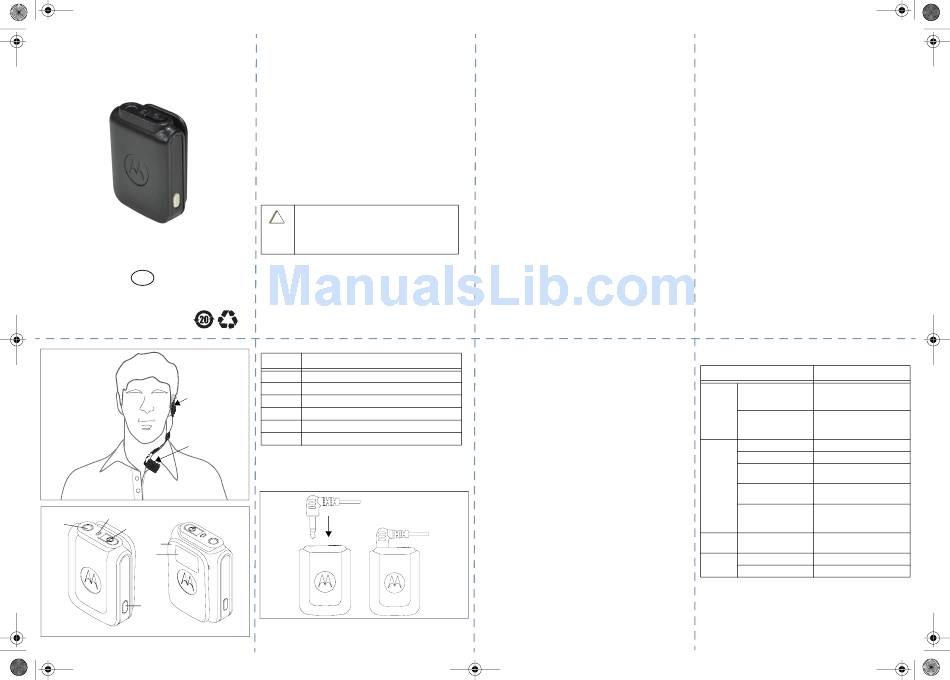

Swivel Earpiece
Bluetooth Pod
2
1
3
4
5
6
BLUETOOTH ACCESSORY POD PMLN6396/
HKLN4512
Congratulations on your new Motorola Bluetooth
Accessory Pod! This Pod device is designed to allow
you the convenience of Bluetooth technology by simply
connecting it to a Motorola swivel earpiece, enabling you
to comfortably wear it in many convenient ways for long
periods of time. Furthermore, the Bluetooth Pod is
exclusively designed for business radio applications and
optimized to work with Motorola two-way radios.
This user guide contains the operation and pairing
instructions of Bluetooth Pod. Before getting started,
please make sure you read and understand the RF and
Acoustic Safety sections, which contain very important
information about this product.
FOREWORD
Product Safety and RF Exposure Compliance
Before using this product, read the
!
operating instructions for safe usage
contained in the RF Energy Exposure and
C a u t i o n
Product Safety Guide enclosed with your
radio.
ATTENTION!
The radio is restricted to occupational use only to satisfy
ICNIRP/FCC RF energy exposure requirements. Before
using this product, read the RF energy awareness
information and operating instructions in the RF Energy
Exposure and Product Safety Guide booklet enclosed
with your radio (Motorola Publication part number
6881095C98 (US) or 6864117B25 (EMEA)) to ensure
Number
Indication
1
3.5 mm Audio Jack
2
Bluetooth Status Indicator
3
Power Button
4
Clip
5
Recess for Label
6
Charger Contact
In order to connect the Swivel Earpiece, insert the
earpiece audio connector into the pod audio jack
connector, making sure it is firmly attached.
Note: Power ON the pod only after the earpiece is
inserted.
compliance with RF energy exposure limits.
This device complies with part 15 of the FCC Rules and
Industry Canada license-exempt RSS standard (s).
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation. Any changes or modifications not
expressly approved by Motorola may void the user's
authority to operate this device.
Battery Information:
Battery is shipped with a nominal charge between 30%
and 50%. Battery should be stored between -10 °C
(14 °F) and 30 °C (86 °F) to minimize permanent
capacity loss.
Caution: Storing your fully charged accessory in
high-temperature conditions may permanently
reduce the life of the internal battery.
Note: The battery is not a user replaceable part.
Important Information:
Do not charge your accessory in temperatures
below 0 °C (32 °F) or above 45 °C (113 °F). Do not
store your accessory in direct sunlight or where
expected temperatures can exceed this range such
as inside a parked car.
Storing your fully charged accessory in
high-temperature conditions may permanently
reduce the life of the internal battery.
Battery life may temporarily shorten in
low-temperature conditions.
PAIRING THE POD WITH YOUR TWO-WAY
RADIO
Pairing your pod for the first time
1.
Before starting, make sure your two-way radio is in
pairing mode.
2.
With the pod off, press and hold the pod power
button until the LED is solid Blue.
3.
Position the pod next to the two-way radio that you
want to pair.
4.
Pod will provide voice prompt to indicate successful
connection.
5.
Refer to the table below for additional LED status
indications.
Clearing/Erasing Pairing Information
1.
Ensure the previous connected two-way radio is
turned off.
2.
Turn off the pod.
3.
Long press the power button until you hear a voice
prompt "Pairing Cleared".
4.
LED will show solid Blue, indicating the pod is in
pairing mode.
For more information about this product, please contact
your Motorola Authorized Dealer or visit us at:
http://www.motorola.com/Business/US-EN/
Business+Product+and+Services/Accessories/Two-
Way+Radio+Accessories/
Wireless+Bluetooth+Accessories
ACOUSTIC SAFETY
Exposure to loud noises from any source for extended
periods of time may temporarily or permanently affect
your hearing. The louder the radio's volume, the less
time is required before your hearing could be affected.
Hearing damage from loud noise is sometimes
undetectable at first and can have a cumulative effect.
To protect your hearing:
Use the lowest volume necessary to do your job.
Turn up the volume only if you are in noisy
surroundings.
Turn down the volume before adding headset or
earpiece.
Limit the amount of time you use headsets or
earpieces at high volume.
GETTING STARTED
Before you start, make sure the pod is fully charged.
Recommended charging time is three (3) hours.
For detailed instructions on pod charging, please
refer to the Charging Cradle Instructions Leaflet
(P/N: 68012008029).
BLUETOOTH ACCESSORY POD OVERVIEW
This Bluetooth Accessory Pod is designed to be used in
conjunction with the Motorola Earpiece PMLN6397/
HKLN4513 as shown in the figure below:
BLUETOOTH POD STATUS AND LED
INDICATORS
State
LED Indication
Power ON (LED ON)
Solid Green LED for 3
(press and hold for 1
seconds then OFF
second)
Power
Power OFF (Press
Flashing Red LED 3 times
and hold for 3
then OFF
seconds)
Pairing Mode
Solid Blue LED
BT Connecting
Flashing Green LED
Flashing Purple LED for 2
Pairing Fail/Timeout
seconds
BT Status
Wireless Link
Flashing Blue LED every 5
Connected With Host
seconds
Wireless Link
Disconnected From
Fast Flashing Blue LED
Host
Flashing Red LED every 2
Battery
Low
minutes
Charging
Solid Red LED
Charging
Fully Charged
Solid Green LED
CHARGING YOUR DEVICE
The pod can be charged with Motorola Bluetooth Pod
Charging Cradle (PMLN6428/HKLN4509).
Note: For assuring proper operation, DO NOT power on
the pod while charging.
