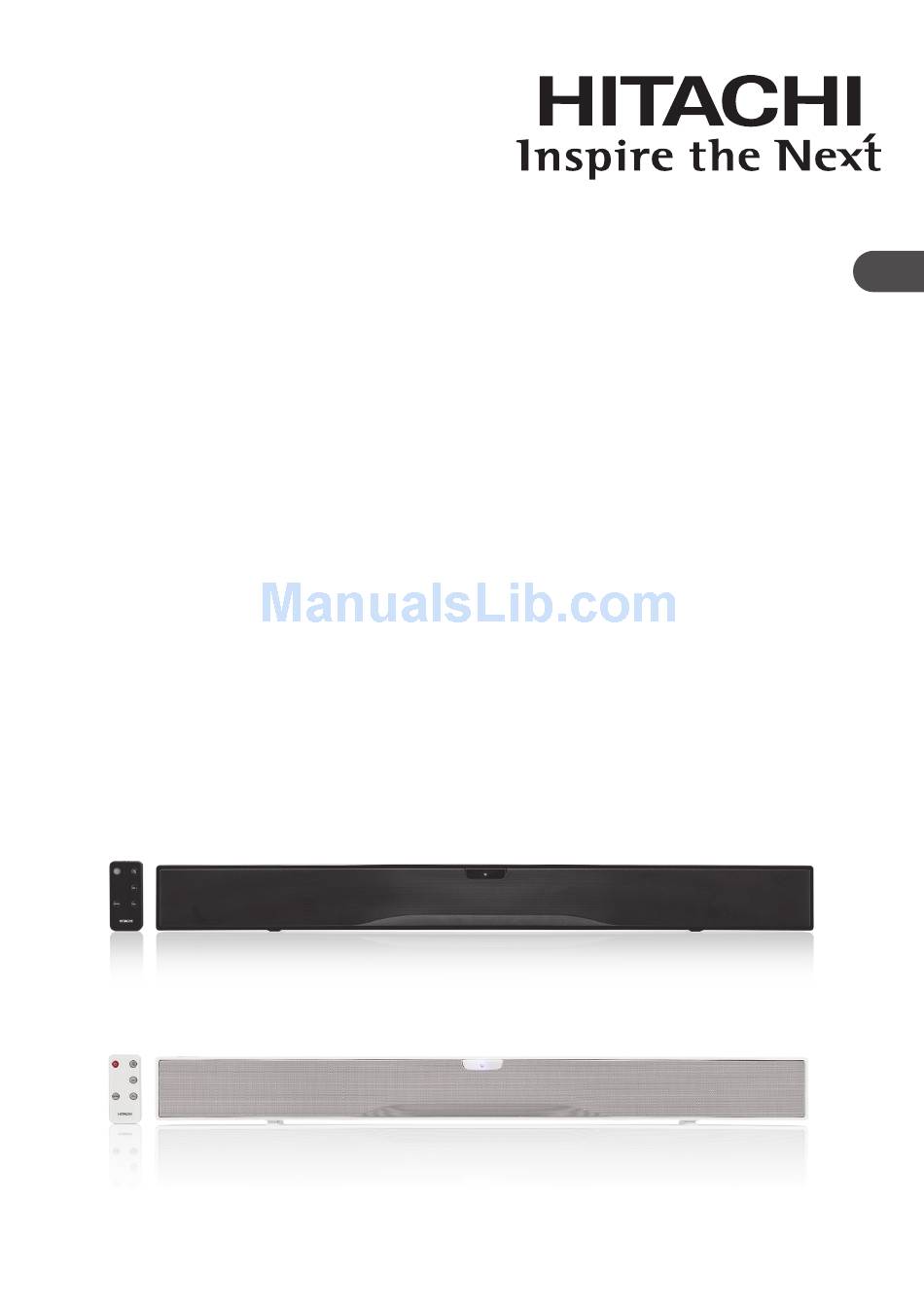

  • Page 1 Instruction Manual AXS020E / AXS020WE Soundbar AXS020E AXS020WE...
  • Page 3: Table Of Contents

    Contents Some Dos and Don’ts on the Safe Use of Equipment ............4 Safety Warnings ........................6 Unpacking ..........................8 Product Overview .........................9 Front View ...............................9 Top View ................................9 Bottom View ..............................9 Remote Control ........................10 Remove the Plastic Strip from the Remote Control ............10 Battery Replacement for the Remote Control ..............10 Handling the Battery ..........................
  • Page 4: Some Dos And Don'ts On The Safe Use Of Equipment

    SOME DOS anD DOn’TS On THE SafE USE Of EqUiPMEnT This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. read the operating instructions before you attempt to use the equipment.
  • Page 5 Used correctly, domestic batteries are a safe and dependable source of portable power. Problems can occur if they are misused or abused – resulting in leakage or, in extreme cases, re or explosion. Here are some simple guidelines to safe battery use designed to eliminate any such problems.
  • Page 6: Safety Warnings

    Safety Warnings Ventilation • Read all the instructions carefully before using the unit and keep them for future • To prevent the risk of electric shock or reference. fire hazard due to overheating, ensure • Retain the manual. If you pass the unit that curtains and other materials do not obstruct the ventilation vents.
  • Page 7 Supervision • Children should be supervised to ensure that they do not play with the unit and the remote control. • Never let anyone especially children push anything into the holes, slots or any other openings in the case - this could result in a fatal electric shock.
  • Page 8: Unpacking

    Thank you for purchasing your new HITACHI Soundbar. We recommend that you spend some time reading this instruction manual so that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues.
  • Page 9: Product Overview

    Product Overview front View Speakers Remote Control Sensor Receives signal from the remote LED Indicator control. • Unlit when the unit is in STanDBY mode. • Lights up blue in aUX in or aUDiO in modes. • Lights up red in OPTiCaL mode. Top View 1 2 3 4 VOL –...
  • Page 10: Remote Control

    Remote Control Button Switches the unit between On and STanDBY modes. MODE Button Selects the input source. Button Mutes the unit or resumes the sound. VOL + Button Increases the volume. VOL – Button Decreases the volume. Remove the Plastic Strip from the Remote Control Remove the plastic strip from the battery if the battery is being used for the first time.
  • Page 11: Handling The Battery

    Handling the Battery • Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause fire, personal injury or damage to property. • Install the battery correctly in the battery compartment. Normally the battery’s positive polarity (+) will face up. •...
  • Page 12: Connections

    Connections Using the OPTiCaL Connection Use an optical cable (not included) to connect the TV’s OPTiCaL OUT socket to the soundbar’s D1 OPTiCaL socket. Bottom view of the unit OPTICAL cable (not included) Using the aUX Connection Use a 3.5mm to RCA stereo audio cable (included) to connect the TV’s audio output sockets to the soundbar’s aUX in socket.
  • Page 13: Using The Audio Connection

    Using the audio Connection Use an RCA stereo audio cable (not included) to connect the TV’s audio output sockets to the soundbar’s aUDiO in (L/R) sockets. Bottom view of the unit RCA stereo audio cable (not included) To listen with aUDiO in (L/R) sockets in aUX mode, make sure aUX in socket is unplugged. Connecting to the Mains Supply •...
  • Page 14: General Operation

    General Operation When you first connect the unit to the mains socket, the unit will be in STanDBY mode. The LED indicator will not light up. • Press on the unit or the remote control to switch the unit to On mode. The LED indicator will light up blue.
  • Page 15: Hints And Tips

    If any functional abnormality is encountered, unplug the unit from the mains socket and reconnect it again. Specifications aXS020E / aXS020WE Model Mains Adapter Input AC 100-240V ~50/60Hz, 0.8A Output DC 15V, 2.0A...
  • Page 16 Elkjøp, Solheimsveien 6-8, PB 153, NO 1471 Lørenskog, Norge Norge: 815 32 000 Sverige: 0771 115 115 Danmark: 70 80 70 70 Suomi: 020321321 Manufacturer: Hitachi Europe Ltd., Whitebrook Park, Lower Cookham Road, Maidenhead, Berkshire SL6 8YA U.K. IB-AXS020E_WE-GB-130827V4...
