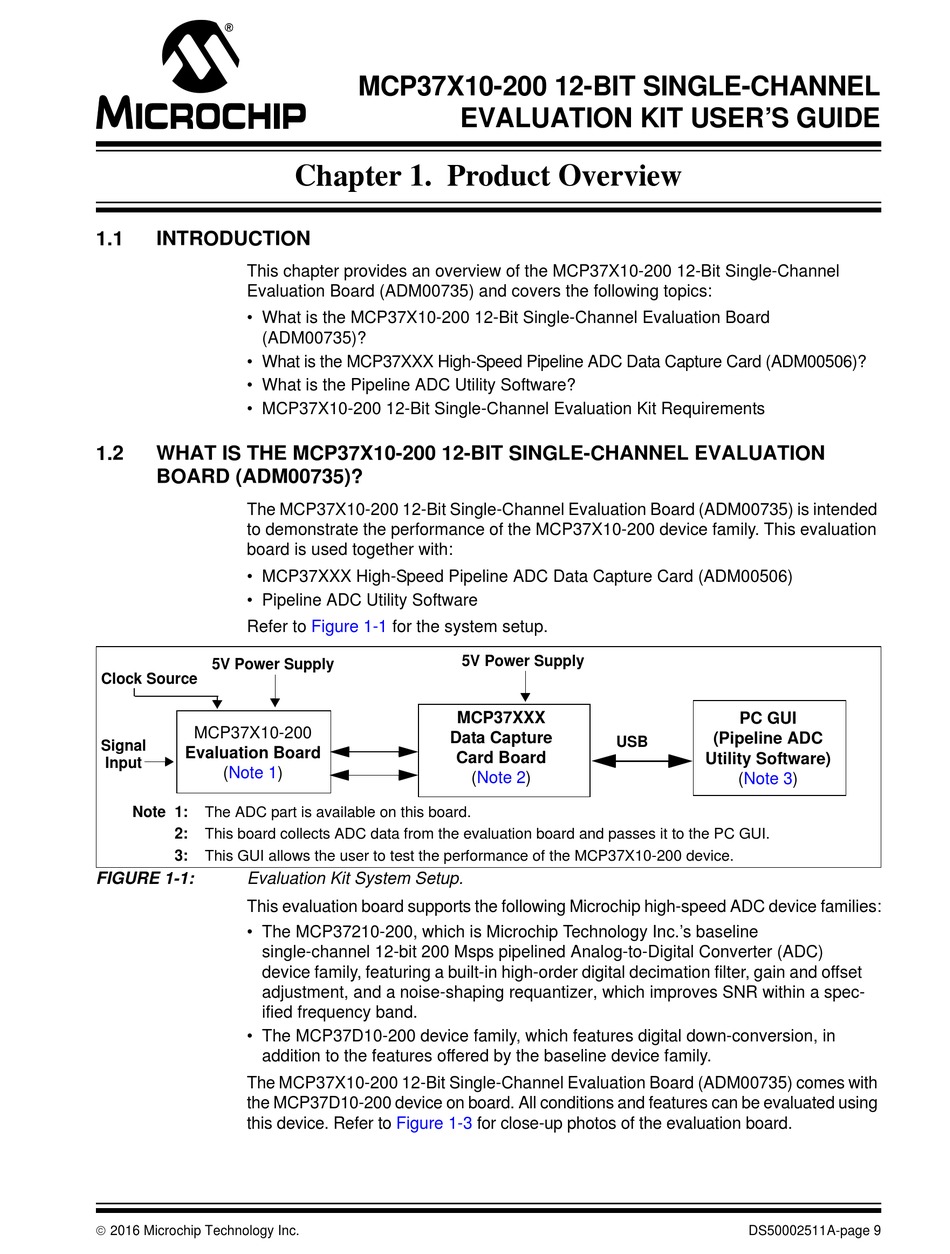

Chapter 1. Product Overview; Introduction; What Is The Mcp37X10-200 12-Bit Single-Channel Evaluation Board (Adm00735) - Microchip Technology MCP37X10-200 User Manual

1.1

INTRODUCTION

This chapter provides an overview of the MCP37X10-200 12-Bit Single-Channel
Evaluation Board (ADM00735) and covers the following topics:
• What is the MCP37X10-200 12-Bit Single-Channel Evaluation Board
(ADM00735)?
• What is the MCP37XXX High-Speed Pipeline ADC Data Capture Card (ADM00506)?
• What is the Pipeline ADC Utility Software?
• MCP37X10-200 12-Bit Single-Channel Evaluation Kit Requirements
1.2 WHAT IS THE MCP37X10-200 12-BIT SINGLE-CHANNEL EVALUATION
BOARD (ADM00735)?
The MCP37X10-200 12-Bit Single-Channel Evaluation Board (ADM00735) is intended
to demonstrate the performance of the MCP37X10-200 device family. This evaluation
board is used together with:
• MCP37XXX High-Speed Pipeline ADC Data Capture Card (ADM00506)
• Pipeline ADC Utility Software
Refer to
5V Power Supply
Clock Source
MCP37X10-200
Signal
Evaluation Board
Input
(Note 1)
Note 1: The ADC part is available on this board.
2: This board collects ADC data from the evaluation board and passes it to the PC GUI.
3: This GUI allows the user to test the performance of the MCP37X10-200 device.
FIGURE 1-1: Evaluation Kit System Setup.
This evaluation board supports the following Microchip high-speed ADC device families:
• The MCP37210-200, which is Microchip Technology Inc.'s baseline
single-channel 12-bit 200 Msps pipelined Analog-to-Digital Converter (ADC)
device family, featuring a built-in high-order digital decimation filter, gain and offset
adjustment, and a noise-shaping requantizer, which improves SNR within a spec-
ified frequency band.
• The MCP37D10-200 device family, which features digital down-conversion, in
addition to the features offered by the baseline device family.
The MCP37X10-200 12-Bit Single-Channel Evaluation Board (ADM00735) comes with
the MCP37D10-200 device on board. All conditions and features can be evaluated using
this device. Refer to
 2016 Microchip Technology Inc.
MCP37X10-200 12-BIT SINGLE-CHANNEL
EVALUATION KIT USER'S GUIDE

Chapter 1. Product Overview

Figure 1-1 for the system setup.
5V Power Supply
MCP37XXX
Data Capture
Card Board
(Note
Figure 1-3
USB
2)
for close-up photos of the evaluation board.
PC GUI
(Pipeline ADC
Utility Software)
(Note 3)
DS50002511A-page 9
