Wheel Base: (Center of Drive Wheel
to Center of Rear Caster Wheel)
42 inch Deck
44.2 inches (112.3 cm)
Curb Weight:
42 inch Deck
1140 lb (517 kg)

Torque Requirements

Bolt Location
Blade Mounting Bolt
Engine Mounting Bolts
Wheel Lug Nuts
Wheel Motor Mounting
Bolts
Wheel Hub Locknut
Blade Driver Shear Bolts
48 inch Deck
44.2 inches (112.3 cm)
48 inch Deck
1170 lb (531 kg)
Torque
85-110 ft-lb (115-149
N-m)
30-35 ft-lb (41-47 N-m)
85-105 ft-lb (122-129
N-m)
72-77 ft-lb (115-142 N-m)
275-350 ft-lb
(373-475 N-m)
80-100 in-lb
(922-1130 N-cm)

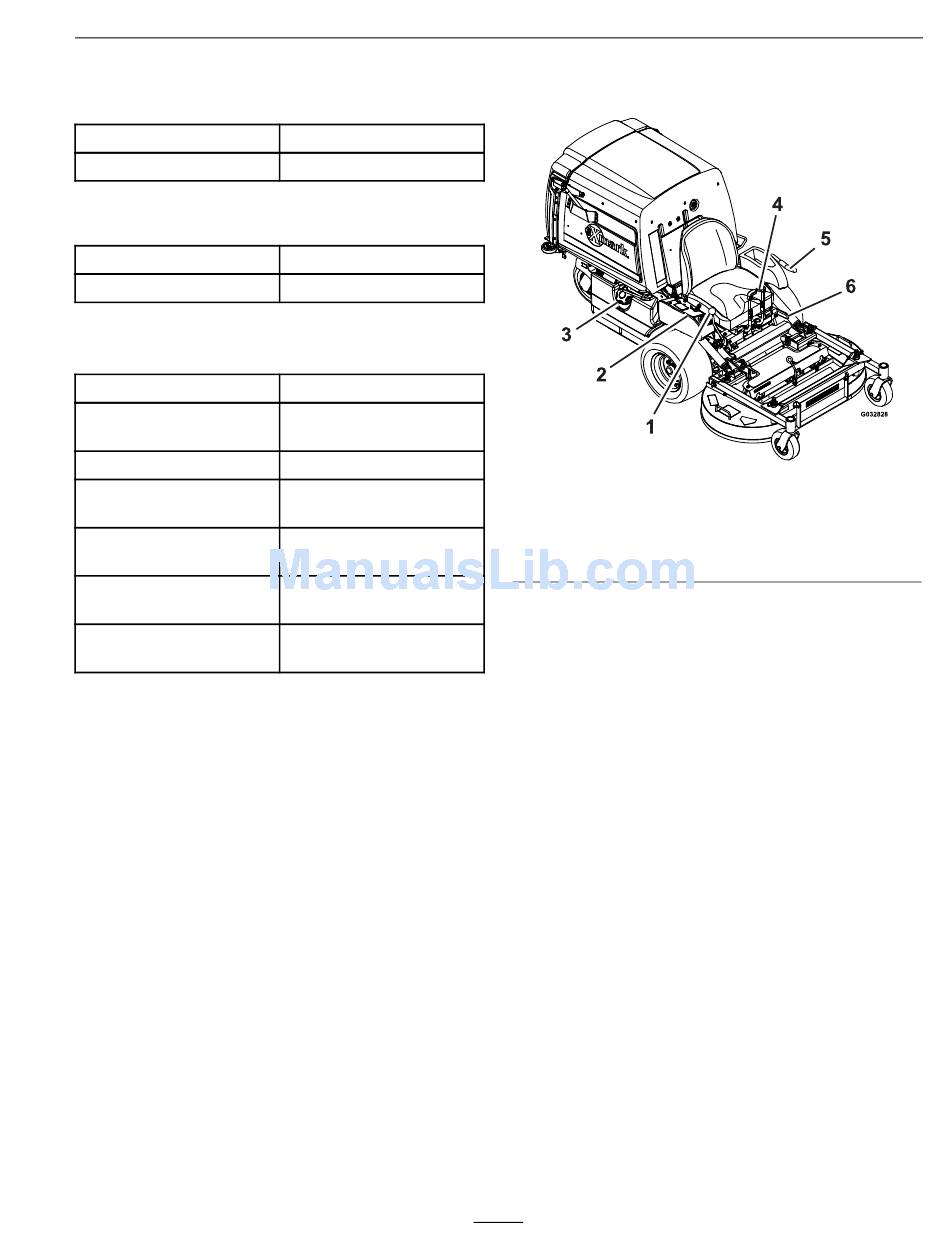

Product Overview

1. Speed Control Lever
2. Controls
3. Fuel Cap
19
Product Overview
Figure 4
4. Steering Levers
5. PTO Engagement Lever
6. Parking Brake Lever
