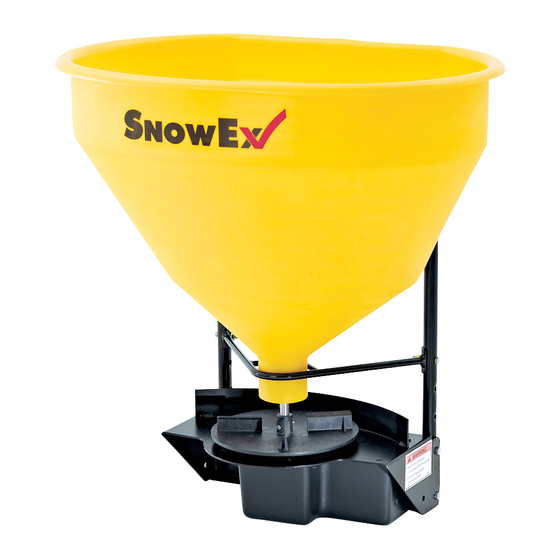

SR‑210 Wireless Tailgate Spreader
Owner's Manual and Installation Instructions
Original Instructions
CAUTION
Read this manual before installing or
operating the spreader.
This manual is for SnowEx
wireless tailgate spreaders with
®
serial numbers beginning with 151013 and higher.
This document supersedes all editions with an earlier date.
Advertisement
Table of Contents
Related Manuals for SnowEx SR-210
Summary of Contents for SnowEx SR-210
- Page 1 Owner's Manual and Installation Instructions Original Instructions CAUTION Read this manual before installing or operating the spreader. This manual is for SnowEx wireless tailgate spreaders with ® serial numbers beginning with 151013 and higher. This document supersedes all editions with an earlier date.
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION ............5 Starting and Stopping Motor ....... 16 Owner's Information Form ........5 Spreading Tips ............ 16 SAFETY INFORMATION ..........6 REMOVING THE SPREADER ......... 17 LOADING ..............11 WIRELESS CONTROL PAIRING AND PROGRAMMING ........... 18 Certification ............ -
Page 5: Introduction
Warranty Registration This manual has been prepared to acquaint you with the safety information, operation and maintenance of your new tailgate spreader. Please read this manual Follow the directions on the SnowEx Warranty ® carefully and follow all recommendations. This will... -
Page 6: Safety Information
SAFETY INFORMATION SAFETY DEFINITIONS WARNING/CAUTION LABELS Please become familiar with the Warning and Caution WARNING labels on the spreader. Indicates a potentially hazardous situation that, if not avoided, could result in death or NOTE: If labels are missing or cannot be read, see serious personal injury. - Page 7 SAFETY INFORMATION SERIAL NUMBER LABEL Model No. 00000 Serial No. 000000000000000000 Code Definition Model No. 00000 2‑Digit Year 2‑Digit Month 2‑Digit Day Serial No. YYMMDDLLXXXXZZZZZZ 2‑Digit Location Code XXXX 4‑Digit Sequential Number ZZZZZZ Assembly Part Number Lit. No. 43755/43757/43873, Rev. 01 March 15, 2016...
- Page 8 SAFETY INFORMATION SAFETY PRECAUTIONS CAUTION • Do not operate a spreader in need of Improper installation and operation could cause maintenance. personal injury and/or equipment and property • Before operating the spreader, reassemble damage. Read and understand labels and the any parts or hardware removed for cleaning Owner's Manual before installing, operating or making or adjusting.
- Page 9 SAFETY INFORMATION FIRE AND EXPLOSION VENTILATION WARNING WARNING Gasoline is highly flammable and gasoline Vehicle exhaust contains lethal fumes. vapor is explosive. Never smoke while Breathing these fumes, even in low working on vehicle. Keep all open flames concentrations, can cause death. Never away from gasoline tank and lines.
-
Page 10: Torque Chart
SAFETY INFORMATION NOISE TORQUE CHART Airborne noise emission during use is below 70 dB(A) CAUTION for the spreader operator. Read instructions before assembling. Fasteners should be finger tight until VIBRATION instructed to tighten according to torque chart. Use standard methods and practices Operating snowplow vibration does not exceed when attaching spreader including proper 2.5 m/s... -
Page 11: Loading
LOADING APPROXIMATE MATERIAL WEIGHTS This Manual covers vehicles which have been recommended for carrying the spreader. Please see your local dealer for proper vehicle applications. WARNING CERTIFICATION Overloading could result in an accident or damage. Do not exceed GVWR or GAWR as found on the driver‑side cornerpost of WARNING vehicle. -
Page 12: Mounting The Spreader
MOUNTING THE SPREADER ASSEMBLY INSTRUCTIONS 2. Mount the support frame to the drive assembly using the six supplied 5/16" x 1" cap screws and the four supplied 5/16" locknuts. Tighten the The spreader shall be installed according to fasteners according to the torque chart. instructions supplied. -
Page 13: Receiver Mount Spreader
MOUNTING THE SPREADER RECEIVER MOUNT SPREADER CAUTION Before drilling holes, check to be sure that no CAUTION vehicle wiring or other components could be damaged. During removal or mounting, securely grip spreader to avoid dropping. 4. Drill four holes in the hopper using the support frame holes as a template. -
Page 14: Electrical Diagram
ELECTRICAL DIAGRAM Battery Negative (–) Antenna Bypass Battery Positive (+) Learn Common Motor Positive (+) Motor Negative (–) Wireless Receiver Module Connections Battery Power Positive (+) Terminal #4 Black Wire Spreader Power Plug End Battery Negative (–) Terminal #1 White Wire Lit. -
Page 15: Operating The Spreader
OPERATING THE SPREADER DRIVING AND SPREADING ON SNOW Here are some tips for driving in these conditions: AND ICE • Drive defensively. • Do not drink, then drive or spread ice‑control CAUTION materials. Drinking and then driving or spreading is •... -
Page 16: Ensuring The Spreader Has Power
OPERATING THE SPREADER 4. Unplug the spreader, push the toggle switch into WARNING the center position and then replug the spreader. Never operate equipment when under the The spreader must be unplugged after running influence of alcohol, drugs, or medications an override. -
Page 17: Removing The Spreader
REMOVING THE SPREADER CAUTION Empty the hopper before removing the spreader. CAUTION During removal or mounting, securely grip spreader to avoid dropping. 1. Unplug the spreader harness from the vehicle harness. 2. Remove the hitch pin from the receiver hitch. 3. -
Page 18: Wireless Control Pairing And Programming
WIRELESS CONTROL PROGRAMMING AND PAIRING WHEN TO PROGRAM AND PAIR THE WARNING WIRELESS KEY FOB CONTROL The spinner will start immediately upon connecting power while in manual override The wireless key fob control included with the mode. Keep hands and tools clear of spinner spreader should come paired and ready for use. - Page 19 WIRELESS CONTROL PROGRAMMING AND PAIRING PROGRAMMING AND PAIRING THE Pairing the Wireless Key Fob Control to WIRELESS KEY FOB CONTROL the Wireless Control Module 1. Check that the wireless control module is Resetting the Wireless Control Module receiving a signal by confirming that a red light is visible through the bottommost hole in the Push and hold the toggle switch‑side of the transmission mount.
-
Page 20: Maintenance
MAINTENANCE AFTER EACH USE WARNING Never remove the spreader with material in CAUTION the hopper. DO NOT leave unused material in hopper. Material can freeze or solidify, CAUTION causing unit to not work properly. Disconnect electric power at spreader Empty and clean after each use. electrical wiring harness connection and tag out if required before servicing or performing •... -
Page 21: Troubleshooting
TROUBLESHOOTING TAILGATE SPREADER Spreader Auger Fuse blown Jammed auger Fix or replace does not run. interference Material issue Too much Bad motor/trans Bad motor; 4‑ to 20‑amp draw, amp draw. assembly contact distributor. no load — good 20+ amp draw, no load —... - Page 22 TROUBLESHOOTING WIRELESS KEY FOB CONTROL Spreader does not Fully seat power respond to Plug not secure connector. key fob. No vehicle power Refer to vehicle to connector instructions. Key fob Replace battery. battery low Ignition off Turn ignition on. Try key fob at Range issue close range to If unit works...
- Page 23 WIRELESS COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation of this device is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 24 Do not exceed vehicle ratings with a spreader. Patent pending. TrynEx International, LLC offers a limited warranty for all spreaders and accessories. See separately printed page for this important information. The following are registered ( ) trademarks of Douglas Dynamics, LLC: SnowEx , TrynEx ®...
