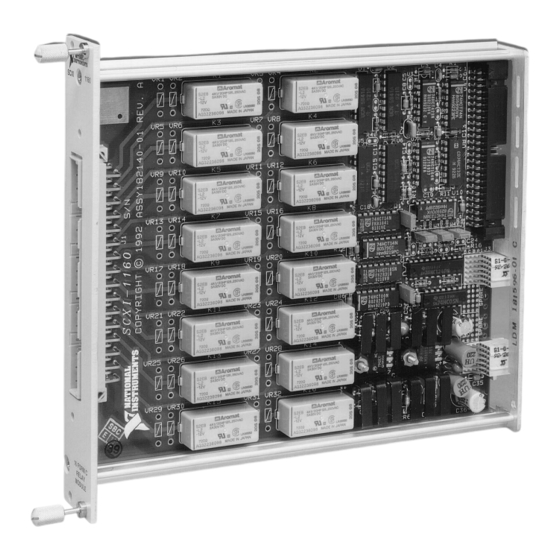

SCXI-1160
User Manual
16-Channel Single-Pole Double-Throw (SPDT) Relay Module
March 1999 Edition
Part Number 320513B-01
© Copyright 1992, 1999 National Instruments Corporation.
All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCXI-1160 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for National Instruments SCXI-1160

Summary of Contents for National Instruments SCXI-1160

  • Page 1 SCXI-1160 User Manual 16-Channel Single-Pole Double-Throw (SPDT) Relay Module March 1999 Edition Part Number 320513B-01 © Copyright 1992, 1999 National Instruments Corporation. All Rights Reserved.
  • Page 2 Worldwide Technical Support and Product Information www.natinst.com National Instruments Corporate Headquarters 11500 North Mopac Expressway Austin, Texas 78759-3504 USA Tel: 512 794 0100 Worldwide Offices Australia 03 9879 5166, Austria 0662 45 79 90 0, Belgium 02 757 00 20, Brazil 011 284 5011, Canada (Ontario) 905 785 0085, Canada (QuÈbec) 514 694 8521, Denmark 45 76 26 00,...
  • Page 3 Warranty The SCXI-1160 is warranted against defects in materials and workmanship for a period of one year from the date of shipment, as evidenced by receipts or other documentation. National Instruments will, at its option, repair or replace equipment that proves to be defective during the warranty period. This warranty includes parts and labor.
  • Page 4 WARNING REGARDING MEDICAL AND CLINICAL USE OF NATIONAL INSTRUMENTS PRODUCTS National Instruments products are not designed with components and testing for a level of reliability suitable for use in or in connection with surgical implants or as critical components in any life support systems whose failure to perform can reasonably be expected to cause significant injury to a human.

  • Page 5: Table Of Contents

    Chapter 3 Theory of Operation ......................3-1 Functional Overview ....................3-1 SCXIbus Connector ..................3-2 SCXIbus Connector Signal Descriptions ............3-4 Digital Interface ......................3-5 Digital Control Circuitry ....................3-6 Relay Channels ......................3-7 © National Instruments Corporation SCXI-1160 User Manual...
  • Page 6 Chapter 4 Register Descriptions ....................... 4-1 Register Description ..................... 4-1 Register Description Format ................4-1 SCXI-1160 Registers ..................4-1 Address Handler ....................4-1 Module ID Register ................4-3 Data Register ..................4-4 Status Register..................4-5 Parking Register ....................4-6 Slot 0 Register Descriptions ................4-7 Slot-Select Register ................
  • Page 7 SCXI-1302 Wiring Procedure ................E-12 SCXI-1302 Installation ..................E-13 SCXI-1351 One-Slot Cable Extender ................E-13 SCXI-1351 Installation ..................E-14 Multiple-Chassis Connections for the SCXI-1160 ............E-14 SCXI-1350 Multichassis Adapter ................E-14 SCXI-1350 Installation ..................E-14 SCXI-1343 Rear Screw Terminal Adapter ..............E-15 SCXI-1343 Installation ..................
  • Page 8 Serial Data Timing Diagram ................2-21 Figure 2-10. Address Handler Timing Diagram ..............2-22 Figure 2-11. Data Register Write Timing Diagram .............. 2-23 Figure 2-12. SCXI-1160 Module ID Register Timing Diagram .......... 2-24 Figure 2-13. SCXI-1160 Status Register Timing Diagram ..........2-25 Figure 3-1.
  • Page 9 Table E-2. SCXI-1341 and 1344 Pin Translations ............E-4 Table E-3. SCXI-1342 Pin Translations ................E-5 Table E-4. SCXI-1160 and DIO-96 Board Pinout Equivalences ........E-7 Table E-5. SCXI-1348 Pin Translations ................E-9 Table E-6. SCXI-1343 Pin Connections ................E-15 ©...

  • Page 10: About This Manual

    About This Manual This manual describes the electrical and mechanical aspects of the SCXI-1160 and contains information concerning its operation and programming. The SCXI-1160 is a member of the National Instruments Signal Conditioning eXtensions for Instrumentation (SCXI) Series modules for the National Instruments data acquisition plug-in boards. This module is designed for switching and controlling low-level and power signals.

  • Page 11: Conventions Used In This Manual

    Italic text denotes emphasis, a cross reference, or an introduction to a key concept. Lab board Lab board refers to the National Instruments Lab-LC, Lab-NB, Lab-PC, and Lab-PC+ boards unless otherwise noted. MC refers to the Micro Channel series computers.

  • Page 12: Related Documentation

    SCXI-1000/1001 User Manual (part number 320423-01) Customer Communication National Instruments wants to receive your comments on our products and manuals. We are interested in the applications you develop with our products, and we want to help if you have problems with them. To make it easy for you to contact us, this manual contains comment and configuration forms for you to complete.

  • Page 13: Chapter 1 Introduction

    Lab-NB, Lab-PC, Lab-PC+, Lab-LC, and PC-LPM-16 boards; and with the DIO-24, DIO-32F, and DIO-96 boards. You can also use the SCXI-1160 with other systems that comply with the specifications given in Chapter 2, Configuration and Installation. You can control several SCXI-1160s in a single chassis with one data acquisition board.

  • Page 14: What Your Kit Should Contain

    This manual contains complete instructions for directly programming the SCXI-1160. You can order separate software packages for controlling the SCXI-1160 from National Instruments. When you combine the PC, AT, and MC data acquisition boards with the SCXI-1160, you can use LabVIEW for Windows or LabWindows for DOS. LabVIEW and LabWindows are innovative program development software packages for data acquisition and control applications.

  • Page 15: Optional Equipment

    Appendix E, SCXI-1160 Cabling, for additional information on cabling, connectors, and adapters. Custom Cables The SCXI-1160 rear signal connector is a 50-pin male ribbon-cable header. The manufacturer part number National Instruments uses for this header is as follows: • AMP Inc. (part number 1-103310-0) ©...

  • Page 16: Unpacking

    • ERNI Components, Inc. (part number 913523) The mating connector for the SCXI-1160 front connector is a special 48-pin reversed DIN C female connector. National Instruments uses a polarized and keyed connector to prevent inadvertent upside-down connection to the SCXI-1160. The manufacturer part number National Instruments uses for this mating connector is as follows: •...

  • Page 17: Configuration And Installation

    SCXI chassis, signal connections to the SCXI-1160, and cable wiring. Module Configuration The SCXI-1160 includes five jumpers that are shown in the parts locator diagrams in Figures 2-1 and 2-2. Figure 2-1 shows the general parts locator diagram of the SCXI-1160 and Figure 2-2 shows a detailed parts locator diagram of the SCXI-1160.
  • Page 20 Connections, including power signals to ground and vice versa, that exceed any of the maximum signal ratings on the SCXI-1160 can result in damage to any or all of the boards connected to the SCXI chassis, to the host computer, and to the SCXI-1160 module.

  • Page 21: Jumper Configuration

    • Jumpers W2, W3, and W4 select whether the SCXI-1160 is to be connected to a DIO board or to an MIO board. If nothing is cabled to the rear signal connector of the SCXI-1160, the position of these jumpers is irrelevant.

  • Page 22: Table 2-1. Digital Signal Connections And Jumper Settings

    Configuration and Installation Chapter 2 is in which slot. In addition to reading the Module ID Register, the MISO line on the SCXI-1160 can read the Status Register, which indicates the status of the relays. National Instruments software uses this feature.

  • Page 23: Using Jumpers W2, W3, And W4

    SCXI-1160 with a DIO type board, place all three jumpers in the DIO position. This position is the factory setting. If you want to use the SCXI-1160 with an MIO type board, place all three jumpers in the MIO position. If nothing is cabled to the rear signal connector of the SCXI-1160, the position of these jumpers is irrelevant.

  • Page 24: Signal Connections

    SCXI-1340 cable assembly to the rear signal connector on the SCXI-1160 module. Screw the rear panel to the rear threaded strip. Attach the loose end of the cable to the data acquisition board.

  • Page 25: Front Connector

    Chapter 2 Configuration and Installation Front Connector Figure 2-3 shows the pin assignments for the SCXI-1160 front connector. Signal Column Signal Number Name Name COM (0) NO (0) NC (0) COM (1) NO (1) NC (1) COM (2) NO (2)

  • Page 26: Front Connector Signal Descriptions

    These pads are located between the COM position and the NO position and between the COM position and the NC position of the relays. SCXI-1160 User Manual 2-10 © National Instruments Corporation...

  • Page 27: Figure 2-4. Contact Protection Using A Flyback Diode For Dc Inductive Loads

    Table 2-2. COM to NO Arc Suppressor Placement COM to NO Channel Number Transient Voltage Suppressor Reference Designator VR11 VR13 VR15 VR17 VR19 VR21 VR23 VR25 VR27 VR29 VR31 © National Instruments Corporation 2-11 SCXI-1160 User Manual...

  • Page 28: Terminal Block

    Figure 2-5. Arc Suppressor Pad Locations Terminal Block A terminal block with screw terminals is available for easy signal connection to the SCXI-1160 inputs. This kit is listed in the Optional Equipment section in Chapter 1, Introduction. SCXI-1324 Terminal Block The SCXI-1324 terminal block consists of a shielded board with supports to connect it to the SCXI-1160 input connector.

  • Page 29: Signal Connection

    Chapter 2 Configuration and Installation When connecting your signals to the SCXI-1324 for use with the SCXI-1160, follow the labeling as indicated in Figure 2-6, SCXI-1324 Parts Locator Diagram. Signal Connection. To connect the signal to the terminal block, use the following procedure: 1.

  • Page 31: Scxi-1324 Installation

    1. Connect the SCXI-1160 front connector to its mating connector on the terminal block. 2. Make sure that the SCXI-1160 top and bottom thumbscrews do not obstruct the rear panel of the terminal block. 3. Tighten the top and bottom screws on the back of the terminal block to hold it securely in place.

  • Page 32: Figure 2-7. Scxi-1160 Rear Signal Connector Pin Assignment

    Chapter 2 Configuration and Installation Figure 2-7 shows the pin assignments for the SCXI-1160 rear signal connector. 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 DIG GND (MIO) SERDATIN 25 26 SERDATOUT (MIO)

  • Page 33: Rear Signal Connector Signal Descriptions

    The digital input signals are pins 24 or 50, 25, 27, 29, and 31 or 37. The data acquisition board uses these pins to configure the SCXI module that the data acquisition board controls. SCXI-1160 User Manual 2-17 © National Instruments Corporation...
  • Page 34 Pin 47 is for DIO type boards with jumpers W2, W3, and W4 in the DIO position. When you configure the SCXI-1160 for an MIO type board, the digital I/O signals of the SCXI-1160 match the digital I/O lines of the MIO-16 board. When used with an SCXI -1341, SCXI-1342, or SCXI-1344 cable assembly, the SCXI-1160 signals match the digital lines of the Lab-NB/Lab-PC/Lab-PC+/Lab-LC boards and the PC-LPM-16 board, respectively.

  • Page 35: Timing Requirements And Communication Protocol

    Configuration and Installation Chapter 2 Table 2-4. SCXIbus to SCXI-1160 Rear Signal Connector to Data Acquisition Board Pin Equivalences MOSI SERDATIN ADIO0 DOUT4 APB3 DIOB3 D*/A DAQD*/A ADIO1 DOUT5 APB2 DIOB2 INTR* SLOT0SEL* ADIO2 DOUT6 APB1 DIOB1 DOUT7 APB0 DIOB0...

  • Page 36: Figure 2-8. Slot-Select Timing Diagram

    Set SERDATIN = bit to be sent. These bits are the data that are being written to the Slot-Select Register. b. SERCLK = 0. c. SERCLK = 1. This rising edge clocks the data. © National Instruments Corporation 2-20 SCXI-1160 User Manual...

  • Page 37: Figure 2-9. Serial Data Timing Diagram

    2. For each bit, starting with the MSB, perform the following action: Establish the desired SERDATIN level corresponding to this bit. SERCLK = 0. SERCLK = 1. This rising edge clocks the data. These bits are the address of the register of interest. SCXI-1160 User Manual 2-21 © National Instruments Corporation...

  • Page 38: Figure 2-10. Address Handler Timing Diagram

    After the Address Handler has been written to, an address line of a register has been asserted. Now you can write to the SCXI-1160 Data Register and read from its Module ID Register or Status Register using the following protocols. The contents of the Module ID Register are reinitialized by deasserting Slot-Select.

  • Page 39: Figure 2-11. Data Register Write Timing Diagram

    Slot 0 Slot-Select Register. 5. If you are not selecting another slot, write zero to the Slot 0 Slot-Select Register. Figure 2-11 illustrates a write to the SCXI-1160 Data Register of the binary pattern: 10000011 00001111 00000000 00000000...

  • Page 40: Figure 2-12. Scxi-1160 Module Id Register Timing Diagram

    SERCLK = 1 (and has not changed since DAQD*/A went low). 2. The Status Register of the SCXI-1160 consists of a single bit that the relays control. You do not need to pulse the SERCLK to read the Status Register: Read the level of the SERDATOUT line.

  • Page 41: Figure 2-13. Scxi-1160 Status Register Timing Diagram

    Configuration and Installation Chapter 2 Figure 2-13 illustrates a read of the SCXI-1160 Status Register after the relays have switched states. SLOT0SEL* DAQD*/A switching SERDATOUT Relays Finish Switching Relays switching = 20 msec maximum switching Figure 2-13. SCXI-1160 Status Register Timing Diagram For further details on programming these signals, refer to Chapter 5, Programming.

  • Page 42: Chapter 3 Theory Of Operation

    Chapter 3 Theory of Operation This chapter contains a functional overview of the SCXI-1160 module and explains the operation of each functional unit making up the SCXI-1160. Functional Overview The block diagram in Figure 3-1 illustrates the key functional components of the SCXI-1160.

  • Page 43: Scxibus Connector

    • Relay channels The SCXI-1160 module is dedicated to switching and controlling power and low-level signal sources. The theory of operation of each of the SCXI-1160 components is explained in the rest of this chapter. SCXIbus Connector Figure 3-2 shows the pinout of the SCXIbus connector.

  • Page 44: Figure 3-2. Scxibus Connector Pin Assignment

    Chapter 3 Theory of Operation RESET* INTR* MISO D*/A CHSGND CHSGND CHSGND CHSGND +5 V +5 V SPICLK MOSI Figure 3-2. SCXIbus Connector Pin Assignment © National Instruments Corporation SCXI-1160 User Manual...

  • Page 45: Scxibus Connector Signal Descriptions

    The signal connections from the rear signal connector to the backplane are shown in Table 3-1. SCXI-1160 User Manual © National Instruments Corporation...

  • Page 46: Digital Interface

    Jumper W5 must be set to position 1 The SCXI-1160 module converts the data acquisition board signals to open-collector signals on the backplane of the SCXI chassis. For the data acquisition board to talk to a slot, the board must first assert the SS* for that slot.

  • Page 47: Digital Control Circuitry

    The digital interface circuitry is divided into a data acquisition section and an SCXIbus section. The SCXI-1160 connects to the SCXIbus via a 4x24 metral receptacle and to the data acquisition board via a 50-pin ribbon-cable header. The digital interface circuitry buffers the digital signals from the data acquisition board and the SCXIbus and sends signals back and forth between the data acquisition board and the SCXIbus.

  • Page 48: Relay Channels

    The Status Register is a 1-bit register that indicates whether or not the relays are switching. Relay Channels The SCXI-1160 consists of 16 independent one form C relays. Each relay has three connections at the front connector–the common (COM), the normally closed (NC), and the normally open (NO) positions, which are available at each relay.
  • Page 49 250 Vrms and a breakdown of 1,500 Vrms. Note: It is important to notice that this module has no access to the analog backplane; this protects the backplane from faults when high voltages are available on the relay contacts. SCXI-1160 User Manual © National Instruments Corporation...

  • Page 50: Register Descriptions

    SCXI-1160 Registers The SCXI-1160 is a class II module. It has four registers and an address handler. The Module ID Register is a 4-byte, read-only register that contains the Module ID number of the SCXI-1160.

  • Page 51: Module Id Register

    After you select the Parking Register, SS* should go high, deselecting the modules and latching all the data. At reset or at power up, the Address Handler content is cleared. SCXI-1160 User Manual © National Instruments Corporation...
  • Page 52 Register Descriptions Module ID Register The Module ID register contains the 4-byte module ID code for the SCXI-1160. This code number is read on the MISO line whenever the Module ID register is accessed. The bytes appear least significant byte first. Within each byte, data is sent out MSB first. Additional data transfers result in all zeros being sent on the MISO line.

  • Page 53: Data Register

    Chapter 4 Data Register The Data Register contains 32 bits that control the state of each relay of the SCXI-1160. Whenever the Address Handler selects the Data Register, the Data Register shifts in the data present on the MOSI line, bit 31 first, and then latches the data when it is deselected. At power up or reset, the Data Register content is unknown and its outputs are not driving the relay coils.

  • Page 54: Status Register

    20 msec have elapsed since the last write to the Data Register before you perform any new operations on the relays. At reset or power up, the Status Register bit is set high (relays are not switching). © National Instruments Corporation SCXI-1160 User Manual...

  • Page 55: Parking Register

    Selecting the Parking Register places the module in a state insensitive to noise and to ESD, which may corrupt the Data Register content and cause the relays to change state. Select the Parking Register by writing FFFF (hexadecimal) to the Address Handler. SCXI-1160 User Manual © National Instruments Corporation...

  • Page 56: Slot 0 Register Descriptions

    The jumper settings in Slot 0 of a chassis determine with which chassis number Slot 0 is identified. From the software perspective, only one Slot-Select Register exists in a system composed of multiple chassis. © National Instruments Corporation SCXI-1160 User Manual...

  • Page 57: Slot-Select Register

    Chassis Bit 4 through 0 – These bits determine which chassis is selected. On the SCXI-1000 chassis, these are don't care bits. SL<3..0> Slot Bit 3 through 0 – These bits determine which slot in the selected chassis is selected. SCXI-1160 User Manual © National Instruments Corporation...

  • Page 58: Chapter 5 Programming

    Requirements and Communication Protocol section in Chapter 2, Configuration and Installation. The rear signal connector pin equivalences to the different National Instruments data acquisition boards are given in Table 5-1. See also Appendix E, SCXI-1160 Cabling. The Data Register is a write-only register.

  • Page 59: Register Selection And Write Procedure

    Programming Chapter 5 Table 5-1. SCXIbus to SCXI-1160 Rear Signal Connector to Data Acquisition Board Pin Equivalences MOSI SERDATIN ADIO0 DOUT4 APB3 DIOB3 D*/A DAQD*/A ADIO1 DOUT5 APB2 DIOB2 INTR* SLOT0SEL* ADIO2 DOUT6 APB1 DIOB1 DOUT7 APB0 DIOB0 SPICLK SERCLK...

  • Page 60: Initialization

    For a timing illustration of a Data Register write, see Figure 2-11, Data Register Write Timing Diagram. Initialization The SCXI-1160 powers up with its Data Register content unknown. If you reset the chassis, the Data Register content stays unchanged and the relays maintain their previous states. Examples This section describes how to program the SCXI-1160, either alone or in conjunction with other modules.

  • Page 61: Example 1

    Slot 1. Example 2 An SCXI-1000 chassis has four SCXI-1160 modules in Slots 1, 2, 3, and 4. The SCXI-1160 in Slot 4 is cabled to the data acquisition board. You want to connect the NO position to the COM position on all of the modules and leave all the other channels unchanged.

  • Page 62: Example 3

    Programming Example 3 You have a multichassis system with an SCXI-1160 in Slot 4 of chassis 1, and another SCXI-1160 in Slot 11 of chassis 2. You want to do the following: 1. In chassis 1, connect the NC position to the COM position on channels 1, 5, and 8, and connect the NO position to the COM position on channels 3 and 4.

  • Page 63: Appendix A Specifications

    Appendix A Specifications This appendix lists the specifications for the SCXI-1160. These are typical at 25° C and 50% humidity unless otherwise stated. The operating temperature range is 0° to 50° C. Contact Ratings Switching power (resistive load) 500 VA maximum 60 W maximum for V ≤30 V...

  • Page 64: Physical

    Storage Environment Temperature -20° to 70° C Relative humidity 5% to 90% noncondensing Safety Designed in accordance with UL 3121-1 for installation category II, pollution degree 2, for altitudes up to 2000 m. SCXI-1160 User Manual © National Instruments Corporation...

  • Page 65: Appendix B Rear Signal Connector

    Appendix B Rear Signal Connector This appendix describes the pinout and signal names for the SCXI-1160 50-pin rear signal connector, including a description of each connection. Figure B-1 shows the pin assignments for the SCXI-1160 rear signal connector. 9 10...

  • Page 66: Rear Signal Connector Signal Descriptions

    MISO lines. Pin 31 is for DIO boards. Pin 37 is for MIO boards and jumper W4 selects it. See the Timing Requirements and Communication Protocol section in Chapter 2, Configuration and Installation, for more detailed information on timing. SCXI-1160 User Manual © National Instruments Corporation...

  • Page 67: Appendix Cscxibus Connector

    Appendix C SCXIbus Connector This appendix describes the pinout and signal names for the SCXI-1160 96-pin SCXIbus connector, including a description of each connection. Figure C-1 shows the pinout of the SCXI-1160 SCXIbus connector. © National Instruments Corporation SCXI-1160 User Manual...

  • Page 68: Figure C-1. Scxibus Connector Pin Assignment

    SCXIbus Connector Appendix C RESET* INTR* MISO D*/A CHSGND CHSGND CHSGND CHSGND +5 V +5 V SPICLK MOSI Figure C-1. SCXIbus Connector Pin Assignment SCXI-1160 User Manual © National Instruments Corporation...

  • Page 69: Scxibus Connector Signal Descriptions

    SCXIbus to the module. Open collector. I/O. Slot Select – When low, enables module communication over the SCXIbus. Totem pole. Input. All other pins are not connected. Further information is given in Chapter 3, Theory of Operation. © National Instruments Corporation SCXI-1160 User Manual...

  • Page 70: Figure D-1. Scxi-1160 Front Connector Pin Assignment

    Appendix D SCXI-1160 Front Connector This appendix describes the pinout and signal names for the SCXI-1160 front connector, including a description of each connection. Figure D-1 shows the pin assignments for the SCXI-1160 front connector. Signal Column Signal Number Name...

  • Page 71: Front Connector Signal Descriptions

    SCXI-1160 Front Connector Appendix D Front Connector Signal Descriptions Signal Name Description A1, A3, A5, A7, NO <15..0> Normally Open Contact – These are the A9, A11, A13, normally open contacts of the relays A15, A17, A19, 15 through 0.

  • Page 72: Appendix Escxi-1160 Cabling

    Appendix E SCXI-1160 Cabling This appendix describes how to use and install the hardware accessories for the SCXI-1160: • SCXI-1340 cable assembly • SCXI-1341 Lab-NB, Lab-PC, and Lab-PC+ cable assembly • SCXI-1342 PC-LPM-16 cable assembly • SCXI-1344 Lab-LC cable assembly •...

  • Page 73: Scxi-1340 Installation

    The SCXI-1340 rear panel gives the module and the chassis both mechanical and electrical shielding. Table E-1 lists the pin equivalences of the MIO-16 and DIO-24 boards and the SCXI-1160. Table E-1. SCXI-1160 and Board Pinout Equivalences SCXI-1160 Rear Signal...

  • Page 74: Scxi-1341 Lab-Nb, Lab-Pc, Or Lab-Pc+ And Scxi-1344 Lab-Lc Cable Assembly

    SCXI-1180 feedthrough panel or SCXI-1181 breadboard module. The adapter board gives the Lab boards full access to the digital control lines. The position of jumper W1 on the SCXI-1341 and SCXI-1344 is irrelevant because the SCXI-1160 does not use jumper W1. Table E-2 lists the SCXI-1341 and SCXI-1344 pin translations.

  • Page 75: Scxi-1341 And Scxi-1344 Installation

    +5 V 34-35 No Connect All other pins of the Lab board pinout are not sent to the SCXI-1160 rear signal connector. SCXI-1341 and SCXI-1344 Installation Follow these steps to install the SCXI-1341 or SCXI-1344: 1. Make sure that the computer and the SCXI chassis are turned off.

  • Page 76: Scxi-1342 Pc-Lpm-16 Adapter Board

    No Connect DOUT4 SERDATIN DOUT5 DAQD*/A DOUT6 SLOT0SEL* DOUT7 SERCLK OUT2 No Connect +5 V 34-35 No Connect All other pins of the PC-LPM-16 pinout are not sent to the SCXI-1160 rear signal connector. © National Instruments Corporation SCXI-1160 User Manual...

  • Page 77: Scxi-1342 Installation

    The other end of the cable is divided into two 50-pin connectors. Use positions 1 through 50 of the NB5 connector to control the SCXI-1160 and the SCXIbus via serial communication. Positions 51 through 100 of the NB5 cable are not used by the SCXI-1160 for serial communication.

  • Page 78: Scxi-1351 And Nb5 Cable Installation

    Appendix E SCXI-1160 Cabling Table E-4. SCXI-1160, DIO-96, AT-MIO-16D, and AT-MIO-64F-5 Pinout Equivalences SCXI-1160 Rear Signal DIO-96 AT-MIO-16D AT-MIO-64F-5 Serial Connector Board Equivalent DIG GND (MIO) DIG GND DIG GND SERDATIN APB3 ADIO0 ADIO0 SERDATOUT (MIO) BDIO0 BDIO0 DAQD*/A APB2...

  • Page 79: Scxi-1348 Dio-32F Adapter Board

    DIO-32F board to the other piece, the adapter board. The adapter board converts the signals from the DIO-32F I/O connector to a format compatible with the SCXI-1160 rear signal connector pinout. The adapter board also has an additional male breakout connector that provides the unmodified DIO-32F signals for use with an SCXI-1180 feedthrough panel or SCXI-1181 breadboard module.

  • Page 80: Table E-5. Scxi-1348 Pin Translations

    No Connect DIOA1 No Connect DIOA3 No Connect DIOA7 No Connect DIOA5 No Connect DIOB5 No Connect DIOB2 DAQD*/A DIOB7 No Connect DIOB6 No Connect DIOB0 SERCLK DIOB3 SERDATIN DIOB4 No Connect DIOB1 SLOT0SEL* © National Instruments Corporation SCXI-1160 User Manual...

  • Page 81: Scxi-1348 Installation

    4. Screw in the rear panel to the threaded strip in the rear of the chassis. 5. Screw the front panel into the front threaded strip, as shown in Figure E-4. Check the installation. SCXI-1160 User Manual E-10 © National Instruments Corporation...

  • Page 82: Figure E-3. Scxi-1180 Rear Connections

    Note : If you are using the SCXI-1180 with an SCXI-1351 and an NB5 cable, connect the SCXI-1180 breakout connector to the female connector on the SCXI-1351. Place the SCXI-1180 to the left of the SCXI-1351 (looking to the front of the chassis). © National Instruments Corporation E-11 SCXI-1160 User Manual...

  • Page 83: Scxi-1302 50-Pin Terminal Block

    5. Tighten the large strain relief screws to secure the wires. 6. Snap the cover back in place. 7. Reinsert the rear grounding screw. The terminal block is now ready to be connected to the front panel connector. SCXI-1160 User Manual E-12 © National Instruments Corporation...

  • Page 84: Scxi-1302 Installation

    © National Instruments Corporation E-13 SCXI-1160 User Manual...

  • Page 85: Scxi-1351 Installation

    Check the installation. Multiple-Chassis Connections for the SCXI-1160 The SCXI-1160 can operate in a multiple-chassis system with the DIO-24, DIO-96, MIO-16, and AT-MIO-64F-5 boards. A multiple-chassis system can consist of up to eight SCXI-1001 chassis controlled by the same data acquisition board. Notice that you cannot use the SCXI-1000 in a multiple-chassis system.

  • Page 86: Scxi-1343 Rear Screw Terminal Adapter

    5. Plug the SCXI-1350 into the back of an SCXI module in the first chassis so that the module rear connector mates with the front connector on the SCXI-1350 adapter board. When you are connecting to an SCXI-1160, be sure to set the jumpers for either a DIO-type or an MIO-type board as needed.

  • Page 87: Scxi-1343 Installation

    4. Plug the adapter board front connector into the module rear signal connector. A corner of the adapter board will enter the upper board guide of the chassis. 5. Screw the rear panel to the threaded strips in the rear of the chassis. SCXI-1160 User Manual E-16 © National Instruments Corporation...

  • Page 88: Aromat Relay Technical Data

    This appendix contains technical data on Aromat Corporation relays. Aromat relays are used on the SCXI-1160. * Copyright © Aromat Corporation, 1991. Reprinted with permission of copyright owner. All rights reserved. Aromat Corporation. 1991 Relay Technical Data Book. © National Instruments Corporation SCXI-1160 User Manual...
