Schematic - Flashlight; Parts List - Mag-lite C CELL Repair Manual

PARTS LIST FOR BLACK 'D' AND BLACK 'C' MAG-LITE® FLASHLIGHTS (PREFIX 'D' or 'C' SERIAL NUMBER)
ITEM NO. QTY.
1 1
2 1
3 1
4 1
5 1
6 1
7 1
7 1
9 1
10 1
10 1
10 1
10 1
10 1
11 1
11 1
12 1
12 1
13 1
13 1
13 1
13 1
13 1
13 1
13 1
13 1
13 1
13 1
14 1
14 1
15 1
15 1
17 1
17 1
18 1
19 1
19 1
20 1
20 1
6
ML Rev.1 8/03

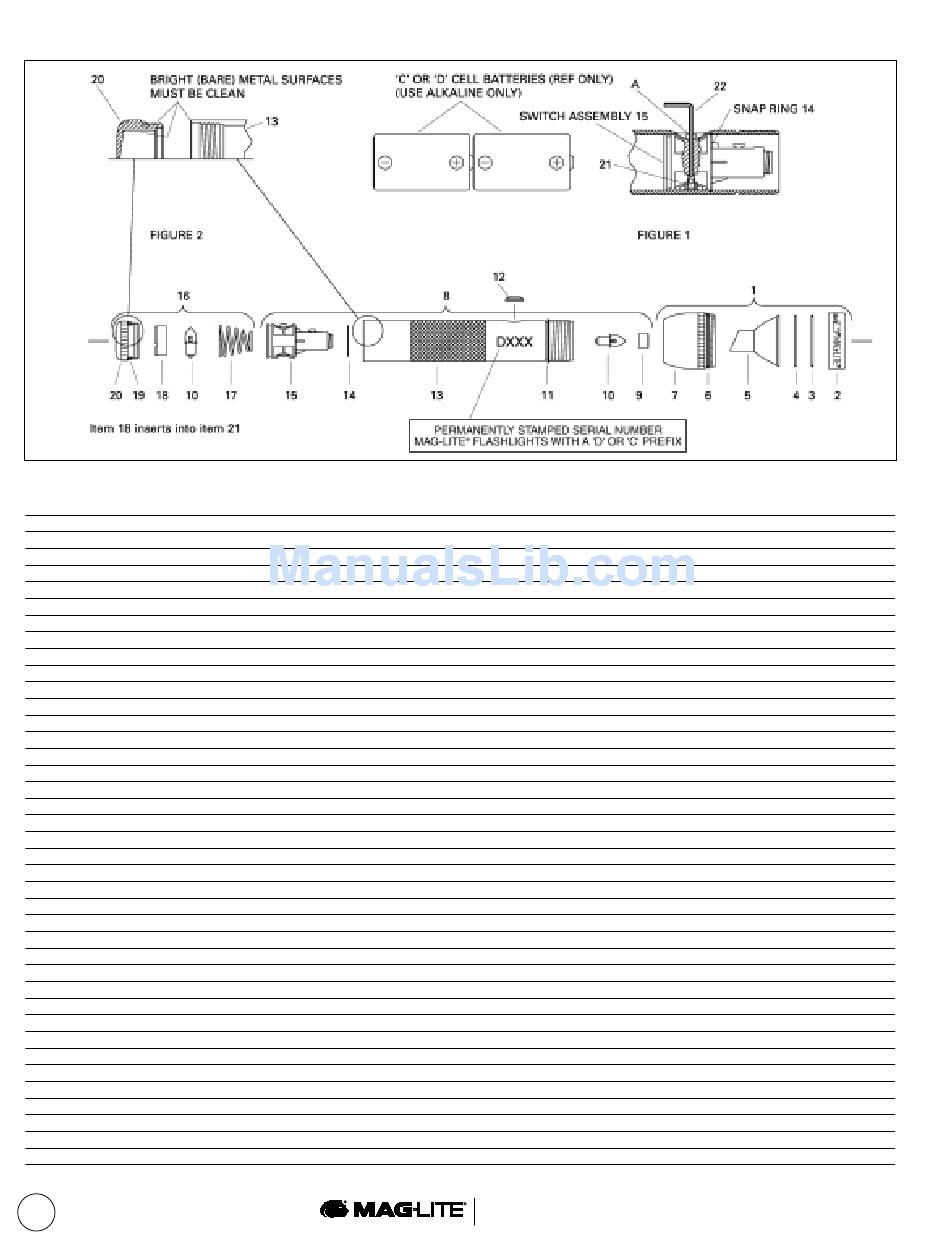

SCHEMATIC - FLASHLIGHT

PART NO.
201-000-157
108-000-026
108-000-031
108-000-036
108-000-025
201-000-161
201-000-475
200-000-057
LWSA201
LWSA301
LWSA401
LWSA501
LWSA601
108-000-574
108-000-206
108-000-034
108-000-575
201-000-178
201-000-179
201-000-180
201-000-181
201-000-182
201-000-476
201-000-477
201-000-478
201-000-479
201-000-480
400-000-067
400-000-122
108-000-208
108-000-498
108-000-032
108-000-033
108-000-037
108-000-207
108-000-030
201-000-191
200-000-100
DESCRIPTION
HEAD SUB-ASSEMBLY, 'D' or 'C'
FACE CAP, Black
O RING, FACE CAP
CLEAR LENS
PARABOLIC REFLECTOR
O-RING, HEAD C & D
HEAD, 'D' SIZE, Black
HEAD, 'C' SIZE, Black
BULB RETAINER
LAMP, 2-CELL KRYPTON - ALKALINE
LAMP, 3-CELL KRYPTON - ALKALINE
LAMP, 4-CELL KRYPTON - ALKALINE
LAMP, 5-CELL KRYPTON - ALKALINE
LAMP, 6-CELL KRYPTON - ALKALINE
O-RING, 'C' BARREL
O-RING, 'D' BARREL
SWITCH SEAL, 'D'
SWITCH SEAL, 'C'
BARREL 2D
BARREL 3D
BARREL 4D
BARREL 5D
BARREL 6D
BARREL 2C
BARREL 3C
BARREL 4C
BARREL 5C
BARREL 6C
SNAP RING, 'D'
SNAP RING, 'C'
SWITCH SUB-ASSEMBLY 'D' SIZE
SWITCH SUB-ASSEMBLY 'C' SIZE
SPRING, TAILCAP 'D' SIZE
SPRING, TAILCAP 'C' SIZE
BULB PROTECTOR, 'C' & 'D'
O-RING, TAILCAP 'D' SIZE
O-RING, TAILCAP 'C' SIZE
TAILCAP, 'D', Black
TAILCAP, 'C', Black
C & D F l a s h l i g h t
421-000-391
