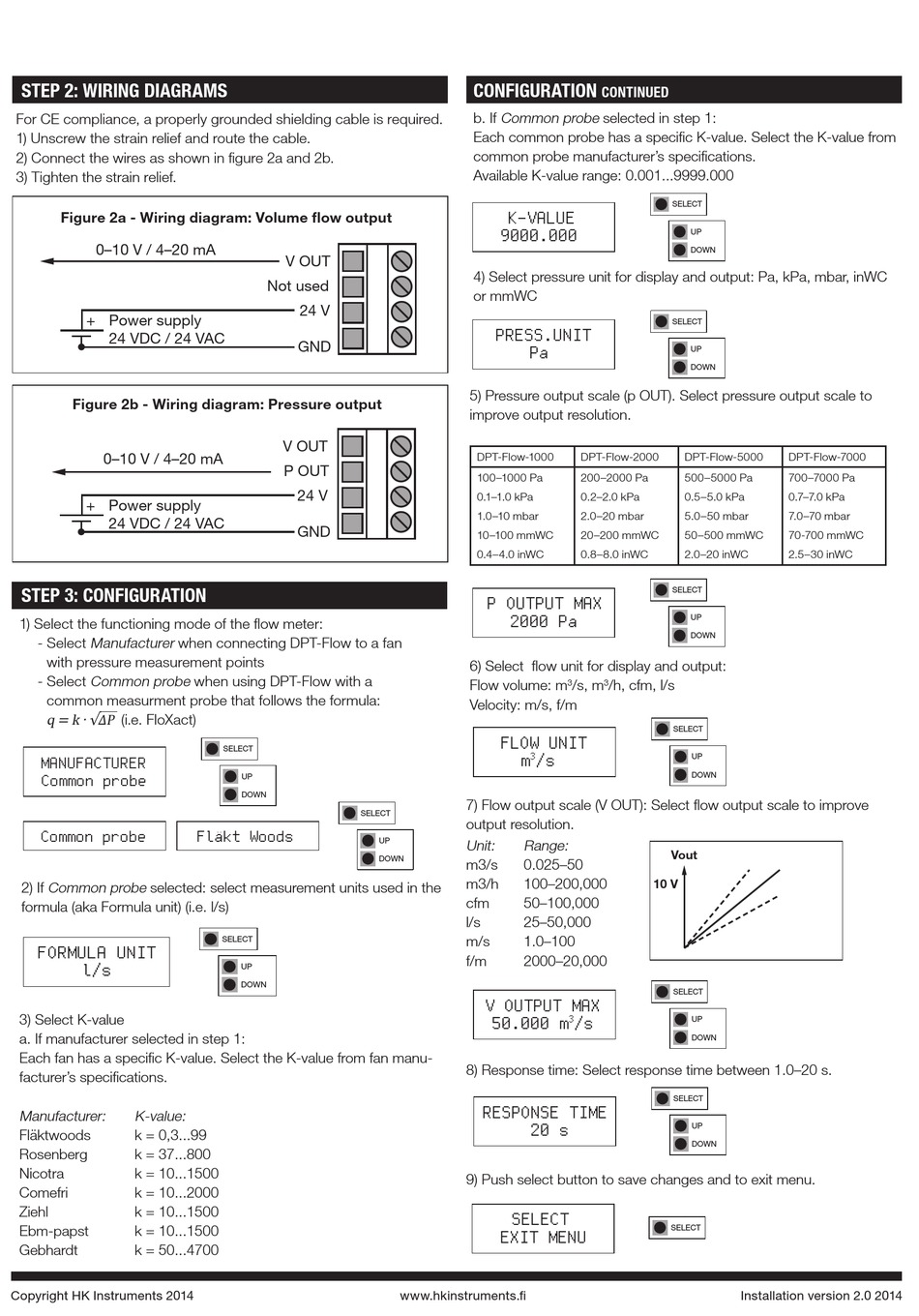

STEP 2: WIRING DIAGRAMS
For CE compliance, a properly grounded shielding cable is required.
1) Unscrew the strain relief and route the cable.
2) Connect the wires as shown in figure 2a and 2b.
3) Tighten the strain relief.
Figure 2a - Wiring diagram: Volume flow output
0–10 V / 4–20 mA
+ Power supply
24 VDC / 24 VAC
Figure 2b - Wiring diagram: Pressure output
0–10 V / 4–20 mA
+ Power supply
24 VDC / 24 VAC
STEP 3: CONFIGURATION
1) Select the functioning mode of the flow meter:
- Select Manufacturer when connecting DPT-Flow to a fan
with pressure measurement points
- Select Common probe when using DPT-Flow with a
q = k ∙ √∆P (i.e. FloXact)
common measurment probe that follows the formula:
MANUFACTURER
Common probe
Common probe
2) If Common probe selected: select measurement units used in the
formula (aka Formula unit) (i.e. l/s)
FORMULA UNIT
l/s
3) Select K-value
a. If manufacturer selected in step 1:
Each fan has a specific K-value. Select the K-value from fan manu-
facturer's specifications.
Manufacturer:
K-value:
Fläktwoods
k = 0,3...99
Rosenberg
k = 37...800
Nicotra
k = 10...1500
Comefri
k = 10...2000
Ziehl
k = 10...1500
Ebm-papst
k = 10...1500
Gebhardt
k = 50...4700
Copyright HK Instruments 2014
V OUT
Not used
24 V
GND
V OUT
P OUT
24 V
GND
SELECT
UP
DOWN
SELECT
Flakt Woods
SELECT
UP
DOWN
CONFIGURATION
b. If Common probe selected in step 1:
Each common probe has a specific K-value. Select the K-value from
common probe manufacturer's specifications.
Available K-value range: 0.001...9999.000
K-VALUE
9000.000
4) Select pressure unit for display and output: Pa, kPa, mbar, inWC
or mmWC
PRESS.UNIT
Pa
5) Pressure output scale (p OUT). Select pressure output scale to
improve output resolution.
DPT-Flow-1000
100–1000 Pa
0.1–1.0 kPa
1.0–10 mbar
10–100 mmWC
0.4–4.0 inWC
P OUTPUT MAX
2000 Pa
6) Select flow unit for display and output:
Flow volume: m
Velocity: m/s, f/m
FLOW UNIT
m
/s
3
7) Flow output scale (V OUT): Select flow output scale to improve
output resolution.
UP
Unit:
Range:
DOWN
m3/s
0.025–50
m3/h
100–200,000
cfm
50–100,000
l/s
25–50,000
m/s
1.0–100
f/m
2000–20,000
V OUTPUT MAX
50.000 m
8) Response time: Select response time between 1.0–20 s.
RESPONSE TIME
20 s
9) Push select button to save changes and to exit menu.
SELECT
EXIT MENU
www.hkinstruments.fi
CONTINUED
SELECT
UP
DOWN
SELECT
UP
DOWN
DPT-Flow-2000
DPT-Flow-5000
200–2000 Pa
500–5000 Pa
0.2–2.0 kPa
0.5–5.0 kPa
2.0–20 mbar
5.0–50 mbar
20–200 mmWC
50–500 mmWC
0.8–8.0 inWC
2.0–20 inWC
SELECT
UP
DOWN
/s, m
/h, cfm, l/s
3
3
SELECT
UP
DOWN
Vout
10 V
SELECT
/s
3
UP
DOWN
SELECT
UP
DOWN
SELECT
DPT-Flow-7000
700–7000 Pa
0.7–7.0 kPa
7.0–70 mbar
70-700 mmWC
2.5–30 inWC
Installation version 2.0 2014
