USER MANUAL
Tron TR30
www.jotron.com
www.jotron.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tron TR30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jotron Tron TR30

Summary of Contents for jotron Tron TR30

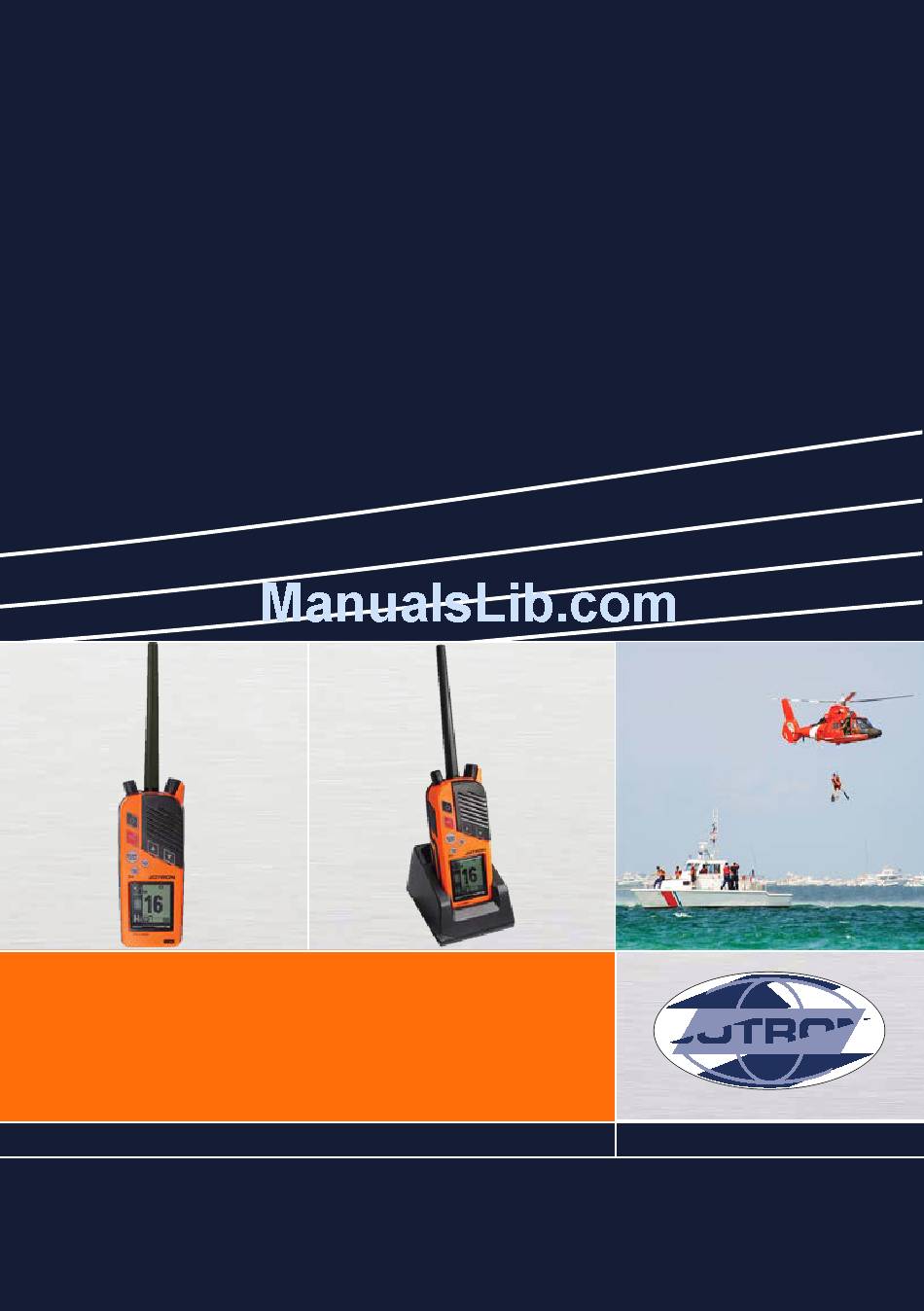

  • Page 1 USER MANUAL Tron TR30 www.jotron.com www.jotron.com...

  • Page 2: Table Of Contents

    Table of contents List of figures Abbreviations General Standards Product description Product image Emergency and test battery safety instructions Hazards identification First aid measures Fire fighting measures Accidental release measures Handling and storage 6.5.1 Transportation Rechargeable battery safety instructions Hazards identification First aid measures Fire fighting measures Accidental release measures...
  • Page 3 Tron TR30 components Battery charger components Antenna Emergency battery (GMDSS) Battery endurance 8.5.1 Battery charger Technical specifications Product specification Installation 10.1 Changing the battery Operation instructions (GMDSS radio) 11.1 Emergency mode 11.2 Channel selection 11.3 Channel 16 button 11.4 Volume adjustment 11.5...
  • Page 4 Watch 12.10.1 Dual watch 12.10.2 Triple watch 12.10.3 Scan 12.11 Menus Maintenance 13.1 Taking care of a Tron TR30 13.2 Regular testing 13.3 Cleaning of dirt and oil Test and maintenance records Channels and frequencies 15.1 GMDSS 15.2 International Page - 4 -...
  • Page 5 Warranty 16.1 Warranty claims 16.2 Service 16.3 Service agents Optional accessories Spare parts Recycling and disposal Emergency instructions Page - 5 -...

  • Page 6: List Of Figures

    List of figures Figure 1 Tron TR30 Figure 2 Tron TR30 in the battery charger Figure 3 Tron TR30 components Figure 4 Battery charger components Figure 5 Emergency instructions overview Page - 6 -...

  • Page 7: Abbreviations

    Abbreviations European Agreement concerning the International Carriage of Dangerous Goods by Road The Code of Federal Regulations Dual Watch (Receiver altering between two different channels) ECHA European Chemical Agency Electromagnetic compatibility Electrostatic discharge European Telecommunications Standard ETSI European Telecommunications Standards Institute GMDSS Global Maritime Distress and Safety System Hardware...
  • Page 8 Radio Standards Specification Safety Data Sheet Sub miniature version A connector SOLAS Safety of Life at Sea (An international maritime safety treaty) STCW Standards of training, certification and watch keeping for seafarers Software Triple Watch United Nations Volts, alternating current (AC) Very High Frequency Page - 8 -...

  • Page 9: General

    All information contained within this manual has been verified and is to our knowledge correct, however, Jotron reserves the right to make changes to any product(s) or module(s) described herein to improve reliability, function or design, without further notice.
  • Page 10 This symbol is used to highlight information that if not followed can result in personal injury or bodily harm. Jotron is not liable for consequential or special damages and cannot be held responsible for any damages or injury arising either directly or...

  • Page 11: Standards

    Apparatus (All Frequency Bands). RSS-182, Issue 5: Jan. 2012 Maritime Radio Transmitters and Receivers in the Band 156- 162.5 MHz. Tron TR30 (regular mode - VHF) has been verified, tested and meets the following product standards: Page - 11 -...
  • Page 12 EN 62479: 2010 Assessment of the compliance of low power electronic and electrical equipment with the basic restrictions related to human exposure to electromagnetic fields (10 MHz to 300 GHz) ETSI EN 301 178-1, V1.3.1: 2007-02 Electromagnetic compatibility and Radio spectrum Matters (ERM);...
  • Page 13 IEC 62209-2: 2010 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices - Human models, instrumentation, and procedures - Part 2: Procedure to determine the specific absorption rate (SAR) for wireless communication devices used in close proximity to the human body (frequency range of 30 MHz to 6 GHz) IEC 62368-1:2014 Audio/video, information and communication technology...
  • Page 14 Brazil, Canada, China, Europe, Korea, Russia and the United States of America. The relevant CE marking of CE0168! is found on the product and the packaging. All statements of conformity are available at: www.jotron.com Page - 14 -...

  • Page 15: Product Description

    Product description The Tron TR30 is a ruggedly designed radio made for easy operation. It is a portable survival craft two-way VHF radio which is possible to operate using one hand, even when wearing gloves. The high contrast graphical display including integrated back lighting of the display and keys are very effective for visibility and usage in low light conditions.
  • Page 16 • Battery charger • Antenna • Belt clip • Wrist strap Part number: 87950 Tron TR30 Page - 16 -...

  • Page 17: Product Image

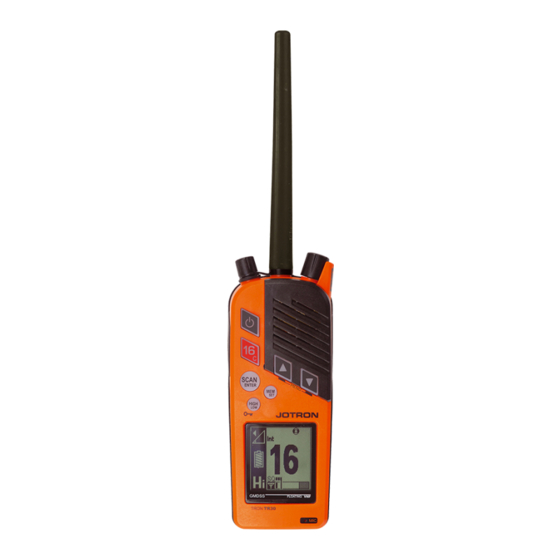

    Product image Figure 1 Tron TR30 Page - 17 -...

  • Page 18: Figure 2 Tron Tr30 In The Battery Charger

    Figure 2 Tron TR30 in the battery charger Page - 18 -...

  • Page 19: Emergency And Test Battery Safety Instructions

    Emergency and test battery safety instructions Under EC, European Chemical Agency (ECHA) and US, Occupational Safety and Health Admin (OSHA) legislation this product is classified as a manufactured article, which does not release or otherwise result in exposure to a hazardous chemical under the normal conditions of use.

  • Page 20: Hazards Identification

    The below safety information is extracted from EVE Energy SDS (sections 4, 5 & 6). Hazards identification The lithium thionyl chloride batteries used in the Tron TR30 and described herein are sealed units. Under normal conditions, the battery is hermetically sealed. These batteries are not hazardous when used as intended and recommended.

  • Page 21: First Aid Measures

    Eye contact: Contents of an open battery can cause severe irritation. 6.2 First aid measures Ingestion: Do not induce vomiting or consume food or drink. Seek medical attention immediately. Inhalation: Provide fresh air and seek medical attention. Skin contact: Remove contaminated clothing and shoes and wash skin with soap and water.

  • Page 22: Accidental Release Measures

    6.5 Handling and storage The Tron TR30 should be stored in a cool and well ventilated area. Elevated temperatures can result in a reduction of battery life. In locations that handle large quantities of lithium batteries, such as a warehouse, lithium batteries should be isolated from unnecessary combustibles.

  • Page 23: Transportation

    6.5.1 Transportation Detailed support documentation regarding transportation regulations for batteries in accordance with ICAO/IATA, IMDG code and/or ADR/RID can be found at www.jotron.com, under Product Safety Information (PSI) and/or statement in accordance with UN test 38.3 Page - 23 -...

  • Page 24: Rechargeable Battery Safety Instructions

    Rechargeable battery safety instructions Under EC, European Chemical Agency (ECHA) and US, Occupational Safety and Health Admin (OSHA) legislation this product is classified as a manufactured article, which does not release or otherwise result in exposure to a hazardous chemical under the normal conditions of use.

  • Page 25: Hazards Identification

    MSDS info from Pony Test Lab's report (sections 4, 5 & 6). Hazards identification The lithium thionyl chloride batteries used in the Tron TR30 and described herein are sealed units. Under normal conditions, the battery is hermetically sealed. These batteries are not hazardous when used as intended and recommended.

  • Page 26: First Aid Measures

    Ingestion: Swallowing a battery can be harmful. Inhalation: Contents of an open battery can cause respiratory irritation. Skin contact: Contents of an open battery can cause skin irritation. Eye contact: Contents of an open battery can cause severe irritation. 7.2 First aid measures Ingestion: Do not induce vomiting or consume food or drink.

  • Page 27: Accidental Release Measures

    produce sparks when subjected to high temperatures (›150°C/302°F), when damaged or abused (e.g. mechanical damage or electrical overcharging), may burn rapidly with flare-burning effect; may ignite other batteries in close proximity. Any person responding to such an emergency should wear a self- contained breathing apparatus.

  • Page 28: Handling And Storage

    Handling and storage The Tron TR30 should be stored in a cool and well ventilated area. Elevated temperatures can result in a reduction of battery life. In locations that handle large quantities of lithium batteries, such as a warehouse, lithium batteries should be isolated from unnecessary combustibles.

  • Page 29: Functional Description

    Functional description Tron TR30 components An overview of the radio components. Figure 3 Tron TR30 components Page - 29 -...
  • Page 30 Antenna Volume, squelch and monitor control Loudspeaker Up arrow button Down arrow button Mem set (memory button) Emergency mode indicator Channel designator Microphone Squelch and  signal strength indicator Hi/medium/low (transmitter power indicator) Battery charge indicator Volume control indicator High/Low button Scan/Enter Instant access channel 16 and call channel Transmit button...

  • Page 31: Battery Charger Components

    8.2 Battery charger components An overview of the battery charger components. Figure 4 Battery charger components Battery charger storage Page - 31 -...

  • Page 32: Antenna

    LED  indicator 8.3 Antenna The antenna for the Tron TR30 is fitted with a standard SMA connector. You can also connect a remote antenna for a fixed application. The Tron TR30 unit is not waterproof when the standard antenna is not attached or if the antenna is not assembled correctly.

  • Page 33: Battery Endurance

    It is safe to store the emergency battery in the charger. Always bring a sealed emergency battery with the radio when boarding a lifeboat or raft. Doing any of the following could result in sever burn hazard or fire explosion: •...

  • Page 34: Battery Charger

    * The hours indicated are based on 2W (tested at -20 degrees celsius). ** Emergency battery multi-usage hours have been tested in accordance with 10:10:80 ratio (Send%:Listen%:Standby%). ** Rechargeable battery multi-usage hours have been tested in accordance with 5:5:90 ratio (Send%:Listen%:Standby%). For more information refer to the ETS 300 225 standard.
  • Page 35 To reduce the charging time it is recommended that the battery is changed at room temperature (15°C to 25°). The battery charging indicator on the screen display shows the approximate status of the battery and indicates when recharging is necessary. Leaving the radio switch on will increase the charging time.

  • Page 36: Technical Specifications

    Technical specifications Product specification Overall: Emergency mode (emergency battery) Channel spacing 25 kHz Operating temperature range -20 to +55 Size (W/H/D) 61mm x 157mm x 40mm (Dept with belt clip 47mm) Full buoyancy Weight Approximately 300 g Receiver: Emergency mode (emergency battery) Frequency range TX: 154-157.425MHz / RX: 156-162 MHz...
  • Page 37 Transmitter: Emergency mode (emergency battery) Frequency range TX: 154-157.425MHz / RX: 156-162 MHz Transmitter output power (fully Low: 1W, High: 2W charged battery) Harmonics and spurious < 0.25 µW Frequency error < +1.5 kHz Adjacent channel power < -70dB The nominal viewing distance is 0.8m. Page - 37 -...

  • Page 38: Installation

    10 Installation Connect the adapter to the charger prior to first time use. To install, do the following: 1. Connect the antenna. When assembling the antenna to the radio, ensure you hold it at the base while turning it clockwise. When the antenna starts to resist turning, turn it another 90 degrees.

  • Page 39: Changing The Battery

    5. Place the radio in a location away from direct sea spray, chemicals, oil and vibration. The Tron TR30 must be easily accessible at all times for testing and maintenance. There are two screw holes available such that the charger can be securely mounted to a flat surface.
  • Page 40 The radio is only watertight when the battery, antenna and jack cover correctly assembled. Battery replacement must be done in a dry environment or under shelter. Page - 40 -...

  • Page 41: Operation Instructions (Gmdss Radio)

    11 Operation instructions (GMDSS radio) 11.1 Emergency mode When the emergency battery is connected, the radio starts in the emergency mode. Only basic functionality is available to the user in this mode. This battery is for use in a distress situation. If the jack cover is removed, for example when using an accessory, the radio is no longer waterproof.

  • Page 42: Channel Selection

    11.2 Channel selection Function: Channel selection 1. Press or press and hold the up/down arrow buttons to change the channel. When a emergency battery is connected, only GMDSS channels are available. For information regarding available and active VHF marine radio channels and frequencies, please refer to ITU standards, with reference to the current World Radio Conference (WRC) agreement.

  • Page 43: Volume Adjustment

    The transmit power will always be set to Hi power when using the channel 16 button, even if you switch from another channel. 11.4 Volume adjustment Function: Display screen: Volume adjustment 1. Turn the knob to adjust the volume. The volume symbol in the display indicates the volume level. Ensure that you do not press the knob while adjusting the volume.

  • Page 44: Lock And Unlock

    When the knob is pressed twice, it opens the squelch immediately. The squelch bar appears on the screen display indicating the current active sensitivity level. When adjusted fully to the left, the squelch is completely open, adjusting to the right lowers the sensitivity.

  • Page 45: External Accessories

    When using an accessory, the radio is no longer waterproof. The antenna and jack cover must be correctly assembled on the radio in order for it to be completely waterproof, it is therefore not recommended to use accessories while using the Tron TR30 in the emergency mode. 11.8 Watch...

  • Page 46: Dual Watch

    The radio will continue to watch channel 16 while receiving on other channels. 11.8.1 Dual watch Function: Display screen: Dual watch (DW) The DW function allows the user to monitor channel 16 and one selected channel alternately. To activate or deactivate DW, do the following: 1.
  • Page 47 Press the up/down arrow buttons at the same time to enter/exit the menu system. Use the up/down arrow buttons to navigate and select using Scan/Enter. Exit: Display screen: Settings: Display screen: Menu number: Use this menu option to adjust the following settings: •...
  • Page 48 Key volume: Display screen: Menu number: Backlight time: Display screen: Menu number: Backlight level: Display screen: Menu number: • fff, low, high (0,1,2) Page - 48 -...
  • Page 49 Contrast: Display screen: Menu number: Key lock time: Display screen: Menu number: System: Display screen: Menu number: Use this menu option to access the following information: • Serial Number • SW version • HW version Serial Number: Display screen: Menu number: Page - 49 -...
  • Page 50 SW Version: Display screen: Menu number: HW Version: Display screen: Menu number: Page - 50 -...

  • Page 51: Operation Instructions (Maritime Vhf Radio)

    12 Operation instructions (Maritime VHF radio) 12.1 Regular radio mode When the rechargeable battery is connected additional functionality is available. All VHF channels are available with triple watch and custom channel scan. In addition, three transmit power levels are also available. Function Display screen: Turning on a radio using a rechargeable battery.

  • Page 52: Channel 16 Button

    When a primary battery is connected, only GMDSS channels are available. For information regarding available and active VHF marine radio channels and frequencies, please refer to ITU standards, with reference to the current World Radio Conference (WRC) agreement. For an overview, refer to the Navigation Center website (www.navcen.uscg.gov, under Maritime Information, Maritime Telecommunications) 12.3 Channel 16 button...

  • Page 53: Call Channel

    12.4 Call channel Function: Display screen: Call channel To program a call channel, do the following: 1. Enable triple watch (TW). 2. Press and hold the channel 16 button for 2 seconds to enter the call channel. The radio will go to the default call channel (Channel 9). 3.

  • Page 54: Custom Channels

    7. Scan to exit the programming mode. 12.5 Custom channels In the regular radio mode the Tron TR30 is capable of storing up to 20 custom channels. To view pre-programmed custom channels, select the Custom channel menu (menu option 4).

  • Page 55: Volume Adjustment

    12.6 Volume adjustment Function: Display screen: Volume adjustment 1. Turn the knob to adjust the volume. The volume symbol in the display indicates the volume level. Ensure that you do not press the knob while adjusting the volume. 12.7 Squelch adjustment Function: Display screen: Squelch adjustment...

  • Page 56: Lock And Unlock

    The signal strength of the current channel appears on the bar below the squelch bar. If the received signal is strong enough, the squelch opens and voice is received. This is indicated by the Rx symbol. 12.8 Lock and unlock Function: Display screen: Lock/Unlock...

  • Page 57: Watch

    When using an accessory, the radio is no longer waterproof. The antenna and jack cover must be correctly assembled on the radio in order for it to be completely waterproof, it is therefore not recommended to use accessories while using the Tron TR30 in the emergency mode. 12.10 Watch...

  • Page 58: Triple Watch

    Dual watch (DW) The DW function allows the user to monitor channel 16 and one selected channel alternately. The channel search indicator is visible on the display, however, the channels do not appear in real time. To select DW, do the following: 1.
  • Page 59 however, the channels do not appear in real time. To select TW, do the following: 1. Press the up/down arrow buttons at the same time to enter the menu. 2. Using the arrow buttons, select Settings. 3. Using the arrow buttons, select DW/TW. 4.

  • Page 60: Scan

    1. Press and hold 16 for 2 seconds to enter call channel. 2. Press and hold 16 again to enter the call channel programming screen. 3. Press up/down arrow buttons to select the desired channel. 4. Press and hold Mem until you hear a beep. The current value updates within approximately 2 seconds.
  • Page 61 When scan is active the scan program screen opens. Function: Display screen: Visual method The signal strength of the selected channel appears on the signal strength bar. You can store and delete memory channels for scanning in two ways, do one of the following: •...

  • Page 62: Menus

    3. Use the up/down arrow buttons to select the desired channel. 4. Press and hold Mem until you hear a beep to add or remove the current channel (wait approximately 2 seconds). 5. Press Scan to exit programming mode. 6. Press and hold Scan for 2 seconds to activate Scan. 12.11 Menus Menus: Display screen:...
  • Page 63 Settings: Display screen: Menu number: Use this menu option to adjust the following settings: • Key sound • Key volume • DW/TW • Backlight time • Backlight level • Contrast • Key lock time • Channel set Key sound: Display screen: Menu number: Page - 63 -...
  • Page 64 Key volume: Display screen: Menu number: DW/TW: Display screen: Menu number: Backlight time: Display screen: Menu number: Backlight level: Display screen: Menu number: • fff, low, high (0,1,2) Page - 64 -...
  • Page 65 Contrast: Display screen: Menu number: Key lock time: Display screen: Menu number: Channel set: Display screen: Menu number: Custom channel: Display screen: Menu number: Page - 65 -...
  • Page 66 System: Display screen: Menu number: Use this menu option to access the following information: • Serial Number • SW version • HW version Serial Number: Display screen: Menu number: SW Version: Display screen: Menu number: Page - 66 -...
  • Page 67 HW Version: Display screen: Menu number: Page - 67 -...

  • Page 68: Maintenance

    Jotron agent. Unauthorized disassembly will void your warranty. 13.1 Taking care of a Tron TR30 The lifetime of any equipment depends on how well you take care of it. The Tron TR30 is constructed to endure in a rough maritime environment. Regular inspection is important to detect error symptoms and prevent potentially serious problems.

  • Page 69: Regular Testing

    13.2 Regular testing It is important to perform regular testing of equipment to ensure proper operation, such that you know it is in good working order in case of a potential distress situation. Testing is completed by using the emergency test mode functionality within the radio. To activate or deactivate the emergency test mode, do the following: 1.

  • Page 70: Cleaning Of Dirt And Oil

    13.3 Cleaning of dirt and oil To clean away dirt and oil from the radio wash it with warm water (no higher than 45 degrees celsius) and mild dish soap. Finish by rinsing with fresh water. Page - 70 -...

  • Page 71: Test And Maintenance Records

    14 Test and maintenance records Below is an overview of all test and control details. Date B/N/T* Signature Insp *B=New battery, N=New Tron TR30 , T=Test. Page - 71 -...

  • Page 72: Channels And Frequencies

    15 Channels and frequencies 15.1 GMDSS Channel TX/RX Channel TX/RX Channel TX/RX Number (MHz) number (MHz) number (MHz) 156.300 156.700 156.575 156.400 156.750* 156.625 156.450 156.800 156.675 156.500* 156.850* 156.725 156.550* 156.375 156.875 156.600 156.425 157.375 156.650 156.475 157.425 * Low power mode with TX transmit power limited to 1W Page - 72 -...

  • Page 73: International

    15.2 International Channel Channel Channel Number (MHz) (MHz) Number (MHz) (MHz) number (MHz) (MHz) 156.050 160.650 156.950 161.550 156.425 156.425 156.100 160.700 157.000 161.600 156.475 156.475 156.150 160.750 157.050 161.650 156.575 156.575 156.200 160.800 157.100 161.700 156.625 156.625 156.250 160.850 157.150 161.750 156.675 156.675 156.300 156.300...

  • Page 74: Warranty

    All Jotron products are warranted against factory defects in materials and/or workmanship. The warranty period for the Tron TR30 radio is valid for 2 years from the date the product is shipped from Jotron. During this warranty period Jotron will repair or when necessary replace a product at no...

  • Page 75: Warranty Claims

    Prior to returning your product for repair under a warranty claim, you must do the following: • Submit a warranty claim in writing to Jotron. Send a claim to: repair@jotron.com. • If you are required to return a defective product for repair, you must attain a return material authorization (RMA) number.

  • Page 76: Service Agents

    Any costs related to the above mentioned services, including transportation connection with returning and man hours for repairing a product will not be assumed by Jotron and must be covered by the customer. Jotron distributors and service agents stock the most commonly required spare parts.

  • Page 77: Optional Accessories

    17 Optional accessories Below is a list of additional optional accessories available for the Tron TR30 , both the GMDSS and Maritime VHF radios. Part Number: Part Name: 83446 87950 81341 Speaker microphone 83426 Test battery (orange) 89449 Carry case...

  • Page 78: Spare Parts

    18 Spare parts Keep the original packaging. If the Tron TR30 needs to be shipped for servicing, it is required to be shipped within the same packaging as when the product was first received. Part Number: Part Name: 83446 87950...

  • Page 79: Recycling And Disposal

    19 Recycling and disposal The Tron TR30 is not to be disposed as normal waste and must be handled in accordance with the applicable federal, state and local waste disposal regulations in the country where the equipment is used. Page - 79 -...

  • Page 80: Emergency Instructions

    20 Emergency instructions This is an overview of how to operate a Tron TR30 during an emergency. Figure 5 Emergency instructions overview Page - 80 -...
  • Page 81 Tron TR30  - v.A...
