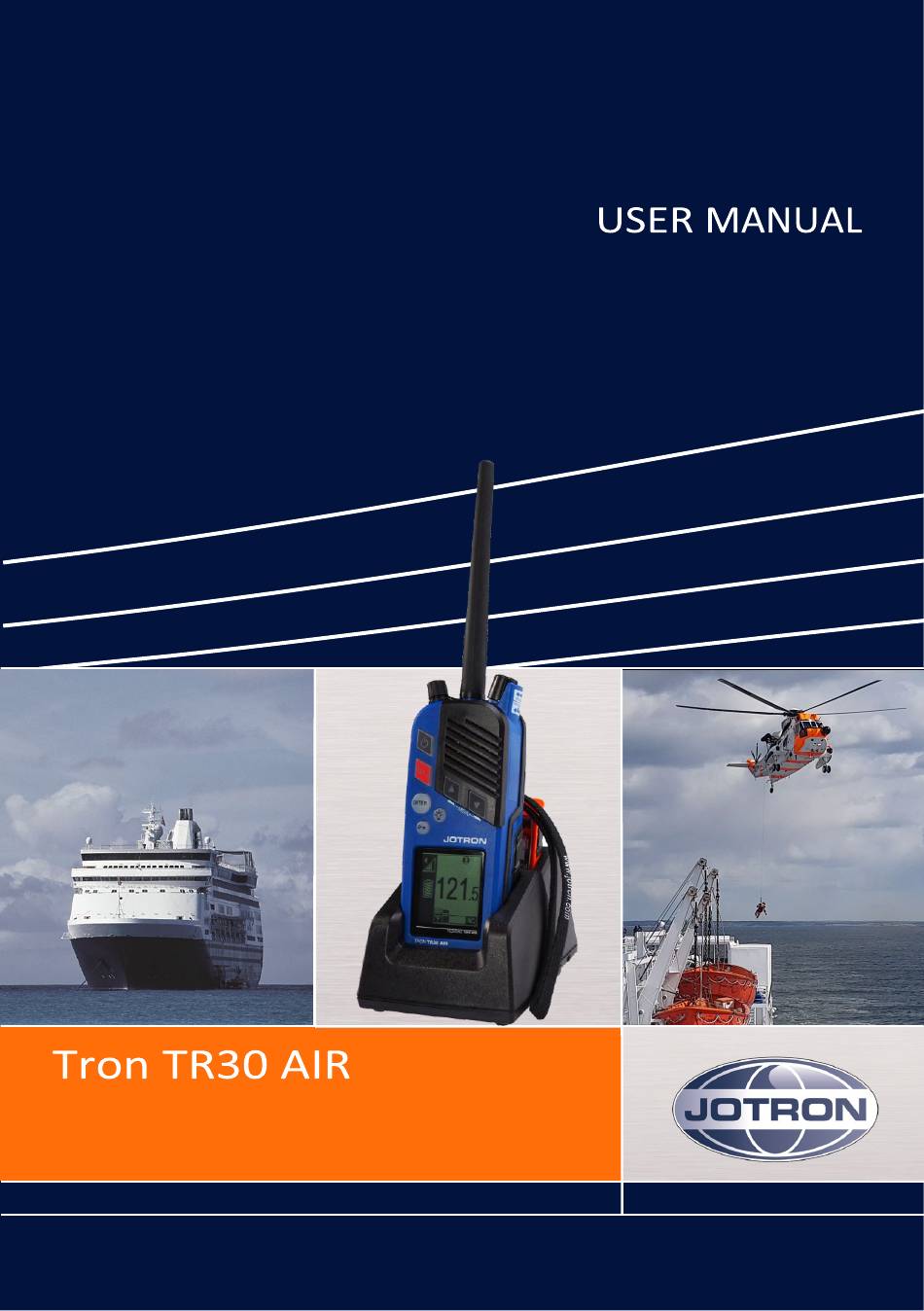

- Page 1 www.jotron.com...
- Page 2 Tron TR30 AIR...
-
Page 3: Table Of Contents
Tron TR30 AIR Table of Contents ENERAL MPORTANT INFORMATION RODUCT DESCRIPTION RODUCT IMAGES UNCTIONAL DESCRIPTION 5.1 Tron TR30 AIR components 5.2 Antenna 5.3 Emergency battery 5.4 Test battery 5.5 Battery endurance 5.6 RH-30 Holder NSTALLATION MERGENCY USE PERATION INSTRUCTIONS 8.1 Turning on the radio 8.2 Channel selection... - Page 4 Tron TR30 AIR 12 A CCESSORIES AND SPARE PARTS 12.1 Optional accessories 12.2 Spare parts 12.3 Counterfeit spare parts 13 R ECYCLING AND DISPOSAL 14 W ARRANTY 14.1 Service agents 15 S TANDARDS 16 A BBREVIATIONS 17 T ECHNICAL SPECIFICATIONS 17.1 Product specification...
-
Page 5: General
This symbol is used to highlight information that if not followed can result in personal injury or body harm. Jotron is not liable for consequential or special damages and cannot be held responsible for any damages or injury arising either directly or indirectly due to an error or omission of information, misuse of a product, breach of procedures, or for failure of any specific component or other part of the equipment. -
Page 6: Important Information
Tron TR30 AIR IMPORTANT INFORMATION Below are instructions for keeping the radio log and the radio operator's obligation according to national and international regulation: 1. The radio log shall be kept in accordance with requirements in the Radio Regulation, SOLAS Convention, national regulations regarding radio installations and the STCW Convention (STCW 95 including the STCW Code) including relevant regulation regarding watch keeping on board passenger and cargo ships. -
Page 7: Product Description
Tron TR30 AIR PRODUCT DESCRIPTION The Tron TR30 AIR is a ruggedly designed radio made for easy operation. It is a portable emergency VHF radio for two-way communication between vessel and aircraft. The radio is possible to operate using one hand, even when wearing gloves. The high contrast graphical display including integrated back lighting of the display and keys are very effective for visibility and usage in low light conditions. -
Page 8: Product Images

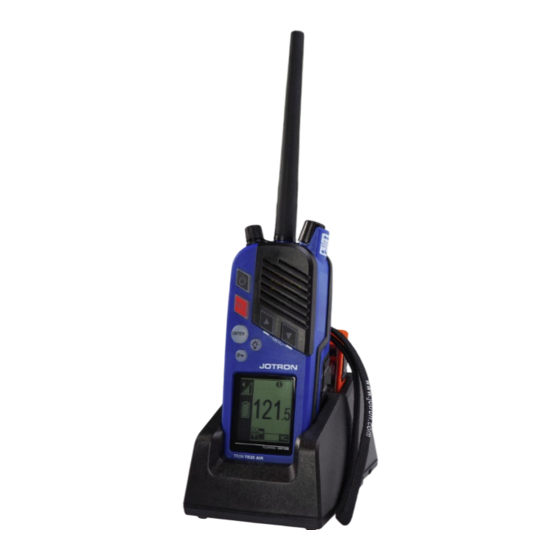

Tron TR30 AIR PRODUCT IMAGES Figure 2: Tron TR30 AIR in RH-30 Holder Figure 1: Tron TR30 AIR... -
Page 9: Functional Description
12. Battery status indicator 13. Volume control indicator 14. Key lock/unlock button 15. Enter button 16. 121.5 button (instant access) 17. PTT transmit button 18. On/off button 19. Jack cover (external accessories connector) Figure 3: Tron TR30 AIR components... -
Page 10: Antenna
Tron TR30 AIR Antenna The antenna for the Tron TR30 AIR is fitted with a standard SMA connector. The antenna shall be marked with “JOTRON TR30 AIR”. Make sure to use only original and approved Jotron antenna. Be sure to use correct antenna type. Antenna for Tron TR30 AIR, shall be marked with JOTRON TR30 AIR on the sides. -
Page 11: Test Battery
Test battery, and an Emergency battery. Jotron recommend that the Test battery is always mounted on the radio when not in use and stored in the RH-30 Holder. This will not drain the battery when the radio is turned The RH-30 Holder can both be mounted on a horizontal or a vertical surface. - Page 12 Tron TR30 AIR An overview of the RH-30 Holder components: Figure 6: RH-30 Holder components Figure 7: Tron TR30 AIR radio 1. Battery storage bay and Emergency battery in Holder 2. Radio storage bay 3. Holes for vertical mounting (36mm spacing) 4.
-
Page 13: Installation
4. Place emergency battery in the battery storage bay in the RH-30 Holder and the radio in the radio bay. The emergency battery should only be installed on the radio in a Distress situation. Figure 8: Tron TR30 Air in Holder... -
Page 14: Emergency Use
Tron TR30 AIR EMERGENCY USE To install the emergency battery on the Tron TR30 AIR, do the following: 1. Pull back and remove the emergency seal sticker on the battery. Rip the sticker off at the perforated edge. 2. Using the fixing track, mount the Emergency battery onto the back of the radio. - Page 15 Tron TR30 AIR 3. Squeeze in the black finger grips on either side of the battery to lock the battery into place 4. Turn on radio 5. Push PTT to transmit.
-
Page 16: Operation Instructions
Tron TR30 AIR OPERATION INSTRUCTIONS The TR30 AIR shall only be used with Emergency battery or Test battery. The Emergency battery is for use in a distress situation. In case of a test or training, use a Test battery. If the jack cover is removed, for example when using an accessory, the radio is no longer waterproof. -
Page 17: Volume Adjustment
Tron TR30 AIR Volume adjustment Turn the volume control clockwise to increase and anti- clockwise to reduce the volume. The volume symbol in the display indicates the volume level. Ensure that you do not press down the volume control while adjusting the volume. -
Page 18: Menus
Tron TR30 AIR Menus Press the Up- and Down arrow buttons at the same time to enter or exit the menu system. Use the up/down arrow buttons to navigate and select using Enter button. Menu Display screen: Exit number: Use this menu option to exit the menu system. - Page 19 Tron TR30 AIR Menu Key sound: number: Use this menu option to choose an audio tone. You can choose between four different tones. Using the up/down arrow keys, select from 1-4. Menu Key volume: number: Use this menu option to set the volume of the key sound.
- Page 20 Tron TR30 AIR Menu System: number: Use this menu option to access the following information: Serial Number SW version HW version Menu Serial Number: number: Use this menu option to find the serial number of the radio Menu SW Version:...
-
Page 21: Maintenance
Tron TR30 AIR MAINTENANCE If the radio is immersed in seawater, rinse it with fresh water immediately. Wash away dirt and oil from the radio with warm water (no higher than 45 degrees Celsius) and mild dish soap. Finish by rinsing with fresh water and drying. -
Page 22: Regular Testing
Tron TR30 AIR Regular testing It is important to perform regular testing to ensure proper operation. This ensures that the radio is in good working order and ready for use in a potential distress situation. Ensure you have a Test battery available for use during testing. The Emergency battery should only be used in distress situations. -
Page 23: Test And Maintenance Records
Tron TR30 AIR TEST AND MAINTENANCE RECORDS Below is an overview of all test and control details. Date B/N/T* Signature Insp *B=New battery, N=New Tron TR30 AIR, T=Test. -
Page 24: Battery Safety Instruction
Tron TR30 AIR BATTERY SAFETY INSTRUCTION Product name: TR30 Emergency battery/TR30 Test battery Type: Non-rechargeable Lithium metal Lithium metal content: Below 1g per cell Approximate weight: 100 grams Chemical system: Lithium/Iron Disulfide (Li/FeS Designed for recharge: The battery should not be opened or burned. Exposure to the ingredients contained within or their combustion products could be harmful. -
Page 25: Fire Fighting Measures
11.4 Handling and storage The Tron TR30 AIR battery should be stored in a cool and well ventilated area. Elevated temperatures can result in a reduction of battery life. In locations that handle large quantities of lithium batteries, such as a warehouse, lithium batteries should be isolated from unnecessary combustibles. -
Page 26: Accessories And Spare Parts
For an overview of the available optional accessories for the Tron TR30 AIR, please refer to our website. 12.2 Spare parts For an overview of the available spare parts for the Tron TR30 AIR, please refer to our website. 12.3 Counterfeit spare parts Jotron is aware of extended counterfeit spare parts being marketed and sold to fit GMDSS safety products. -
Page 27: Recycling And Disposal
Tron TR30 AIR RECYCLING AND DISPOSAL Tron TR30 AIR is not to be disposed as normal waste and must be handled in accordance with the applicable federal, state and local waste disposal regulations in the country where the equipment is used. -
Page 28: Warranty
Tron TR30 AIR WARRANTY The warranty period for a new Tron TR30 AIR is 24 months from the date of delivery (from Jotron). If you have a product and are unclear about your warranty period contact your sales partner. All Jotron products are warranted against factory defects in materials and/or workmanship during the warranty period, unless otherwise stated in writing. -
Page 29: Service Agents
Tron TR30 AIR 14.1 Service agents Please look at: http://www.jotron.com for Maritime Service Agents. Jotron Group Head Office: Jotron Group Head Office (from 2020): Jotron AS Jotron AS Østbyveien 1 Ringdalskogen NO-3280 Tjodalyng NO-3270 Larvik Norway Norway Tel: +47 3313 9700... -
Page 30: Standards
Jotron declares that this radio is in compliance with Radio Equipment Directive 2014/53/EU. A copy of the declaration of conformity can be downloaded from the Jotron website. The Tron TR30 AIR has been verified, tested and meets the following product standards: EN/IEC 60945: 2002 Maritime navigation and radio communication equipment including Corr.1... - Page 31 Radiocommunication Apparatus (All Frequency Bands) This device complies part 80 of the FCC Rules. The Tron TR30 AIR has been shown to be compliant for localized Specific Absorption Rate (SAR) for uncontrolled environment/general population limits specified in ANSI/IEEE Std. C95.1-1999.
-
Page 32: Abbreviations
Tron TR30 AIR ABBREVIATIONS European Agreement concerning the International Carriage of Dangerous Goods by Road Amplitude Modulation ANSI American National Standards Institute European Commission The Code of Federal Regulations Direct Current ElectroMagnetic Compatibility European Standards Electromagnetic compatibility and Radio spectrum Matters... -
Page 33: Technical Specifications
Tron TR30 AIR TECHNICAL SPECIFICATIONS 17.1 Product specification Parameters TR30 AIR Specification Operating temperature range: -20°C to +55°C (-4°F to +131°F) Size (WxHxD): 61 mm x 157 mm x 40 mm (Depth with belt clip: 47 mm) Full buoyancy: Weight: Approximately 300 g (incl. -
Page 34: Amendment Records
Tron TR30 AIR AMENDMENT RECORDS Vers Date Reason 09.Mai.2019 First revision of manual. ØB... -
Page 35: Emergency Instructions
Tron TR30 AIR EMERGENCY INSTRUCTIONS... - Page 36 Tron TR30 AIR...
