Functional description
Tron TR30 AIR components
An overview of the radio components.

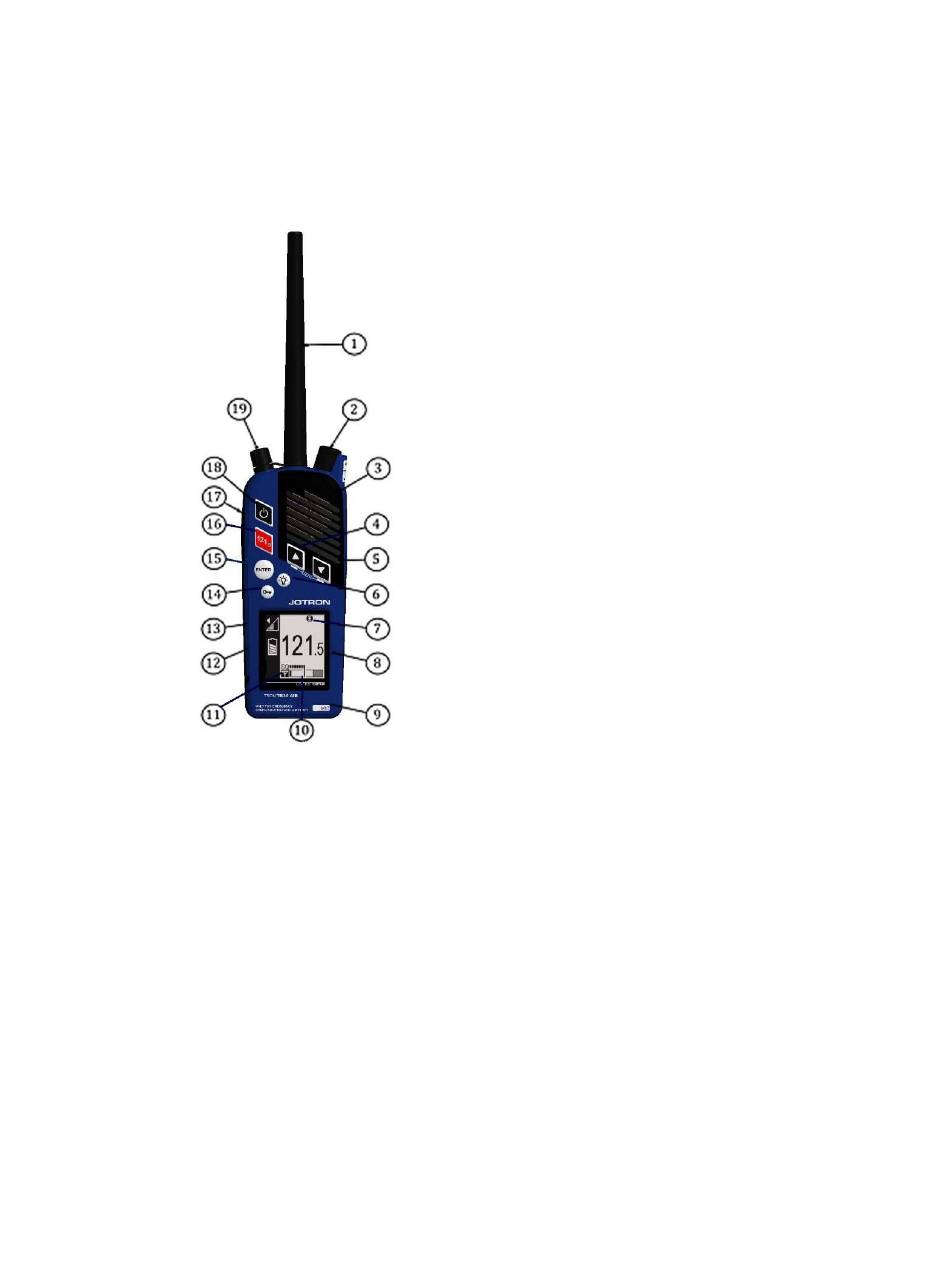

Figure 3 Tron TR30 AIR components

Advertisement

loading
Need help?

Need help?

Do you have a question about the Tron TR30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jotron Tron TR30

Summary of Contents for jotron Tron TR30

  • Page 1 Functional description Tron TR30 AIR components An overview of the radio components. Figure 3 Tron TR30 AIR components...
  • Page 2 Antenna TR30 AIR Volume, squelch and monitor control Loudspeaker Up button Down button Backlight button Emergency mode indicator Frequency indicator Microphone Squelch and signal strength indicator Transmitter power indicator Battery status indicator Volume control indicator Key unlock button Enter button 121.5 button (instant access) PTT Transmit button On/off button...

  • Page 3: Emergency Mode

    Operation instructions Emergency mode The TR30 AIR shall only be used with emergency battery, or test battery. The emergency battery is for use in a distress situation. In case of a test or training, use a test battery. If the jack cover is removed, for example when using an accessory, the radio is no longer waterproof.

  • Page 4: Volume Adjustment

    Volume adjustment Function: Display screen: Volume adjustment 1.Turn the volume control to adjust the volume. The volume symbol in the display indicates the volume level. Ensure that you do not press down the volume control while adjusting the volume. Squelch adjustment Function: Display screen: Squelch adjustment...
  • Page 5 A key symbol appears when the radio is locked. PTT, Instant access 121.5MHz, volume and squelch are still available when the radio is locked. Menus Press the up/down arrow buttons at the same time to enter or exit the menu system. Use the up/down arrow buttons to navigate and select using Scan/Enter.
  • Page 6 Key sound: Display screen: Menu number: Use this menu option to choose an audio tone. You can choose between four different tones. Using the up/down arrow keys, select from 1-4. Key volume: Display screen: Menu number: Use this menu option to set the volume of the key sound.
  • Page 7 Backlight level: Display screen: Menu number: Use this menu option to set the displaybacklight level. (Off=0, low=1 or high=2 Contrast: Display screen: Menu number: Use this menu option to set the display contrast level (Low=1, medium= 2 or high=3) Key lock time Display screen: Menu number:...
  • Page 8 Use this menu option to find the serialnumber of the radio SW Version: Display screen: Menu number: Use this menu option to find the softwareversion of this radio. HW Version: Display screen: Menu number: Use this menu option to find the hardwareversion of this radio.
