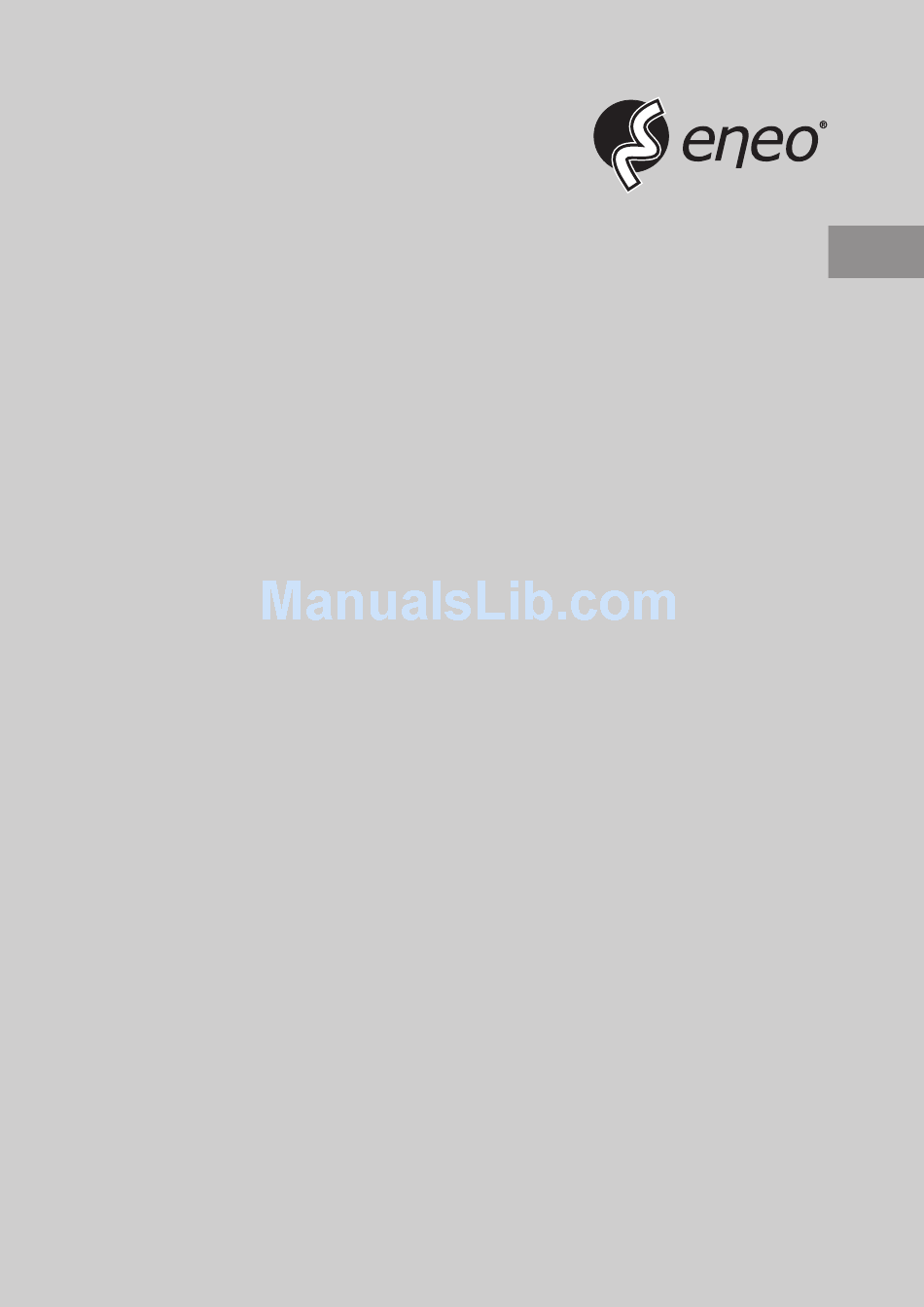

Page 1: User Manual

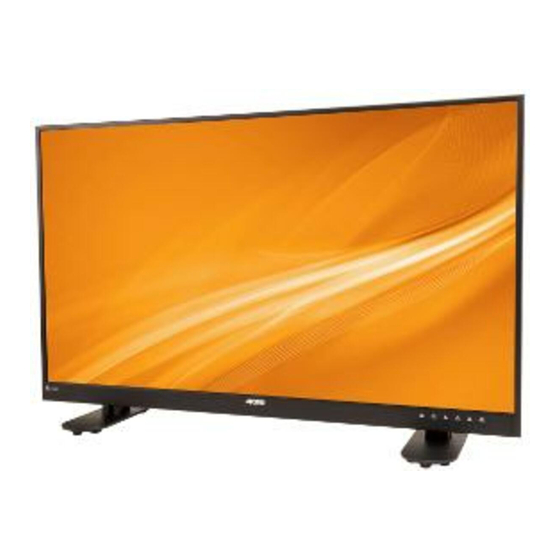

User Manual 40” (102cm) LED/TFT Monitor, 3840x2160, UHD, 60fps, HDMI, DVI-D, SDI, VGA, Metallgehäuse VM-4K40M... -
Page 2: Safety Instruction
SAFETY INSTRUCTION Follow this safety instruction to use the monitor properly and prevent the damage. This safety instruction has “Warning” & “Caution” as below Warning - If the user does not follow this instruction, it may cause the serious damage to the user. Caution - If the user does not follow this instruction, it may cause the slight damage to the user or cause some damages to the monitor. - Page 3 Do not install this monitor on the outside For cleaning do not use liquid cleaners. and near water. It may cause damage to Never touch the power plug with wet-hands. the product, electric shock and fire. When lightning and thundering, unplug the Unplug this product from the wall outlet, when monitor from the wall outlet and never touch it does not operate for a long time.
-
Page 4: Caution
1.2 CAUTION Install this monitor some distance from the Place this product on a stable place. wall and do not install unless proper ventilation If not, it may fall, causing serious damages is provided. to the monitor and people. The openings must not be blocked by When carrying this monitor, be careful curtain, rug or other similar surface. -
Page 5: Installation 8
Install this monitor about 50cm far from Do not press the LCD panel with hands or the eyes and an angle of 0~15 degrees the sharpened material hardly. below eyes. Too close installation may cause having weak sight. For cleaning, unplug the monitor from the Do not use the chemical liquid for cleaning. -
Page 6: Fcc Rf Interference Statement
FCC RF INTERFERENCE STATEMENT NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 7: Table Of Contents
TABLE OF CONTENTS 1. SAFETY INSTRUCTION 1.1 WARNING 1.2 CAUTION 2. TABLE OF CONTENTS 3. INSTALLATION 3.1 UNPACKING 3.2 PART LIST 3.3 MAIN BUTTON & CONNECTION 3.4 REMOTE CONTROLLER 4. OSD MENU SETTING 4.1 INPUTS 4.2 SCREEN 4.3 FORMAT 4.4 COLOR 4.5 QUALITY 4.6 ANALOG 4.7 AUDIO... -
Page 8: Installation
INSTALLATION INSTALLATION 3.1 UNPACKING Remove the package cover and place the product on a flat and secure surface or in the installation location. This equipment should be unpacked and handled with care. If an item appears to have been damaged in shipment, notify the shipper immediately. -
Page 9: Main Button & Connection
3.3 MAIN BUTTON & CONNECTION FRONT VIEW IR RECEIVER Aim the remote control towards this spot POWER LED Power indicator light POWER Power on or off SELECT Move right / Adjust volume / Select item VOLUME Move left / Adjust volume AUTO Move up / Auto adjustment of VGA source SOURCE Move down / Select input source EXIT, MENU Activate or exit of OSD menu... - Page 10 BOTTOM VIEW (28") SDI IN/OUT SDI signal input / loop output DC 12V IN DC 12V input (AC/DC ADAPTER) VGA IN VGA (PC RGB) signal input DVI IN DVI signal input HDMI IN HDMI signal input DP IN DP signal input AUDIO IN/OUT Stereo audio signal input / output UPDATE...
- Page 11 BOTTOM VIEW (40"/55") SDI IN/OUT SDI signal input / loop output AC POWER IN AC 100~240V input VGA IN VGA (PC RGB) signal input DVI IN DVI signal input HDMI IN HDMI signal input DP IN DP signal input AUDIO IN/OUT Stereo audio signal input / output UPDATE Software upgrade...
-
Page 12: Remote Controller
3.4 REMOTE CONTROLLER Grey buttons are not used on these monitors POWER MUTE POWER Power on or off MUTE Turn on or off the speaker VIDEO1/CVBS1 VIDEO2/CVBS2 S-VIDEO VIDEO 1 Not functional VIDEO 2 Not functional AUTO COLOR TEMP S-VIDEO Not functional RGB Select VGA signal HDMI DVI Select DVI signal... -
Page 13: Osd Menu Setting
OSD MENU SETTING Before setting the functions, please make sure the device is connected correctly. 4.1 INPUTS Version : ***** • Inputs Screen DisplayPort Format DVI-D Color HDMI Quality Analog Audio Dual-Window System Main Win. : ***** Resolution : ***** Sub Win. -
Page 14: Screen
4.2 SCREEN Version : ***** Inputs Aspect Ratio Full Screen Screen Rotation Landscape Format Brightness Color Contrast Quality Backlight Analog Audio Dual-Window System Main Win. : ***** Resolution : ***** Sub Win. : ***** Resolution : ***** ITEM FUNCTION DEFAULT VALUE AVAILABLE MODE Aspect Ratio Setting screen aspect ratio... -
Page 15: Format
4.3 FORMAT Version : ***** Inputs Input Color Format Auto Screen Color Domain YUV Domain Format Color Quality Analog Audio Dual-Window System Main Win. : ***** Resolution : ***** Sub Win. : ***** Resolution : ***** ITEM FUNCTION DEFAULT VALUE AVAILABLE MODE Input Color Format Select the suitable color format for input signals... -
Page 16: Color
4.4 COLOR Version : ***** Inputs Bypass Screen Gamma Gamma 2.2 Format Color Temperature 6500 Color Mono Tone Color Quality Gain Analog Independent Color Independent Sat. Audio Dual-Window System Main Win. : ***** Resolution : ***** Sub Win. : ***** Resolution : ***** ITEM FUNCTION... -
Page 17: Quality
4.5 QUALITY Version : ***** Inputs Bypass Screen Sharpness Format Noise Reduction Color Super Clear Quality Analog Audio Dual-Window System Main Win. : ***** Resolution : ***** Sub Win. : ***** Resolution : ***** ITEM FUNCTION DEFAULT VALUE AVAILABLE MODE Bypass Select the application of picture quality process Format >... -
Page 18: Analog
4.6 ANALOG (only for VGA mode) Version : ***** Inputs Horizontal Position Screen Vertical Position Format Pixel Clock Color Phase Quality Auto Adjust Analog Audio Dual-Window System Main Win. : ***** Resolution : ***** Sub Win. : ***** Resolution : ***** ITEM FUNCTION DEFAULT VALUE... -
Page 19: Audio
4.7 AUDIO Version : ***** Inputs Mute Screen Volume Format Color Quality Analog Audio Dual-Window System Main Win. : ***** Resolution : ***** Sub Win. : ***** Resolution : ***** ITEM FUNCTION DEFAULT VALUE AVAILABLE MODE Mute Set the sound mute (On / Off) All modes Volume Adjust volume level (0 ~ 100) -
Page 20: Dual-Window
4.8 DUAL-WINDOW Version : ***** Inputs Dual-Window Modes Screen Window Select Format PIP Size Color PIP Location Quality PIP Swap Analog Audio Dual-Window System Main window input source & resolution Main Win. : ***** Main Win. : ***** Resolution : ***** Resolution : ***** Sub Win. -
Page 21: System
4.9 SYSTEM Version : ***** Inputs Language English Screen Menu Transparency Format Menu Rotation Landscape Color Download Quality Power Save Mode Analog Key Lock Audio System Default Dual-Window System Main Win. : ***** Resolution : ***** Sub Win. : ***** Resolution : ***** ITEM FUNCTION... -
Page 22: Specification
SPECIFICATION 28” 40” 55” Display Screen Size 28 inch 40 inch 55 inch Resolution 3840x2160 pixels 3840x2160 pixels 3840x2160 pixels Pixel Pitch 0.160x0.160 mm 0.225x0.225 mm 0.315x0.315 mm Brightness 300 cd/m 350 cd/m 450 cd/m Contrast Ratio 1000:1 5000:1 4000:1 Aspect Ratio 16:9 16:9... - Page 23 TROUBLESHOOTING When the following troubles are occurred, follow the trouble shooting before contacting a service center. Trouble The screen doesn’t show up - Make sure if the power supply is connected property. - Turn on the power. - Select the input signal right for the connected port. The screen is too light or to dark Control the Brightness or Contrast value.
- Page 24 Videor E. Hartig GmbH Exclusive distribution through specialised trade channels only. Videor E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com...
