CONTROLS

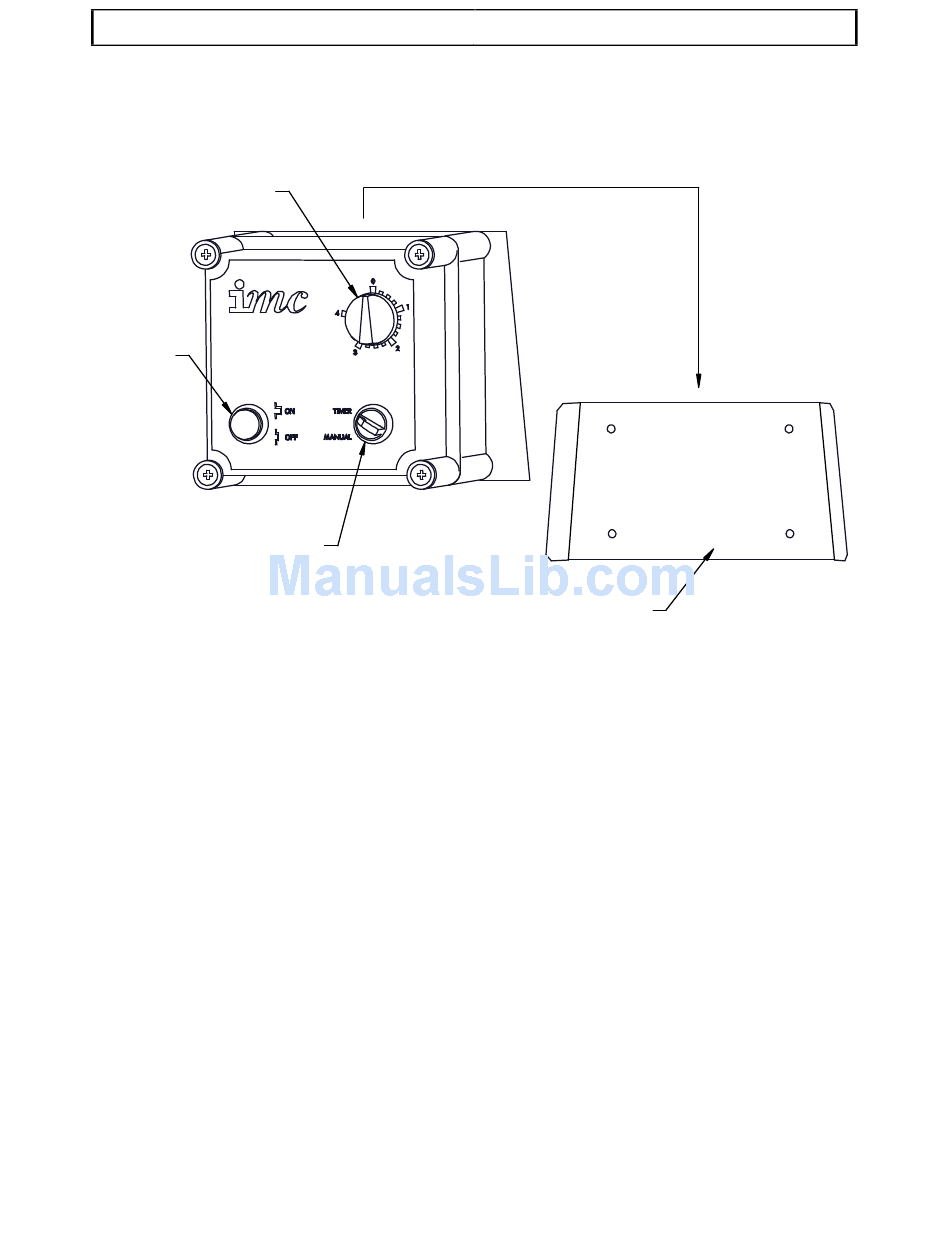

The peeler has a separate box for mounting on a wall bracket near the machine.
TIMER
ON/OFF
BUTTON
TIMER / MANUAL
SELECTOR SWITCH
WALL BRACKET
Note: Control boxes for three phase machines have separate on and off buttons.

INSTALLATION

For the Installer:
These Instructions contain important information designed to help the user obtain
the maximum benefit from the investment in an IMC SP Peeler.
Please read them carefully before starting work, and consult with the supplier in the
event of any queries.
Be sure to leave this Instruction Manual with the user after the installation of the
machine is complete.
Procedure:
The SP Range is supplied with a pedestal and is designed to be bolted to the floor.
The control box is designed to be mounted on a wall bracket so that it is easily
accessible once the machine is installed.
Place the machine in its desired location and mark though the pedestal base the
location of the five floor fixing holes. Remove the machine and prepare the floor
for rawlbolts or other suitable floor fixings. Replace the unit into working position
and fit the rawlbolts or other fixings. Tighten up the fixings.
Place the control box bracket in the desired location and mark though the four
screw holes. Remove the bracket and prepare the wall for rawlplugs or other
