STEP 2
Fix Top Cap (2) on top of the Shelf Panel (A),
as shown.
A
2
Recommended Maximum Weight
15
15
15
15
15
*Unit in Pound(lbs)
STEP 3
In order to prevent product tip over, please follow the
instruction below to secure the unit to the wall.
HARDWARE PARTS LIST
WALL PLUG
EYELET SCREW
CABLE TIE
WALL PLUG
EYELET SCREW
1/4''
DRILL BIT
WALL
WALL
1
CABLE
TIE
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
QTY
1 SET
Approx. 15 minutes
Recomm. 1 Person
No Tools Required
www.furinno.com
Assembly Instruction

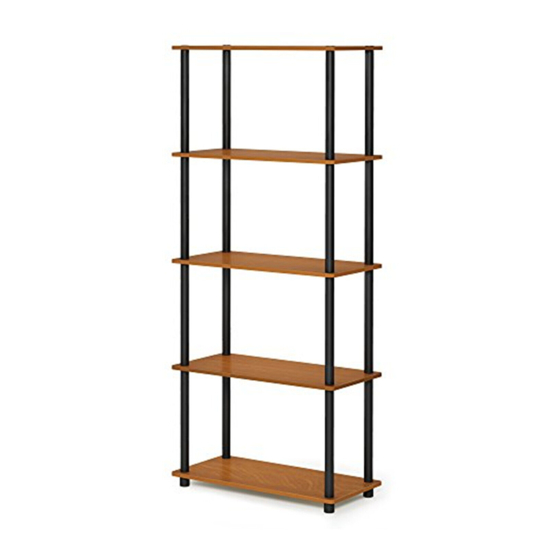

Furinno Turn-N-Tube 5-Tier Multipurpose
Shelf Display Rack
17091
MODEL
:
Customer Support
NEED HELP? For replacement requests or product inquiries,
please contact our Customer Service Team by emailing us at
support@furinno.com. Thank you for selecting Furinno!
1709120180326
