AccuSport VectorX User Manual

Personal launch monitor
Hide thumbs

Advertisement

Quick Links

Download this manual

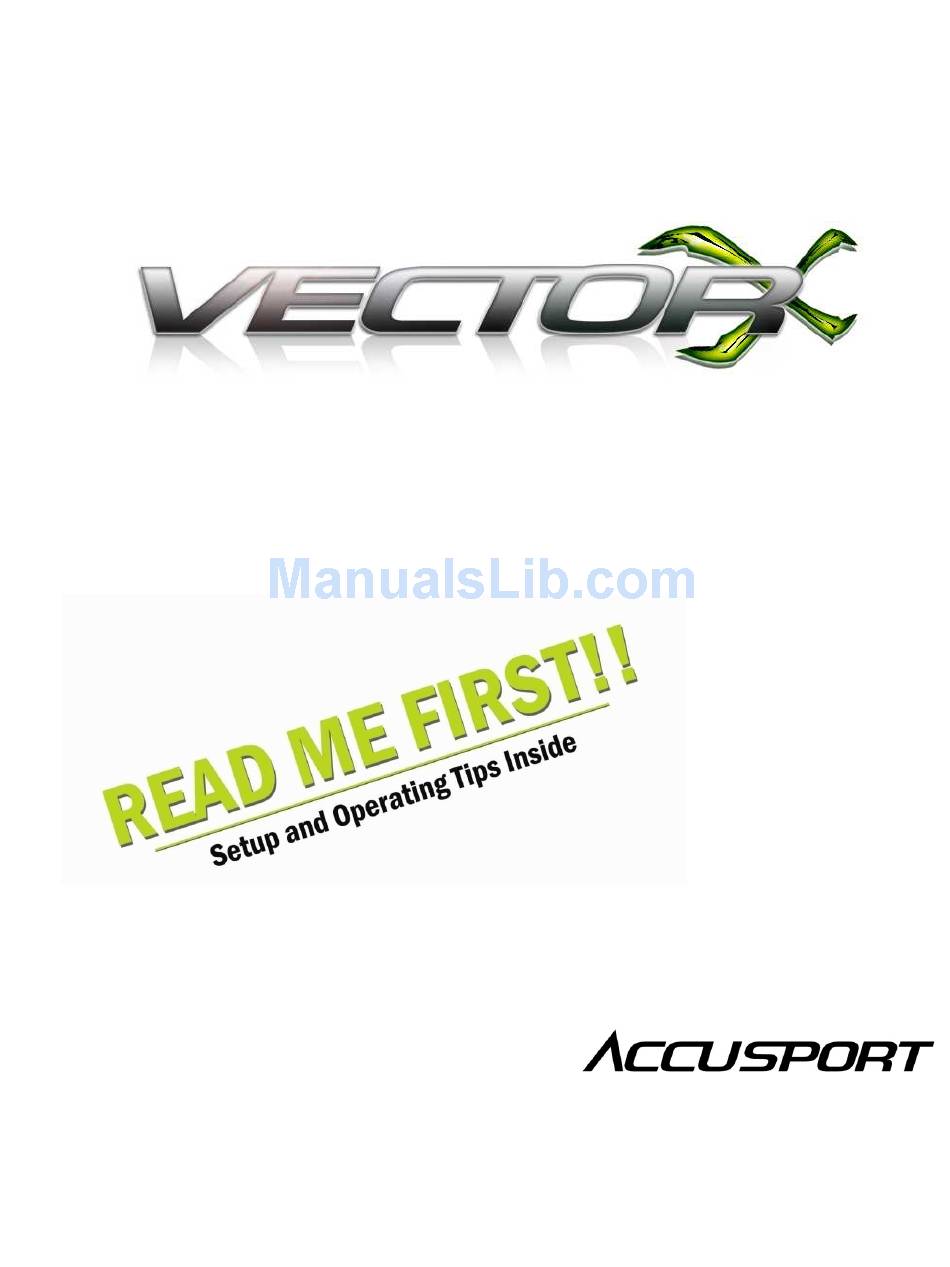

User Guide
KNOW THE GAME.
October 2011
Page 1
© Copyright AccuSport International, Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VectorX and is the answer not in the manual?

Questions and answers

Summary of Contents for AccuSport VectorX

  • Page 1 User Guide KNOW THE GAME. October 2011 Page 1 © Copyright AccuSport International, Inc.

  • Page 2: Getting Started

    To ensure trouble-free, reliable operation, read this user guide before setting up and using your VectorX. Failure to follow the information provided in this user guide can void your warranty. Please visit the AccuSport web site at www.accusport.com...
  • Page 3 • When necessary clean the VectorX lens using any photographic or eyeglass cleaning kit. Paper towels or tissue are not recommended. • The outside of the VectorX case can be cleaned using a damp cloth. Turn off and disconnect the VectorX before cleaning. Do not allow liquid to enter the case.
  • Page 4 If you are using a fully charged battery, no AC power source is needed. If the battery is not charged, or if you will be using the VectorX for an extended time period, you may use the optional external battery or use the AC adapter to plug into an electrical outlet.
  • Page 5 Starting the VectorX To turn ON the VectorX, select the on/off switch located on the back of the system. A white screen with the AccuSport logo will appear while the system is initialized. Initialization will take approximately two minutes. AccuSport VectorX Illustration...
  • Page 6 Marking the Ball The VectorX Launch Monitor uses black marks on the golf ball to measure the ball flight parameters. The marks must face the VectorX unit when the ball is positioned for hitting. No other ball marks should be visible to the camera. If...
  • Page 7 Positioning the VectorX Diagram shows positioning for right handed golfers. Note: A computer is required to link VectorX to the optional add-on VSeries software. VSeries software is sold separately. October 2011 Page 7 © Copyright AccuSport International, Inc.
  • Page 8 ‘User#’, or ‘Notes’ before beginning the session. This is helpful if saving to a USB key or to identify club changes, members or customers. ‘Run VSeries’ – Connects the VectorX to the optional VSeries software modules if purchased. October 2011 Page 8 ©...
  • Page 9 All settings made on this screen will remain the same until changed even if the VectorX is switched OFF. ‘Switch to Meters’ – This option changes to Meters or Yards. ‘Set Altitude’ – This options allows you to change altitude settings based on your current location.
  • Page 10 Set Temperature ‘>90F’ ’75F – 90F’ ’60F – 75F’ – The VectorX defaults to this setting. ‘<60F’ ‘Back’ – This option takes you ‘Back to the ‘Set Conditions’ screen. Fitting To enter a ‘Name’, ‘User#’, or ‘Notes’, select the arrow next to that option.
  • Page 11 “L” for Left. Total Distance includes carry and roll. VectorX measures ball speed, launch angle, back spin, side spin and side angle. Club speed and descent angle are calculated. White numbers show data from the current shot. Gold numbers show the average of all shots for the item you are currently hitting.
  • Page 12 Image The ‘Image’ view displays the image of the ball from the camera. The VectorX Launch Monitor uses a black line on the golf ball to measure the ball flight parameters; the line is indicated in red and blue by the software to validate how the shot was measured.
  • Page 13 ‘Profile’ screen. Impact The ‘Impact’ view displays the attack angle, face angle, and club path for the selected shot. ‘Image’, ‘Profile’, and ‘Data’ views can be accessed from the ‘Impact’ screen. October 2011 Page 13 © Copyright AccuSport International, Inc.
  • Page 14 ‘New Session – Proceeds to a new session to enter student and club information. ‘Save to USB’ – Insert flash drive into the USB port on the side of the VectorX and select Save to USB to save an excel file of the sessions since the system has been turned on.
  • Page 15 Run VSeries The ‘Run VSeries’ option connects the software to the VSeries interface modules if purchased as an add-on to the VectorX. The status will display “Connected’ if available or ‘Not Connected’ if unavailable. About VectorX The ‘About’ option can be selected from the ‘Welcome’ screen or can be accessed from most screens by selecting the circle on the keypad as shown below.
  • Page 16 FireWire IEEE 1394 port is also required on your computer. How does VectorX work? VectorX is triggered by the sound of the club hitting the golf ball. The camera takes two pictures of the golf ball within milliseconds of each other and advanced image analysis software determines the size, rotation, vertical path and distance between the two images.
  • Page 17 Will VectorX work for a left handed player? Yes. For a left-handed golfer, position the VectorX facing the hitter and tee the ball up in the Left Tee Zone. Does AccuSport provide product training? The VectorX Launch Monitor is the first all-inclusive launch monitor with on-board processor.
  • Page 18 I am getting launch data for drivers, but the system is not capturing irons. 1. Make sure that VectorX is on the same level as the mat and that the ball is not being hit below the camera. 2. If the ball image is cut off at the side of the screen, use the setup template to verify that you are teeing up the ball correctly.
  • Page 19 Make sure the line is clear and facing the unit when placed on the tee. Beyond Hitting Range – The ball is teed up too far away from VectorX. Tee the ball up within the recommended 10-14 inches (shown on Setup Template) Ball Clipped Top/Bottom/Right/Left Edge –...
