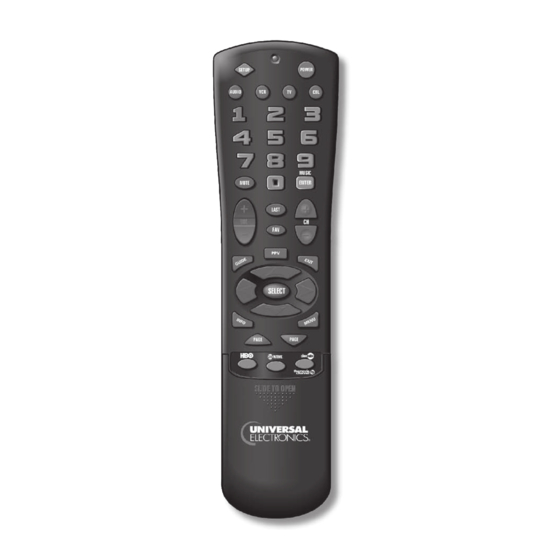

Universal Electronics MillenNium 4 User Manual

Hide thumbs Also See for MillenNium 4:
Table of Contents

Advertisement

Quick Links

MillenniuM
4
™
universal Remote Control
user's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MillenNium 4 and is the answer not in the manual?

Questions and answers

Related Manuals for Universal Electronics MillenNium 4

Summary of Contents for Universal Electronics MillenNium 4

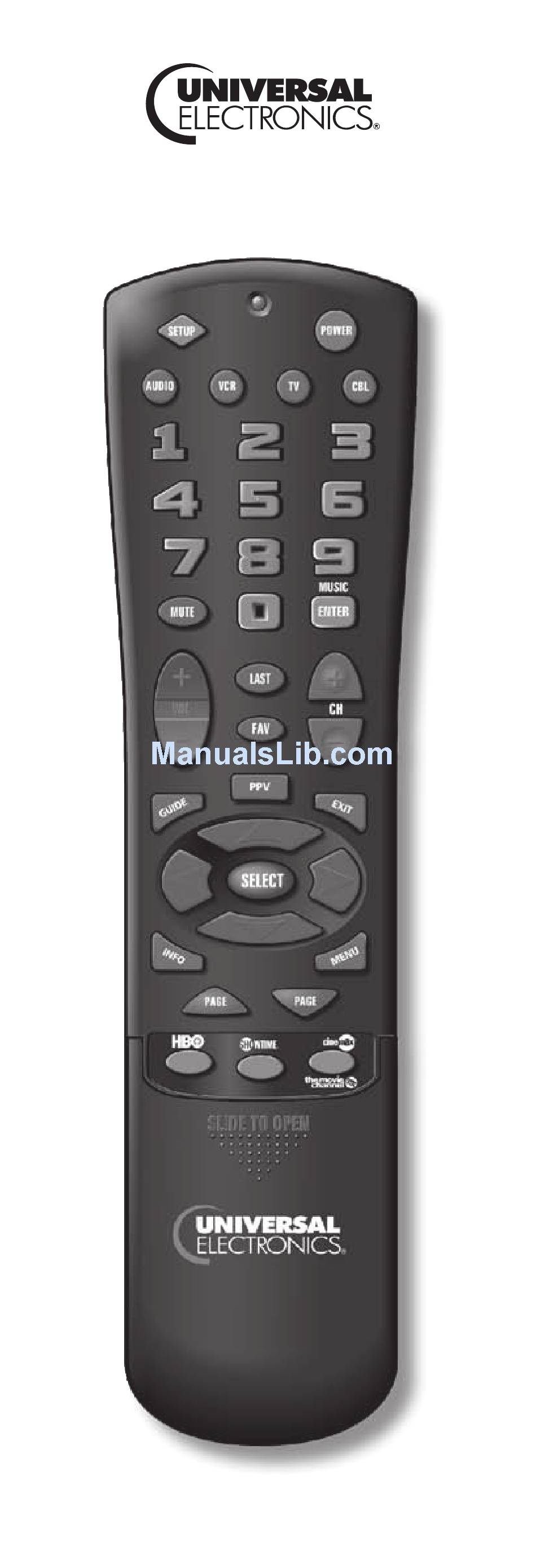

  • Page 1 MillenniuM ™ universal Remote Control user’s Guide...

  • Page 2: Table Of Contents

    Table Of COnTenTs introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 features and functions .

  • Page 3: Introduction

    The Universal Electronics Millennium™ 4 is our latest generation universal remote control. It is designed with sophisticated technology that will allow you to finally consolidate the clutter of all of the original remote controls in your home enter- tainment system. It’s packed with easy-to-use fea- tures such as: •...

  • Page 4: Features And Functions

    feaTuRes anD funCTiOns Use the illustration below to locate Millennium 4 features and then study the Key Charts (on the next two pages) to learn how they function.

  • Page 5: Key Charts

    Key Charts The LED (red light) blinks to confirm programming and operation. Press auDiO, VCR, TV, or Cbl once to select a home entertainment component to control . Press POWeR once to turn on or off the selected home entertain ment component.
  • Page 6 Key Charts (continued) Use eXiT to exit out of your cable converter’s menu and guide. use cursor keys to move the cur sor in the program guide and menu screens . Use seleCT/OK to choose options, PPV events, and to tune programs from the program guide.

  • Page 7: Installing Batteries

    insTallinG baTTeRies On the back of the Millennium 4, push the tab and lift off the battery cover. Obtain two (2) fully-charged AA alkaline batteries. Match the + and – marks on the batteries to the + and – marks in the battery case, then insert the new batteries.

  • Page 8: Programming Tv Control

    PROGRaMMinG TV COnTROl Locate the brand name of your TV in the Setup Codes For TVs section below, and write it in the following space. TV Brand: _________________________________ The brands are listed in alphabetical order with the most popular codes listed first. You will use one of these codes to program the Millennium 4 to oper- ate your TV: Turn on the TV.
  • Page 9 setup Codes for TVs (continued): Aiwa 0701 Akai 0812, 0702, 0030, 0098, 0672, 1903, 1935 Alaron 0179, 0183, 0216 Albatron 0700, 0843 Ambassador 0177 America Action 0180 Ampro 0751 Anam 0180, 0004, 0009, 0068 Anam National 0055, 0161 0030, 0003, 0019, 0052, 0137, 0185 Apex Digital 0748, 0879, 0765, 0767, 1943, 0156 Archer...
  • Page 10 setup Codes for TVs (continued): Diamond Vision 1996, 1997 DMTech 1338 Dream Vision 1297 Dumont 0017, 0019 Durabrand 0463, 0180, 0178, 0171, 1034, 0003 Dwin 0093, 0720, 0747, 0774 Dynatech 0049 Electroband 0000, 0185 Electrograph 1755 Electrohome 0381, 0389, 0409 Emerson 0154, 0236, 0463, 0180, 0178, 0171, 1963, 1944, 0623, 0282, 0280, 0270, 0185, 0183, 0182, 0181,...
  • Page 11 setup Codes for TVs (continued): Janeil 0046 0054 0000 Jensen 0761, 0050, 0815, 0817, 1299, 1933 0053, 0036, 0069, 0160, 0169, 0182, 0731, 1253 1352 Kamp 0216 Kawasho 0158, 0216, 0308 Kaypani 0052 0180 Kenwood 0030, 0019 0765, 0767, 1962 Kloss 0024, 0046, 0078 0106...

  • Page 12: Programming Vcr/Dvd Control

    setup Codes for TVs (continued): Norcent 0748, 0824, 1365 Norwood Micro 1286, 1296, 1303 Noshi 0018 0092 Olevia 1144, 1240, 1331 Onwa 0180 Optimus 0154, 0250, 0166, 0650 Optoma 0887, 1348 Optonica 0093, 0165 Orion 0236, 0463, 1463, 0179 Panasonic 0250, 0051, 0055, 0162, 0226, 0338, 0375, 0650, 1410, 1941, 1946, 1947 Penney...
  • Page 13 setup Codes for TVs (continued): Scimitsu 0019 Scotch 0178 Scott 0236, 0180, 0178, 0019,0179, 0309 Sears 0047, 0054, 0154, 0156, 0178, 0171, 0015, 0056, 0146, 0148, 0149, 0159, 0168, 0179, 0281, 0747 Seleco 1297, 1351 Sharp 0093, 0039, 0153, 0157, 0165, 0220, 0281, 0386, 0398, 0491, 0688, 0689, 0818, 0851 Sheng Chia 0093...
  • Page 14 setup Codes for TVs (continued): Tosonic 0185 Totevision 0039 Trical 0157 0463 Ultra 0391 Universal 0027 Universum 1337 US Logic 1286, 1303 Vector Research 0030 Victor 0053 Video Concepts 0098 Vidikron 0054, 0242 Vidtech 0178, 0019, 0036 Viewsonic 0857, 0864, 0885, 1330, 1342, 1755 Viking 0046, 0312 Visart...
  • Page 15 setup Codes for TVs (lCD) Akai 1935 Audiovox 0180, 0802, 0875, 1284, 1937, 1951, 1952 BenQ 1315 Cadia 1283 Dell 1080, 1178, 1264 Envision 0813, 1365 Funai 0171 Go Video 0886 1088 Hyundai 0849 1286, 1990 Initial 1990 Jensen 1299 0856, 1178, 1993 Magnavox 0802...
  • Page 16 setup Codes for TVs (Plasma) Akai 0812 Albatron 0843 BenQ 1032 Daewoo 0661 Dell 1264 Electrograph 1755 0812 Fujitsu 0186, 0683, 0809, 0853 Gateway 1755, 1756 Helios 0865 1089, 1502 0731 0178, 0856 Marantz 0704 Maxent 1755 Mitsubishi 0836 Monivision 0843 1704 NetTV...
  • Page 17 setup Codes TV/DVD Combo cont . . . 1990 Initial 1990 Jensen 1933 1962 1993 Magnavox 1963 Mintek 1990 Panasonic 1941 Polaroid 1991 Prima 1933 1948, 1958 Samsung 1903 Sansui 1935 Sova 1952 Sylvania 1963 Toshiba 1935 Controlled by VCR Advent 1016 Akai...

  • Page 18: Setup Codes For Vcrs And Dvd's

    PROGRaMMinG VCR/DVD COnTROl Locate the brand name of your VCR/DVD in the Setup Codes For VCRs and DVD section below, and write it in the following space. VCR Brand: _________________________________ The brands are listed in alphabetical order with the most popular codes listed first. You will use one of these codes to program the Millennium 4 to oper- ate your VCR: Turn on your VCR or DVD.
  • Page 19 setup Codes for VCRs (continued): Aiwa 0037, 0000, 0124, 0307, 0468 Akai 0041, 0049, 0053, 0061, 0106, 0175 Alienware 1972 America Action 0278 American High 0035 Asha 0240 Audiovox 0037, 0278 Beaumark 0240 Bell & Howell 0104 Broksonic 0184, 0121, 0209, 0002, 0211, 0295, 0361, 0479, 1479, 1815 Calix 0037...
  • Page 20 HI-Q 0047 Hitachi 0000, 0042, 0041, 0065, 0082, 0089, 0105, 0166 0042, 0739 Humax 0739 Hush 1972 iBUYPOWER 1972 Jensen 0041 0067, 0041, 0008, 0206, 0207, 0384, 1707 0037, 0278 Keen 0693 Kenwood 0067, 0041, 0038, 0384 0072 Kodak 0035, 0037 1037 Linksys 1972...
  • Page 21 setup Codes for VCRs (continued): Optimus 1062, 0162, 0037, 0048, 0104, 0058, 0432, 0454, 0593, 1048, 1162, 1262 Optonica 0062 Orion 0184, 0209, 0002, 0295, 0479, 1479 Panasonic 1062, 0035, 0162, 0077, 0102, 0225, 0226, 0227, 0378, 0454, 0616, 1035, 1162, 1262 Penney 0035, 0037, 0240, 0042, 0038, 0040, 0054, 1035, 1237...
  • Page 22 setup Codes for VCRs (continued): Stack 9 1972 0042 Sylvania 0035, 0081, 0000, 0043, 0110, 0593, 1593, 1781 Symphonic 0000, 0593, 1593 Systemax 1972 Tagar Systems 1972 Tatung 0041 Teac 0000, 0041 Technics 0035, 0162 Teknika 0035, 0037, 0000, 0052 Thomas 0000 Tivo...
  • Page 23 setup Codes for DVDs (continued): Axion 1071, 1072 B & K 0655, 0662 1224 Bel Canto Des. 1571 Blaupunkt 0717 Blue Parade 0571 Broksonic 0695, 0868, 1419 Buffalo 1882 Cary Audio Desi 1477 CAVS 1057 Centrios 1577 Cinea 0831 Cinego 1399 CineVision 0876, 0833, 0869...
  • Page 24 setup Codes for DVDs (continued): Jaton 1078 0702 Jensen 1016 1423 0558, 0623, 0867, 1164, 1275, 1602, 1863 jWin 1049, 1051 Kawasaki 0790 Kenwood 0490, 0534, 0682, 0737 0717, 0790, 1020, 1149, 1261 Konka 0711, 0719, 0720, 0721 Koss 0651, 0896, 1423 Kreisen 1421 Landel...
  • Page 25 setup Codes for DVDs (continued): ProVision 0778 Qwestar 0651 0522, 0571, 0717, 0790, 0822, 1022, 1132, 1193 0869 RJTech 1360 Rotel 0623, 1178 Rowa 0823 Sampo 0698, 0752, 1501 Samsung 0490, 0573, 0820, 0899, 1044, 1075 Sansui 0695 Sanyo 0670, 0695, 0873, 1919 Sensory Science 1158 Sharp 0630, 0675, 0752, 1256...

  • Page 26: Setup Codes For Dvd Recorders

    setup Codes for DVD Recorders: Accurian 1416 Apex Digital 1056 Aspire Digital 1168 Coby 1086 CyberHome 1129, 1502 Funai 0675, 1334 Gateway 1073, 1158 Go Video 0741, 1158, 1304, 1730 1348 1164, 1275 Kreisen 1421 0741 LiteOn 1158, 1416, 1440 Magnavox 0646, 0675, 1506 Panasonic...

  • Page 27: Programming Combo

    PROGRaMMinG a COMbO uniT If you own a combo unit such as a TV/VCR Combo or a TV/DVD Combo, you need to fol- low special steps to set it up. Perform the following instructions to control combo device:: For a TV/VCR Combo, turn on your TV/ VCR Combo and insert a video cassette.

  • Page 28: Setup Codes For Combo Devices

    Write your TV/VCR Combo code in the boxes below for future reference. NOTE: Remember, to use the Millennium 4 to operate your Combo, press VCR first. setup Codes for TV/VCR Combos: Controlled by the TV America Action 0180 Audiovox 0180 Emerson 0236 Controlled by the VCR...
  • Page 29 setup Codes for TV/VCR Combos Cont: Controlled by the VCR Thomas 0000 Toshiba 0845, 1145 White Westing. 0637 Zenith 0000, 0479, 0637, 1479 setup Codes for TV/VCR/DVD Combos Controlled by the TV Akai 1903 Broksonic 1938 Diamond Vision 1996 Emerson 1944 1944 Magnavox...

  • Page 30: Programming Cable Converter Control

    PROGRaMMinG Cable COnVeRTeR The Millennium 4 is preprogrammed at the fac- tory to operate the cable converter given to you by your cable company. However, if you have another brand or model of cable converter or satellite receiver that you would like to control, then you’ll need to perform the following instructions to unlock the cable key, enter in a new code, and lock the cable key again.

  • Page 31: To Lock The Cable Key

    respond, repeat steps 2-3, trying each code listed for your brand until you find one that works. If it still does not work , try searching for the code (see Searching For Your Code on page 38). Write your Cable Converter or DBS Receiver code in the boxes below for future reference.
  • Page 32 Pulsar 0000 Quasar 0000 RadioShack 0883 1256 Regal 0279, 0273 Runco 0000 Samsung 0144 Sasktel 1737 Scientific Atlanta 1877, 0877, 0477, 0008, 0017 Sejin 1602 Sony 1006 Starcom 0003 Supercable 0276 Supermax 0883 Thomson 1256 Tocom 0012 Torx 0003 Toshiba 0000 Tristar 0883...

  • Page 33: Programming Channel Control Lock

    PROGRaMMinG CHannel COnTROl lOCK By activating this feature, the Millennium 4 will only allow access to the channel control capabili- ties of your cable converter. This will guarantee that you do not inadvertently change the channel on your TV or VCR. To activate Channel Control lock: On the Millennium 4, press and hold seTuP until the LED blinks twice, then...

  • Page 34: Programming Audio Control

    PROGRaMMinG auDiO COnTROl Using the Millennium 4’s Audio mode, you can also control an audio component, a stereo receiver, or a stereo amplifier. Locate the brand name of your audio component in the one of accompanying code lists (starting on the next page).

  • Page 35: Setup Codes For Stereo Amplifiers

    setup Codes for audio amplifiers: Adcom 0577, 1100 Bose 0674 Durabrand 1561 Elan 0647 0078 Harman/Kardon 0892 0331 Left Coast 0892 Lenoxx 1561 Luxman 0165 Marantz 0892, 0321 McIntosh 0251 Nakamichi 0321 0264 Optimus 0395, 0823 Parasound 0246 Philips 0892 Pioneer 0823 Polk Audio...
  • Page 36 Curtis Mathes 0080 Daewoo 1250 Delphi 1414 Denon 1360, 0004, 1142 Fisher 1801 Gateway 1517 Go Video 1532 Harman/Kardon 0110, 0189, 0891, 1304, 1306 Hitachi 1801 Integra 0135, 1298, 1320 0110, 1306 1374, 1495, 1811, 1871 Kenwood 1313, 1570, 1569, 0186 1390, 1412, 1428 Koss 1366, 1497...

  • Page 37: Setup Codes For Audio Accessories

    Toshiba 1788 Venturer 1390 Wards 0189, 0014, 0080 1406, 1414 Yamaha 0176, 0186, 1176, 1276, 1331, 1375 Zenith 0857, 1293 setup Codes for auDiO aCCessORies: Accurian 1106 Altec Lansing 0607, 1056, 1485 Apple 1115, 1644 Cambridge 1530 Creative 0872 D-Link 1522 1155 Integra...

  • Page 38: Searching For Your Code

    seaRCHinG fOR YOuR CODe If your TV, VCR, Cable Converter or Audio Component does not respond to the Millennium 4 after trying all of the codes listed for your brand, or if your brand is not listed at all, try searching for your code.

  • Page 39: Checking The Codes

    CHeCKinG THe CODes If you have set up the Millennium 4 using the Searching For Your Code procedure, you may need to find out which four-digit code is operating your equipment: For example, to find out which code is operating your TV: Turn on your TV.

  • Page 40: Re-Assigning Device Keys

    Re-assiGninG DeViCe KeYs The Millennium 4 can be set up to control a second TV or VCR, or any combination of four home entertainment components. For example, to have the Millennium-4 control a TV, a Cable Converter, and two VCRs, you will need to re- assign the unused auDiO key to operate the sec- ond VCR as follows: On the Millennium 4, press and hold...

  • Page 41: Changing Volume Lock

    CHanGinG VOluMe lOCK The Millennium-4 is set to control volume of a component through your TV while in the TV, VCR, or Cable mode. However, in the Audio mode, you have separate control of of your audio compo- nent’s volume. If your TV is not remote controllable, or if you would like the volume to be controlled by a dif- ferent component, you can change the Volume...
  • Page 42 Now, whenever you press Volume +, Volume –, or MuTe on the Millennium 4, volume will be controlled by your VCR. CHanGinG VOluMe lOCK (COnTinueD) To change Volume lock to the auDiO mode: NOTE: Performing these steps will allow you to access the volume control of your audio component in all modes.

  • Page 43: Troubleshooting

    TROublesHOOTinG PROBLEM: LED does not blink when you press a key. SOLUTION: Replace the batteries with two (2) new AA alkaline batteries (see page 7). PROBLEM: LED blinks when you press a key, but home entertainment component does not respond. SOLUTION: Make sure you are aiming the Millennium 4 at your home entertainment component and that you are within 15-feet of the com-...

  • Page 44: Additional Information

    For help via e-mail, contact us at: CableHelp@ueic.com Copyright 2007 by Universal Electronics Inc. No part of this publication may be reproduced, trans- mitted, transcribed, stored in any retrieval system, or translated to any language, in any form or by...
