Universal Electronics MILLENNIUM 4 User Manual

Universal electronics user's guide universal remote control millenniumtm 4
Hide thumbs Also See for MILLENNIUM 4:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Enlarged version
Millennium 4 Mnl M4094 rev
12/27/02
11:00 AM
Page 1
MILLENNIUM
™
4
Universal Remote Control
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MILLENNIUM 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Universal Electronics MILLENNIUM 4

Summary of Contents for Universal Electronics MILLENNIUM 4

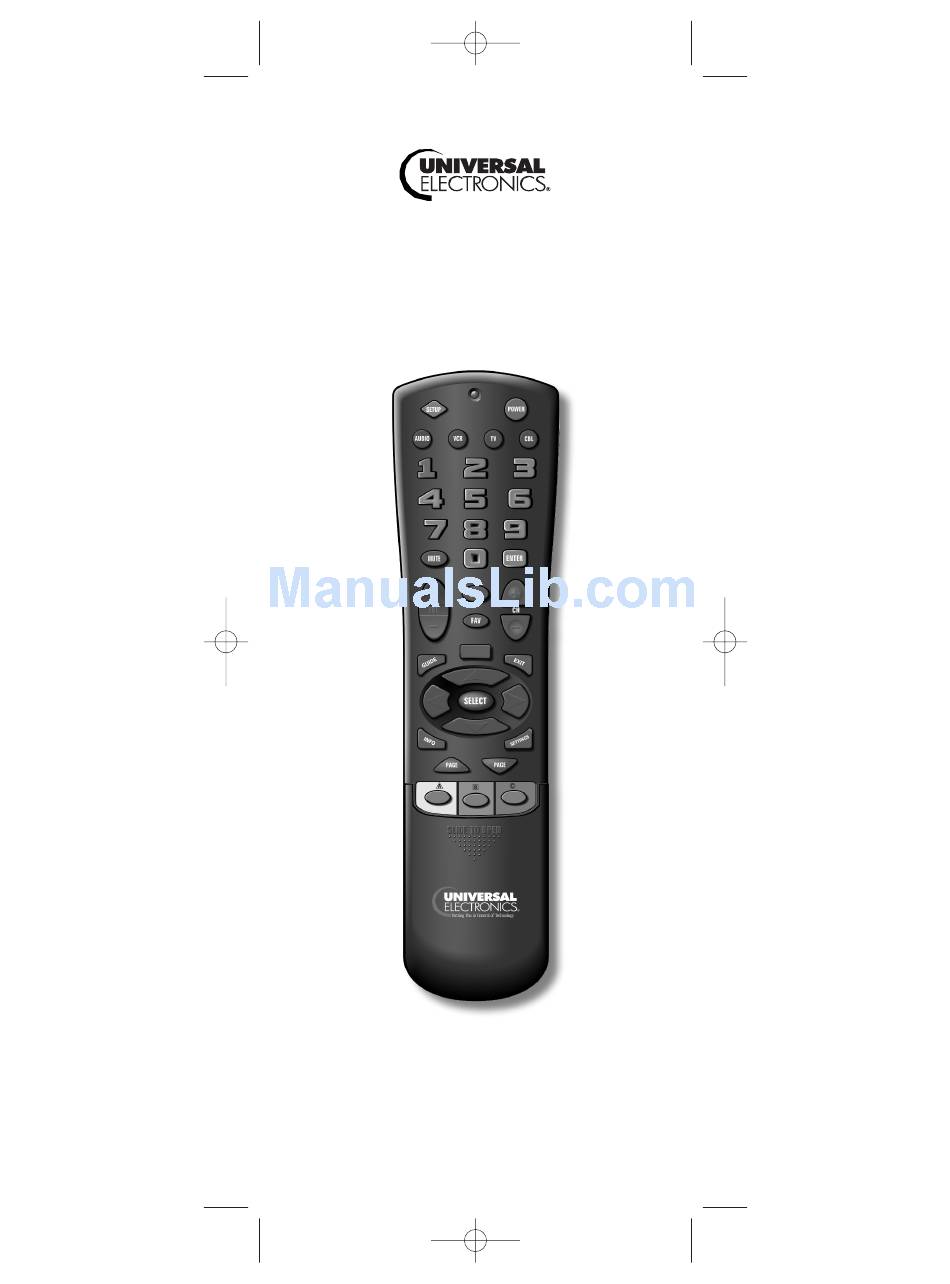

  • Page 1 Millennium 4 Mnl M4094 rev 12/27/02 11:00 AM Page 1 MILLENNIUM ™ Universal Remote Control User’s Guide...

  • Page 2: Table Of Contents

    Millennium 4 Mnl M4094 rev 12/27/02 TABLE OF CONTENTS Introduction ....... . 3 Features And Functions .

  • Page 3: Introduction

    Before you can use your new remote control, you will need to program it to operate the specific home enter- tainment components you wish to control. Follow the instructions detailed in this manual to set up your Millennium 4 and enjoy your new remote control. 11:00 AM Page 3...

  • Page 4: Features And Functions

    Millennium 4 Mnl M4094 rev 12/27/02 11:00 AM Page 4 FEATURES AND FUNCTIONS Use the illustration below to locate Millennium 4 features and then study the Key Charts (on the next two pages) to learn how they function.

  • Page 5: Key Charts

    Millennium 4 Mnl M4094 rev 12/27/02 11:00 AM Page 5 Key Charts The LED (red light) blinks to show that the remote control is working and is sending signals. Press AUDIO, VCR, TV, or CBL once to select a home entertainment component to control.
  • Page 6 Millennium 4 Mnl M4094 rev 12/27/02 FEATURES AND FUNCTIONS Key Charts (continued) Use cursor keys to move the cursor in the program guide and menu screens. Use SELECT/OK to choose options, PPV events, and to tune programs from the program guide.

  • Page 7: Installing Batteries

    LED will blink once. NOTE: Whenever batteries need replacement, the Millennium 4 will blink twice with every key press. Simply replace the batteries and the Millennium 4 will be restored to its full functionality, complete with your favorite settings. 11:00 AM...

  • Page 8: Programming Tv Control

    (see Searching For Your Code on page 24). Write your TV code in the boxes below for future reference. NOTE: Remember, to use the Millennium 4 to operate your TV, press TV first. Setup Codes for TVs: 0030, 0019...
  • Page 9 Millennium 4 Mnl M4094 rev 12/27/02 Belcor 0019 Bell & Howell 0154, 0016 Bradford 0180 Brockwood 0019 Broksonic 0236, 0463 0180 Candle 0030, 0056 Carnivale 0030 Carver 0054 Celebrity 0000 Cineral 0451, 0092 Citizen 0060, 0030, 0056, 0092, 0280 Concerto...
  • Page 10 Millennium 4 Mnl M4094 rev 12/27/02 PROGRAMMING TV CONTROL Setup Codes for TVs (continued): 0047, 0747, 0054, 0154, 0156, 0178 Logik 0016 Luxman 0056 0150, 0030, 0178, 0019 0060, 0030, 0056, 0019 Magnavox 0054, 0030, 0179 Majestic 0016 Marantz 0054, 0030...
  • Page 11 Millennium 4 Mnl M4094 rev 12/27/02 Scotch 0178 Scott 0236, 0180, 0178, 0179, 0019 Sears 0047, 0747, 0054, 0154, 0156, 0178, 0179, 0056, 0171 Semivox 0180 Semp 0156 Sharp 0093, 0688, 0165 Shogun 0019 Signature 0016 Sony 0000 Soundesign 0180, 0178, 0179...

  • Page 12: Programming Vcr/Dvd Player Control

    For Your Code on page 24). For future reference, write your device’s code and type in the boxes and space below. Device Type:________________________ NOTE: Remember, to use the Millennium 4 to operate your VCR or DVD player, press VCR first. 11:00 AM Page 12...

  • Page 13: Setup Codes For Vcrs

    Millennium 4 Mnl M4094 rev 12/27/02 Setup Codes for VCRs: Admiral 0048, 0209 Adventura 0000 Aiko 0278 Aiwa 0037, 0000 Akai 0041 America Action 0278 American High 0035 Asha 0240 Audiovox 0037 Beaumark 0240 Bell & Howell 0104 Broksonic 0184, 0121, 0209, 0002, 0479, 0295...
  • Page 14 Millennium 4 Mnl M4094 rev 12/27/02 PROGRAMMING VCR/DVD PLAYER CONTROL Setup Codes for VCRs (continued): Kenwood 0067, 0041 Kodak 0035, 0037 0037 Lloyd’s 0000 Logik 0072 0035 0240, 0043 MGN Technology 0240 0000, 0240 Magnasonic 0278 Magnavox 0035, 0039, 0081, 0000...

  • Page 15: Setup Codes For Dvd Players

    Millennium 4 Mnl M4094 rev 12/27/02 ReplayTV 0614, 0616 Runco 0039 0042 Samsung 0045, 0240 Samtron 0643 Sanky 0048, 0039 Sansui 0000, 0067, 0209, 0041, 0479 Sanyo 0047, 0240, 0104, 0046 Scott 0184, 0045, 0121, 0043 Sears 0035, 0037, 0047, 0000, 0042, 0104, 0046, 0105...

  • Page 16: Programming Tv/Vcr Combo Control

    TV/VCR Combo Brand: ________________________ The brands are listed in alphabetical order with popular codes listed first.You will use one of these codes to pro- gram the Millennium 4 to operate your TV/VCR Combo: Turn on your TV/VCR Combo and insert a video cassette.

  • Page 17: Setup Codes For Tv/Vcr Combos

    Press VCR once. The LED will blink twice. Write your TV/VCR Combo code in the boxes below for future reference. NOTE: Remember, to use the Millennium 4 to operate your TV/VCR Combo, press VCR first. Setup Codes for TV/VCR Combos:...

  • Page 18: Programming Cable Converter (Or Dbs Receiver) Control

    0000 PROGRAMMING CABLE CONVERTER (OR DBS RECEIVER) CONTROL The Millennium 4 is preprogrammed at the factory to operate the cable converter given to you by your cable company. However, if you have another brand or model of cable converter or satellite receiver that you would like to control, then you’ll need to perform the following...

  • Page 19: To Program The Cbl Key

    Searching For Your Code on page 24). Write your Cable Converter or DBS Receiver code in the boxes below for future reference. NOTE: Remember, to use the Millennium 4 to operate your Cable Converter or DBS Receiver, press CBL first. 11:00 AM Page 19 continued on next page...

  • Page 20: To Lock The Cbl Key

    (OR DBS RECEIVER) CONTROL (continued) To Lock the CBL Key: On the Millennium 4, press CBL once. Press and hold SETUP until the LED blinks twice, then release SETUP. Enter 9 - 9 - 7. The LED will blink twice.

  • Page 21: Programming Channel Control Lock

    Toshiba 0749 PROGRAMMING CHANNEL CONTROL LOCK By activating this feature, the Millennium 4 will only allow access to the channel control capabilities of your cable converter. This will guarantee that you do not inadvertently change the channel on your TV or VCR.

  • Page 22: Programming Audio Control

    Code on page 24). For future reference, write your device’s code and type in the boxes and space below. Device Type:________________________ NOTE: Remember, to use the Millennium 4 to operate your audio device, press AUDIO first. Setup Codes for Audio Amplifiers: Denon...

  • Page 23: Setup Codes For Audio Receivers

    Millennium 4 Mnl M4094 rev 12/27/02 Optimus 0395 Panasonic 0308 Philips 0892 Polk Audio 0892 Realistic 0395 Sony 0689 Soundesign 0078 Technics 0308 Victor 0331 Wards 0078 Yamaha 0354 Setup Codes for Audio Receivers: 0531 Adcom 0616 Aiwa 1405, 0121, 0405...

  • Page 24: Searching For Your Code

    SEARCHING FOR YOUR CODE If your TV,VCR or DVD Player, Cable Converter, or Audio Component does not respond to the Millennium 4 after trying all of the codes listed for your brand, or if your brand is not listed at all, try searching for your code.

  • Page 25: Checking The Codes

    Millennium 4 Mnl M4094 rev 12/27/02 CHECKING THE CODES If you have set up the Millennium 4 using the Searching For Your Code procedure, you may need to find out which four-digit code is operating your equipment: For example, to find out which code is operating your TV: Turn on your TV.

  • Page 26: Programming The Power Key

    Finally, press CBL once. Now when you press CBL once and then press POWER once, the Millennium 4 will only direct power to your Cable converter and TV, and still leave the remote control in the Cable mode. 11:00 AM...

  • Page 27: Re-Assigning Device Keys

    Millennium 4 Mnl M4094 rev 12/27/02 RE-ASSIGNING DEVICE KEYS The Millennium 4 can be set up to control a second TV or VCR, or any combination of four home entertainment components. For example, to have the Millennium 4 control a TV, a Cable Converter, and two VCRs, you will...

  • Page 28: Changing Volume Lock

    Millennium 4 Mnl M4094 rev 12/27/02 CHANGING VOLUME LOCK The Millennium 4 is set to control volume of a component through your TV while in the TV,VCR, or Cable mode. However, in the Audio mode, you have separate control of of your audio component’s volume.

  • Page 29: To Change Volume Lock To The Audio Mode

    NOTE: Performing these steps will allow you to access the volume control of your audio component in all modes. On the Millennium 4, press and hold SETUP until the LED blinks twice, then release SETUP. Enter 9 - 9 - 3 and then press AUDIO once. The LED will blink twice.

  • Page 30: Troubleshooting

    LED blinks when you press a key, but home entertainment component does not respond. SOLUTION: Make sure you are aiming the Millennium 4 at your home entertainment component and that you are within 15 feet of the component you are trying to control.

  • Page 31: Additional Information

    Millennium 4 Mnl M4094 rev 12/27/02 ADDITIONAL INFORMATION The Millennium 4 does not have any user-serviceable parts. Opening the case, except for the battery cover, may cause permanent damage to your Millennium 4. For help via the Internet, visit us at: cable.rcinfo.com...
  • Page 32 Millennium 4 Mnl M4094 rev 12/27/02 11:00 AM Page 32...
