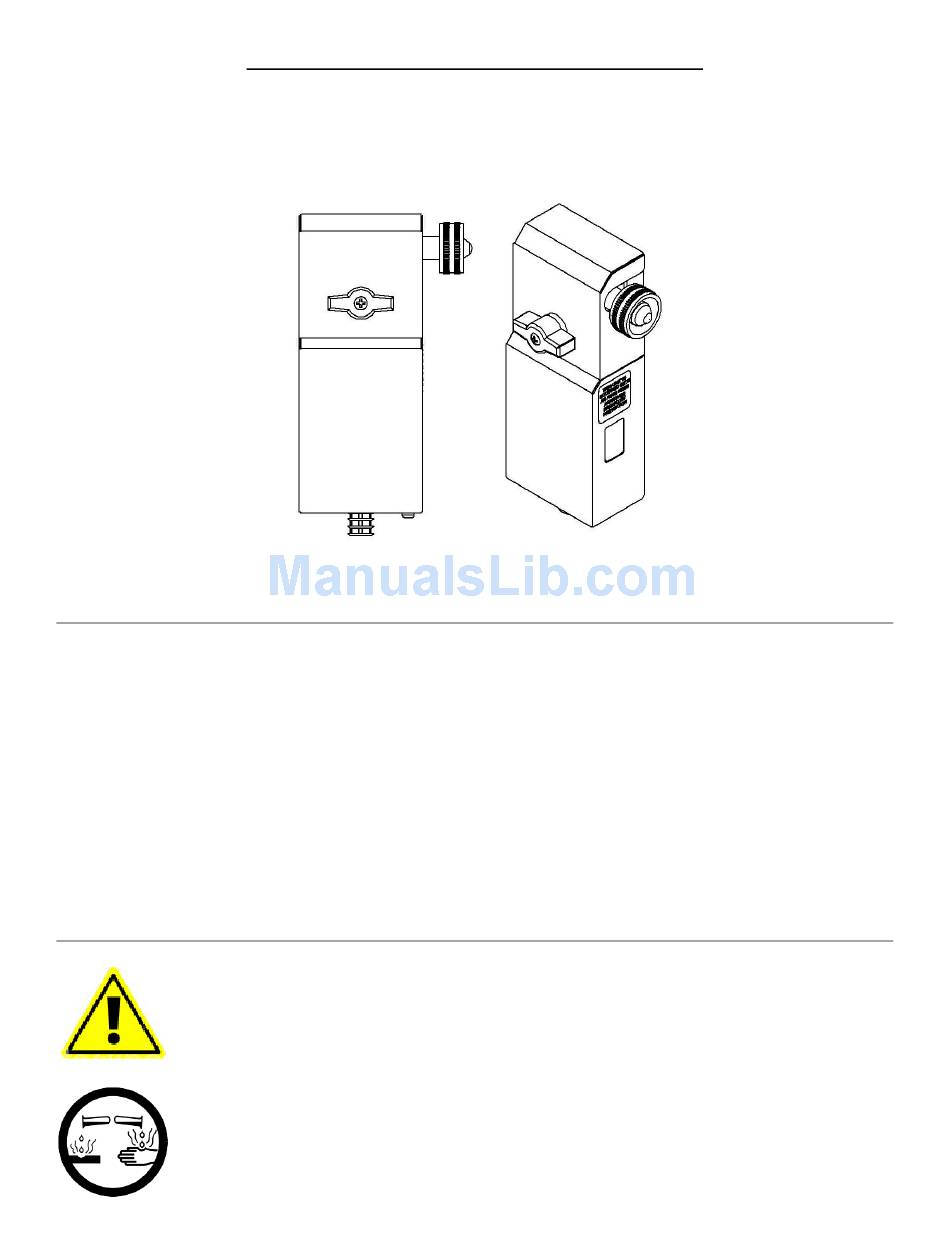

MODELS PF651GAP, PF651AG, PF651GAP-1M, & PF651AG-1M
Overview

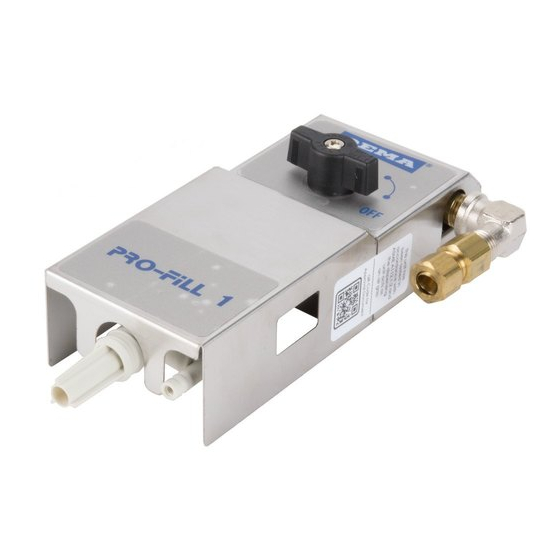

The PRO-FILL I Sink Dispenser mixes water with a cleaning chemical and dispenses the solution
into holding containers such as sinks. The dispenser is equipped with an ASSE 1055B Approved
backflow device.
Each dispenser can be set up to meet specific application needs with the ability to offer:
High flow dispensing of a single product
Chemical dilution ratios up to 7:1
Warnings
All installations must conform to local plumbing codes and use approved backflow
prevention devices. A pressure indicating tee is to be installed with existing faucets
according to local plumbing codes in the state of Wisconsin and any other state that
requires the use of a pressure indicting tee.
ALWAYS WEAR PROTECTIVE CLOTHING AND EYEWEAR WHEN
WORKING WITH CHEMICAL PRODUCTS.
I-963
Rev. E-37870 5/17/12
DEMA Pro-Fill I Sink Dispenser
Supplied metering tips allow for preset dilution ratios
4 gallon per minute dispensing
Page 1 of 6
