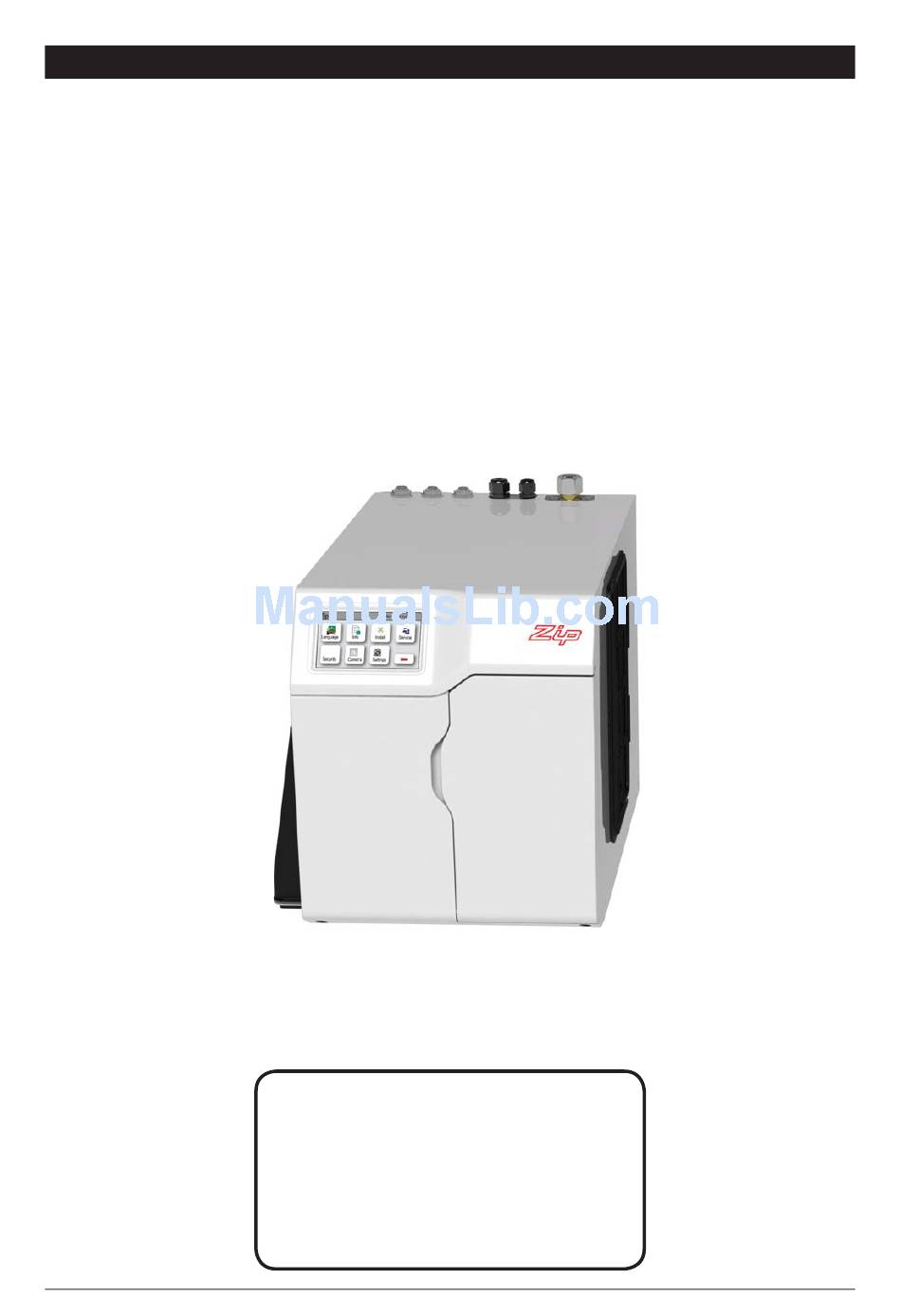

- Page 1 Installation Instructions Zip HydroTap G4 ® Filtered, Chilled and Sparkling drinking water for commercial kitchens and tea rooms. CS Commercial Affix Model Number Label Here 801910 - CS Commercial HydroTap - Installation Instructions - 09.16 v3.01 Page 1 of 20...
- Page 2 Tap options The HydroTap applaince series offers a range of interchangeable taps to suit the customer’s needs (See options below). For ease of installation, it is recommended to fit the tap before installing the undersink unit. The installation procedure for each of the taps is detailed in a separate tap installation instruction book No. 803341, supplied with the tap.
-
Page 3: Table Of Contents
Index HydroTap Specifications Installation check list ........................4 Important Safety Instructions ....................... 5 Warnings and Regulatory Information ..................6 Major components and Accessories .................... 7 Technical Specification ........................ 8 Before Installation and site requirements ..................9 Measure and cut all the tap holes before fitting the taps STEP 1 - Section 1 - See Tap Installation instructions, (supplied with the tap ) No. -
Page 4: Installation Checklist
Installation checklist Thank you for purchasing a Zip HydroTap. Please read and follow these instructions carefully to ensure safe and trouble free service. If service is required, please call 1800 638 633 Before Installation: Read the instructions and check if there is adequate space to mount all of the components. -
Page 5: Important Safety Instructions
Ensure the tap body is located so the tap outlet safely dispenses into the sink bowl area. Lifting Take care when lifting the Zip HydroTap unit. Some units may exceed safe lifting limits. If you feel this is beyond your personal capabilities, please seek assistance with the lift. The weights of the units are marked on the packaging. -
Page 6: Warnings And Regulatory Information
See section 4 for details. WARNINGS The Zip HydroTap unit must be earthed. The resistance of the earth connection from each exposed metal part must be less than 1 ohm. All Installation and service work must be completed by trained and suitably qualified Tradespeople. -
Page 7: Major Components And Accessories
Major components and accessories Parts supplied Description Accessories Description Font Kit for 1 off 4 Celsius; Arc & Cube HydroTap Models Taps with hoses (Classic tap shown) Font Kit for Classic & 1 off Elite Models HydroTap Underbench Unit with air and water filters 1 off Replacement Filter... -
Page 8: Technical Specification
Technical Specifications Commercial Models: = Chilled Sparkling, Filtered Glasses of Chilled CSHA = Celsius Chilled Sparkling, Hot & Ambient Model Water per = Disabled lever controls, (Order as an option) Hour chilled water will continue to be dispensed after the rated NOTE: capacity has been used, although this may be at slightly higher temperature. -
Page 9: Before Installation And Site Requirements
• Sufficient space in the cupboard to install all of the undersink units in accordance with these Installation Instructions. Refer to technical specifications and section 4, for Installation instructions. • For Zip HydroTap CS & CSHA models, a 220-240Vac, 10A GPO will be required. Note Note: Check all cable and hose lengths against inlet /outlet positions before pro- ceeding . -
Page 10: Section 2 - Ventilation
Section 2 Ventilation When installing air flow ducts, the following tools will be required: • Jigsaw and 12mm drill • Keyhole or Wall Board saw. Ventilation for All Models Proper air circulation must be provided for all Chilled Sparkling models. The system will operate correctly only if the recommended air gaps are achieved during Installation. -
Page 11: Alternative Ventilation
Ventilation A - Kickboard cutout Drill 4 pilot holes 12mm dia in corners Finish cutout using a Jigsaw and Keyhole or Wall board saw B - Cabinet floor cutout Drill two pilot holes 12mm dia. Finish cutout using a Jigsaw C - Cabinet floor cutout Drill 4 pilot holes 12mm dia in corners Finish cutout using a Jigsaw and Keyhole or... -
Page 12: Section 3 - Co Cylinder And Regulator 3.1 - Connect, Secure And Test The Co2 Gas Cylinder
Section 3 2.640 KG - CO Cylinder STORAGE WARNING: This cylinder mus be installed in an open plan area or in an enclosed room, with a volume no less than 50m If more than 1 gas cylinder containing CO is present within the same location, the recommended ventilated area should be in proportion to the number of gas cylinders stored in that location. -
Page 13: Co Regulator
Regulator This gauge shows the pressure in the bottle This gauge shows the adjustable limit (2.7- 3.0 bar) and indicates when the bottle is empty. Initial required for the HydroTap to function correctly bottle pressure will be 35-40 bar. Green zone Relief valve ON - OFF knob... -
Page 14: Step
Section 4 Underbench Unit Installation Hose and tube fitting • Remove all caps from the top of the undersink unit. • Fit the foam insulation to the Blue and to the White tubes after trimming them to length. • Flush the supply line before fitting to the undersink unit. •... -
Page 15: Chilled Sparkling Models Cs175
Installation Instructions Chilled Sparkling Model - CS 175 Note: All All Note: silicon tubes silicon tubes must be cut to must be cut to size. They must size. They must have a constant have a constant fall back to the fall back to the unit. -
Page 16: Celsius Chilled Sparkling Model Csha175
Installation Instructions Celsius Chilled Sparkling Model - CSHA 175 Note: All All Note: silicon tubes silicon tubes must be cut to must be cut to size. They must size. They must have a constant have a constant fall back to the fall back to the unit. -
Page 17: Section 5 - Commissioning
Section 5 Commissioning The HydroTap is now ready to be commissioned. • Turn ON the water and gas and check for any leaks. • Turn the power ON at the GPO • Familiarise yourself with the operation of the Tap, in preparation for use (See User Guide) •... - Page 18 Commissioning OPEN Position Stop cock operation CLOSED Position NOTE: For any subsequent fi lter changes or any operational procedures, please refer to the HydroTap user guide, located inside the fi lter housing access door. Page 18 of 20 - CS Commercial HydroTap - Installation Instructions - 09.16 v3.01...
-
Page 19: Trouble Shooting
Flow Sensor Fault Internal fault Call Zip Service Call an electrician, a plumber, or Zip for a free call in Australia on 1800-638-633 for assistance, service, spare parts or enquiries. End of Life Disposal In order to help preserve our environment we ask that you dispose of this product correctly. Please contact your local city council for collection centre details. -
Page 20: Contact Details
The standard cup referred to in this publication is 167 ml (6 fl oz). The standard glass is 200 ml (7 fl oz). The terms “Zip” and “HydroTap” are registered trade marks of Zip Heaters (Aust) Pty Ltd. Zip products described in this publication are manufactured under one or more of the following patents: AU675601, AU637412, AU635979, GB0422305, GB2065848, US4354049, US5103859, US5099825 and SA2006/08043.
