Operating instruction
Analytical balance
KERN ABT
KERN & Sohn GmbH
Ziegelei 1
D-72336 Balingen
E-Mail: info@kern-sohn.com
Tel: +49-[0]7433- 9933-0
Fax: +49-[0]7433-9933-149
Internet: www.kern-sohn.com
ABT-BA-e-1312

Advertisement

Table of Contents
loading

Related Manuals for KERN ABT 100-5M

Summary of Contents for KERN ABT 100-5M

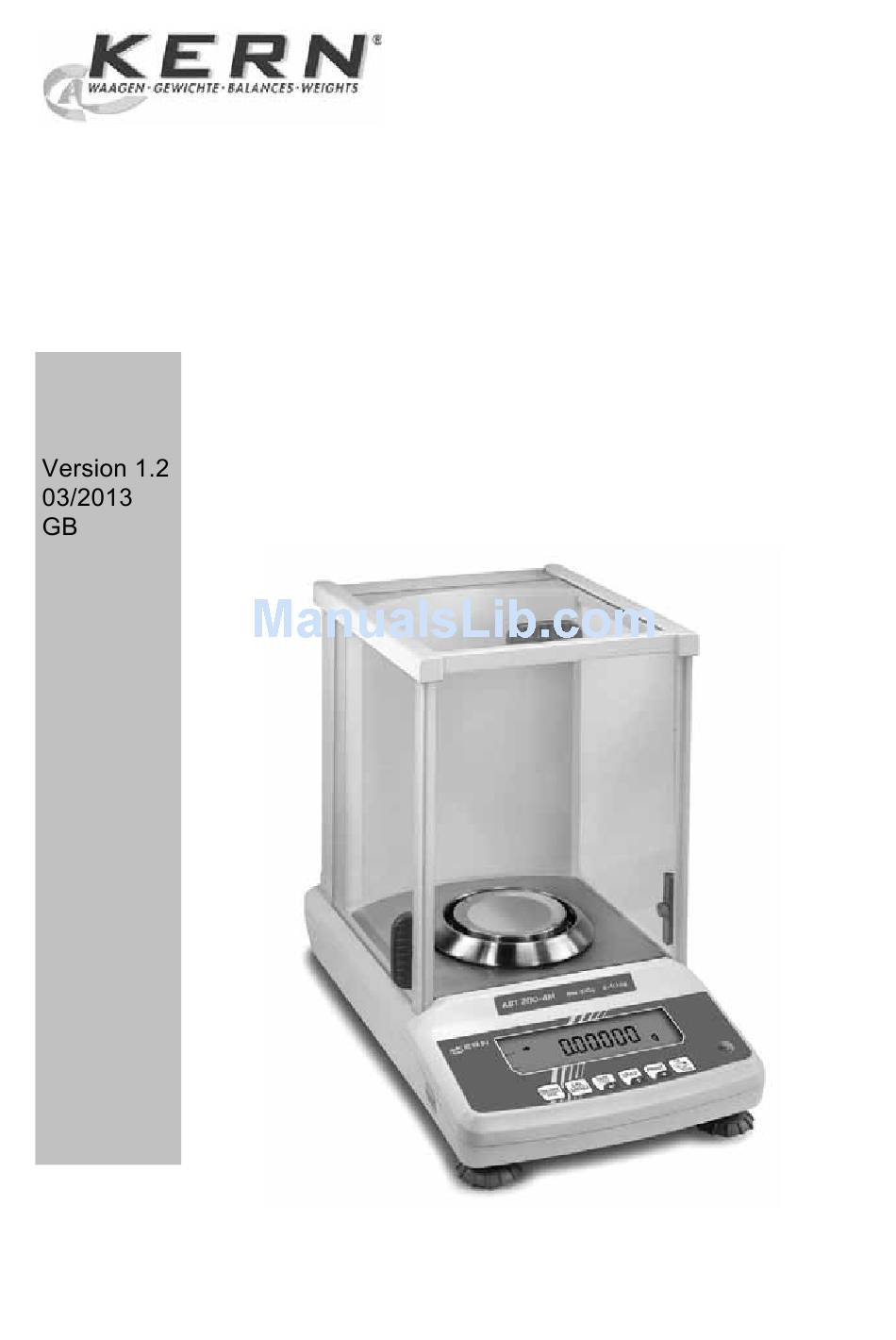

  • Page 1 KERN & Sohn GmbH Ziegelei 1 Tel: +49-[0]7433- 9933-0 D-72336 Balingen Fax: +49-[0]7433-9933-149 E-Mail: info@kern-sohn.com Internet: www.kern-sohn.com Operating instruction Analytical balance KERN ABT ABT-BA-e-1312...
