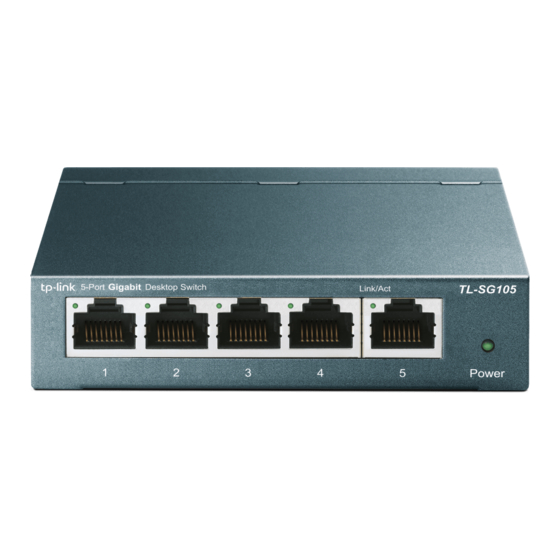

TP-Link TL-SG105 Installation Manual
5/8-port gigabit desktop switch
Hide thumbs
Also See for TL-SG105:
- Installation manual ,
- User manual (17 pages) ,
- Mounting manual (2 pages)
Advertisement
Quick Links
Download this manual
See also:
User Manual
Installation Guide
5/8-Port Gigabit Desktop Switch
TL-SG105/TL-SG108
Note:
For simplicity, we will take TL-SG108 for example throughout this Guide.
Connection
Power Adapter
Router
WAN Port
LAN Port
LED Explanation
Power
Link/Act
TL-SG108
PC
PC
On:
Power on
Off:
Power off
1000M (Green)
On:
Connected to a 1000Mbps device
Flashing:
Transmitting/receiving data
10M/100M (Yellow)
On:
Connected to a 10/100Mbps device
Flashing:
Transmitting/receiving data
Ethernet Ports (1-8)
