Installation Guide

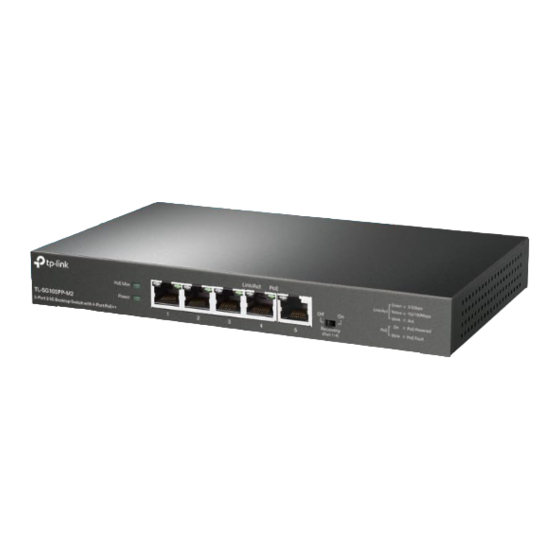

2.5G Multi-Gigabit Desktop PoE++ Switch

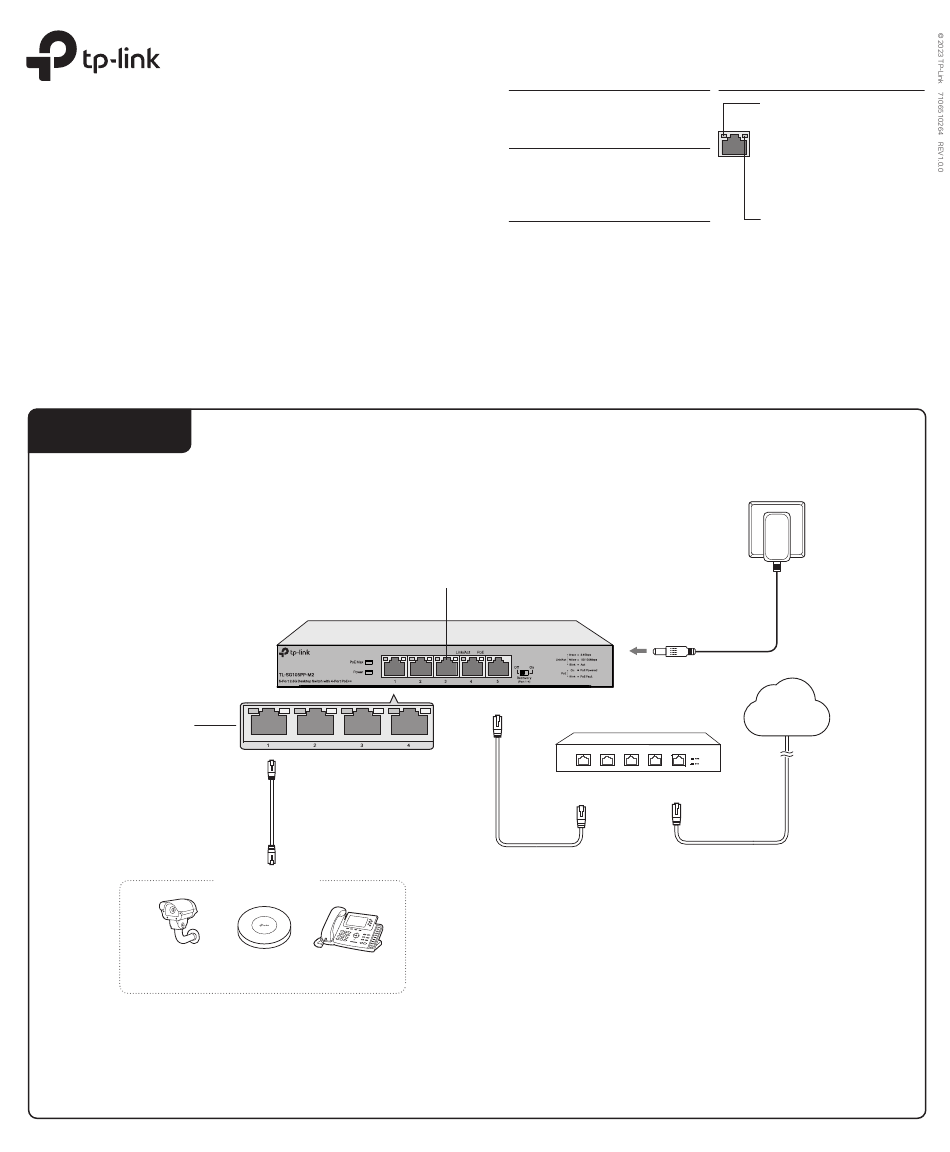

Connection
PoE Ports (1-4)
IP Camera
Ethernet Ports (1-5)
PoE Devices
AP
IP Phone
Panel Explanation
Power LED
On:
Power on
Off:
Power off
PoE Max LED
On: 116 W ≤ Total power supply < 123 W
Flashing: Total power supply ≥ 123 W
Off: Total power supply < 116 W
Recovery Switch
On:
The switch will constantly detect
the working status of a PoE
powered device (PD). When the
switch finds that the PD works
abnormally, the switch will reboot it.
Off:
The PoE Auto Recovery function is
disabled.
Router
LAN Port
Note:
1. PoE ports can also connect to non-PoE devices, but only transmit data.
2. TL-SG105PP-M2 can supply up to 60 W for each PoE port and 123 W for all PoE ports.
Link/Act and PoE Status LEDs
On (Green):
Running at 2.5 Gbps
On (Yellow):
Running at 1000/100 Mbps
Flashing:
Transmitting or receiving data
Off:
No device connected
On:
Providing PoE power
Off:
Not providing PoE power
Power Adapter
Internet
WAN Port

Advertisement

loading
Need help?

Need help?

Do you have a question about the TL-SG105PP-M2 and is the answer not in the manual?

Questions and answers

Summary of Contents for TP-Link TL-SG105PP-M2

  • Page 1 WAN Port PoE Devices IP Camera IP Phone Note: 1. PoE ports can also connect to non-PoE devices, but only transmit data. 2. TL-SG105PP-M2 can supply up to 60 W for each PoE port and 123 W for all PoE ports.
  • Page 2 Take TL-SG105PP-M2 as an example. If port 1, 2 and 4 are consuming 35 W respectively, and an additional PoE device with 23 W is connected to port 3, the system will cut off the power of port 4 to compensate for the overload.
