InBio460 Installation and Connection Guide
1.Cautions
Please note the following cautions. Mis-operation may lead to personal injury or
equipment failure:
1）Do not energize the system before installation is complete; never carry out
installation activities when the system is energized.
2）All peripheral devices must be grounded.
3）The conduits of wires under relay must be matched with metaled conduits, other wires
can use PVC conduits.
4）It is strongly recommended that the length of exposed part of any connection cable
should not be longer than 4 mm. Professional clamping tools may be used to avoid
unintentional contact of exposed wires to avoid short-circuit or communication failure.
5）It is recommended that card readers and buttons be installed at height of 1.4m-1.5m
above ground.
6）It is recommended to use the power supply for control panel, and external power
supply for each lock.
7）The appliance shall be installed and wired in accordance with national electrical
code and by qualified personnel only.
Description of normal working state:
Connect the system to the power supply. If the system works properly, the POWER
indicator (red) is lit constantly and the RUN indicator (green) flashes.

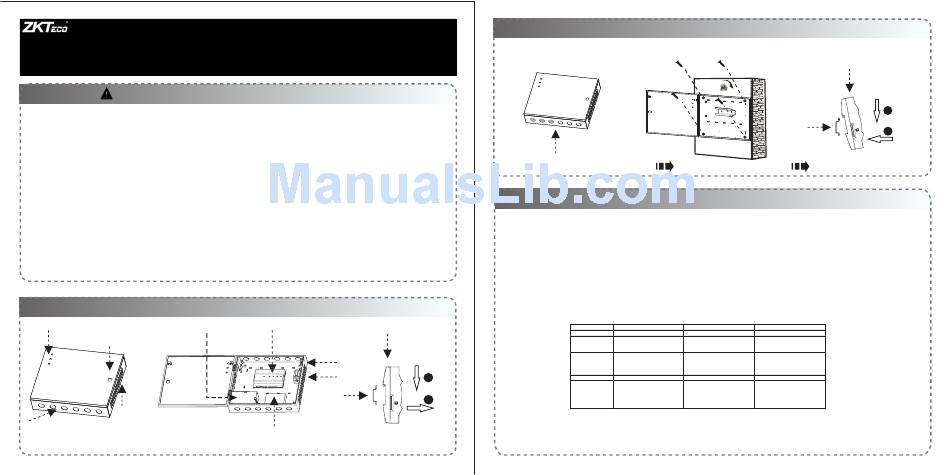

2.Components
State Indicator
Box Lock Hole
Heat
Dissipation Hole
Thread Hole

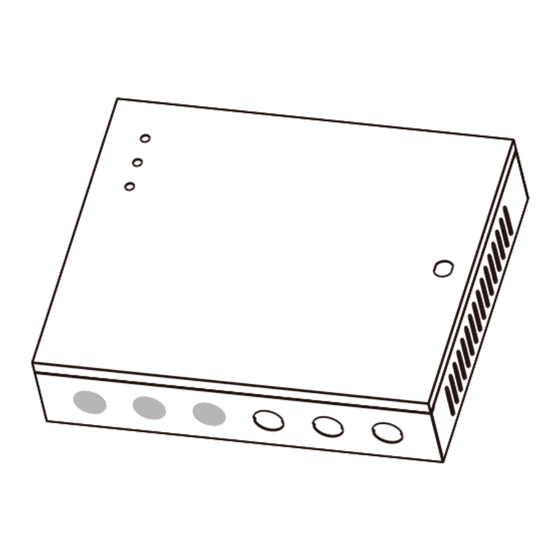

Panel Box Appearance
Version: 1.3 Date: Nov., 2015
Valve regulated lead-acid battery:
Constant voltage charge voltage regulation
Cycle use : 14.5V~14.9V(25)
Initial current: less than 2.88A
Standby use: 13.6V~13.8V(25)
Capacity: 12V, 7.2Ah/20hr,
Battery Type: LC-RA127R2T1
Caution:
Do not charge in a gas tight container.
Do not short the battery terminals.
Do not incinerate
Flush with water at once if contact is made with
electrolyte (Acid)
Do not attempt to disassemble the battery.
Backup Battery Control Panel
Temper Switch
Air Switch
Panel Track
Power Supply
Panel Box Inside
Get the Panel off the track
3.Installation
After the following installation, fix the panel to the track first, and then install other components to original
positions.
Thread holes
1) Get through the thread hole
4.LED Indicators and Wire Illustration
1) Meaning of LED indicators:
LINK indicator (green): Constant light indicates TCP/IP communication is normal;
ACT indicator (yellow): Flashing indicates data is in transmitting through TCP/IP communication.
EXT RS485 indicator (yellow&green): Flashing indicates it is sending or receiving data through RS485 communication.
PC RS485 indicator (yellow&green): Flashing indicates it is sending or receiving data through RS485 communication.
POWER indicator (red): Light always indicates the control panel is power on.
RUN indicator (green): Flashing indicates that system works normally.
CARD indicator (yellow): Flashing indicates a card is punched on reader.
2) Recommended use of wires：
Control Panel
1
2
3) The auxiliary input may be connected to infrared body detectors, alarm switches, etc.
4 The auxiliary output may be connected to door bells, alarms, etc.
)
5) State Indicators are connected to the panel box, with is power indicator, run status indicator and communication status indicator.
1
Screws
2) Fix the box
Interface Wire Specification Network cable
Power (A) 18AWG*2PIN /
24AWG*6PIN CAT-5 or above network cable, one
Wiegand (B) (6PIN, 8PIN, 10PIN for different way DC impedance is less than 100Ω
readers) /KM
18AWG*2PIN+24AWG*2PIN ,
18AWG*2PIN for lock connection,
Electric Lock (C) /
24AWG*2PIN for door sensor
connection.
Button (D) 24AWG*2PIN /
CAT-5 or above network cable, one
20AWG*2PIN+24AWG*2PIN ,
way DC impedance is less than 100Ω
20AWG*2PIN for reader power
EXT485 (E) /KM. In wire connection, +12V and
supply, 24AWG*2PIN for RS485
GND of power supply need to be
communication
parallel and use double wires.
Control Panel
1
Panel Track
2
3) Install other components
Maximum length
1.5M
100M
50M
100M
Share power with control panel: 100M
Use independence power supply
(connect RS485 signal interface only):
1000M
2
