Ferris FAST-Vac Operator's Manual

Sanapper pro grass collection systems 48” & 52” mower decks
Hide thumbs Also See for FAST-Vac:
Table of Contents

Advertisement

Quick Links

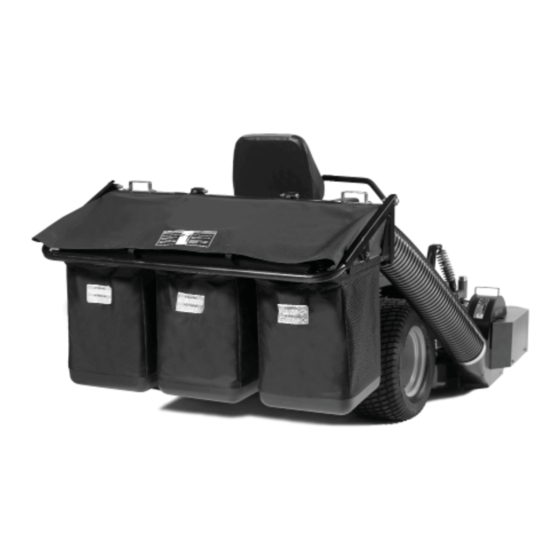

Grass Collection Systems
System Number: Description
5600539
2 Bag System - 48" Mower Deck
5600540
3 Bag System - 48" Mower Deck
5600372
2 Bag System - 52" Mower Deck
5600371
3 Bag System - 52" Mower Deck
5600373
3 Bag System - 52" Mower Deck
5600445
3 Bag System - 52" Mower Deck
5600807
3 Bag System - 52" Mower Deck
5600808
3 Bag System - 52" Mower Deck
FAST-Vac
48" & 52" Mower Decks
Fits Models:
S150XT
S50X
S150X & IS1500Z
S150XT
S150X & IS1500Z
IS500Z
S175X, S125XT, S150XT,
IS700Z & F160Z
S150X
IS2100Z
IS2500Z
IS1500Z & IS1500ZX
IS2000Z
OPERATOR'S
MANUAL
with Setup Instructions
IMPORTANT NOTE:
These FAST-Vac Systems fit 2009
and newer Model Year product
equipped with the iCD decks.
Serial Number Range:
All
S/N: 2014749760 & Above
S/N: 2014644055 & Above
All
S/N: 2014644055 & Above
S/N: 2013806686 & Above
All
S/N: 2013806686 & Above
All
S/N: 2013806686 & Above
S/N: 2013806686 & Above
S/N: 2013806686 & Above
5103134
Rev E
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAST-Vac and is the answer not in the manual?

Questions and answers

Related Manuals for Ferris FAST-Vac

Summary of Contents for Ferris FAST-Vac

  • Page 1 OPERATOR’S MANUAL with Setup Instructions FAST-Vac Grass Collection Systems 48” & 52” Mower Decks IMPORTANT NOTE: These FAST-Vac Systems fit 2009 and newer Model Year product equipped with the iCD decks. System Number: Description Fits Models: Serial Number Range: 5600539 2 Bag System - 48”...

  • Page 2: Table Of Contents

    Install the Weight Mount and Counter Weights ..21 This manual includes the setup instructions for Blower & Collector Removal ......22 installing a Fast-Vac blower with either a 2-bag or Maintenance ............23 3-bag Soft Top grass collection system. Maintenance Schedule .........23 Check the Blower Housing and Impeller ....23...

  • Page 3: Safety Rules & Information

    Safety Rules & Information SAFETY RULES & INFORMATION Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment.

  • Page 4: Safety Decals

    Safety Rules & Information Safety Decals Part Number: 7027733 - “Decal, Ear Protection” Before operating your unit, read the safety decals. The cautions and warnings are for your safety. To avoid a personal injury or damage to the unit, understand and follow all the safety decals.

  • Page 5: Safety Icons

    Safety Rules & Information 2-Bag & 3-Bag Collector Hood • Disengage the blower (blades) and remove the ignition key, wait for all parts to stop before disconnecting or unlatching any parts attached to blower or collection system. Warning - Read the Operator’s Manual. Caution - Always wear hearing protection when operating.
  • Page 6 Safety Rules & Information Danger - Thrown objects hazard: • Do not mow without discharge chute or entire grass catcher in place. Warning - Thrown objects hazard: • Do not open collection system container with engine running. • Do not operate with blower or collection system tube unlatched or missing.

  • Page 7: General Operating Instructions

    General Operating Instructions GENERAL OPERATING WARNING INSTRUCTIONS ALWAYS shut off the tractor, disengage the PTO and allow all moving parts to stop Before Operation BEFORE disconnecting or clearing tube, or Clear the lawn of all sticks, stones, wire and other emptying catcher.

  • Page 8: Installation

    Installation Installation INSTALLATION Rear Suspension Adjustment (Models Equipped with Rear Suspension) Many units equipped with rear suspension have multiple upper mounting positions for the rear shock assembly (A, Figure 1). If the unit that you are installing the collection system on is equipped with rear suspension, the upper mounting position of the rear shock assembly must be re-positioned to accommodate the additional weight of the collection...
  • Page 9 Installation Installation 7. Remove the jack from underneath the suspension cradle (or suspension cross member, depending on your unit). 8. Remove the jack stands from underneath the machine. To adjust the spring pre-load: 1. Park the machine on a flat, level surface. Engage the parking brake, disengage the PTO, turn the ignition switch to OFF, and remove the ignition key.

  • Page 10: Ball Joint Hardware Replacement

    Installation Ball Joint Hardware Replacement (Ferris IS2000Z & IS2500Z Models with 52” Mower Decks Only) The hardware and spacers that secure the rear ball joint (A, Figure 3) on the right hand front suspension arm has to be replaced with the hardware and spacer included with this kit.

  • Page 11: Prepare Discharge Chute Opening

    Installation Prepare Discharge Chute Opening Remove the Discharge Chute & Deck Guard 1. Remove the discharge chute (A, Figure 5), chute mount rod (B) and mounting hardware. NOTE: Retain the discharge chute, chute mount rod, and mounting hardware. If the blower is removed from the unit they need to be re-installed for safe operation.

  • Page 12: Preparing The Blower Mount For Assembly

    Installation Preparing the Blower Mount for Assembly Inspecting the Blower Mount Assembly Some blower mounts are equipped with an adjustable deflector bracket (A, Figure 7). If your blower mount is equipped with an adjustable deflector bracket it will need to be adjusted prior to performing the Blower Assembly procedure.

  • Page 13: Blower Assembly

    Installation Blower Assembly 1. Remove the existing 5/16-18 X 5/8” flange head bolts (B, Figure 10) from the blower housing (A). 2. Install the blower mount plate (C) onto the blower housing and re-install the 5/16-18 X 5/8” flange head bolts. Tighten securely. 3.

  • Page 14: Mower Deck Preparation

    Installation Mower Deck Preparation Remove the Mower Deck Spindle Belt The mower deck is equipped with an idler arm (A, Figure 14) which is fastened to a spring (B). Rotating the idler arm in a direction that lengthens the spring will relieve the tension on the spindle belt (C).
  • Page 15 Installation Install the Double Spindle Pulley 1. Install the double spindle pulley (C, Figure 16) and 1/4” key (D) onto the spindle shaft. 2. Install the 3/4” spring washer (B) with the cone facing up (see insert, Figure 16). Install the 3/4- 16 hex nut (A) and torque to 85-90 ft.
  • Page 16 Installation Install the Deck Guard 1. Install the new deck guard onto the mower deck and secure with the hardware previously removed (see Figure 18). Figure 18. Install Guard www.ferrismowers.com | www.snapperpro.com...

  • Page 17: Blower Installation

    Installation Blower Installation 1. Install the blower onto the mower deck. Refer to Figure 19 for the position of the pins w/ lanyards in relationship to the chute mount bracket on the mower deck. The pins w/ lanyards fit into the same holes that the chute mount rod was installed.

  • Page 18: Collector Installation

    Installation Collector Installation Remove the Rear Engine Shield (If Equipped) 1. If the engine is hot allow sufficient time for the muffler to cool, to prevent a burn injury during installation. 2. Remove the rear engine shield (C, Figure 23) from the top of the rear bumper (D) by removing the 3/8”...
  • Page 19 Installation Install the Collector Mount Plate on Flat Plate Bumpers (Including S175X Models S/N: 2016141339 & Above) 1. Install the collector mount plate (A, Figure 26) and mount tabs (B) on to the bumper. Install the 3/8-16 x 1-1/4” bolts (C) and 3/8” SAE washers (F) through the mount tabs and loosely secure with the 3/8-16 nylock flange nuts (E).
  • Page 20 Installation 2 Bag Collector Assemble Collector Hood 1. Install the inlet tube (B, Figure 28) to the collector back plate (A) and secure with the 5/16-18 x 3/4” bolts (C) and 5/16-18 nylock flange nuts (D). 2. Install the mount posts (E) on the back plate and loosely secure with the 3/8-16 x 1”...
  • Page 21 Installation Install Collector Bags 1. Raise the collector hood and slide the collector bags (A, Figure 29) onto the frame rails (B). NOTE: The collector bags are constructed with three mesh panels and one solid panel. Install the bag with the solid panel towards the front of the machine.
  • Page 22 Installation Install Hose 1. Lower the mower deck to the lowest cutting position. 2. Install the hose (A, Figure 31) onto the blower and secure with the removable clamp (with knob) (B). At least two bands must cover the outlet of the blower (C).

  • Page 23: Install The Weight Mount And Counter Weights

    Installation Install the Weight Mount and Counter Weights Weight Mount Installation (Units with 1/2” Holes) 1. Install the weight carrier (A, Figure 32) onto the front of the unit and secure with two (2) bolts (B), washers (C) and nuts (D). 2.

  • Page 24: Blower & Collector Removal

    Removal 6. Re-install the deflector plate (C, Figure 36) to the BLOWER & COLLECTOR mower deck and secure using the hardware that it REMOVAL was removed with. 1. Remove the knobs (A, Figure 34) securing the 7. Re-install the discharge chute (A) and secure with deck guard top (B) to the deck guard.

  • Page 25: Maintenance

    Maintenance MAINTENANCE Maintenance Schedule Before Each Use Check the blower housing and impeller. Check condition of collection bags. Clean muffler and rear frame area. Clear rear screen in hood (equipped models only) Every 25 Hours Lubricate the machine. Every 50 Hours Check the condition of the blower drive belt Check the Blower Housing and Impeller 1.

  • Page 26: Unplugging A Clogged Unit

    Maintenance If the blower is plugged: Unplugging a Clogged Unit 1. Park the machine on a flat, level surface. Conditions such as grass that is too long or too wet or Disengage the PTO, engage the parking brake, cutting at too fast of a ground speed could cause the turn off the ignition and remove the ignition key.

  • Page 27: Troubleshooting

    Troubleshooting TROUBLESHOOTING WARNING Troubleshooting Chart To avoid serious injury, perform maintenance on the tractor or mower only when the engine is While normal care and regular maintenance will stopped and the parking brake engaged. extend the life of your equipment, prolonged or Always remove the ignition key, disconnect constant use may eventually require that service be the spark plug wire and fasten it away from...
  • Page 28 OPERATOR’S MANUAL with Setup Instructions FAST-Vac Grass Collection Systems 48” & 52” Mower Decks Briggs & Stratton Yard Power Products Group 5375 North Main Street Munnsville, NY 13409 800-933-6175 www.ferrismowers.com www.snapperpro.com...
