Summary of Contents for Heatscope MHS-SM2200BK.200

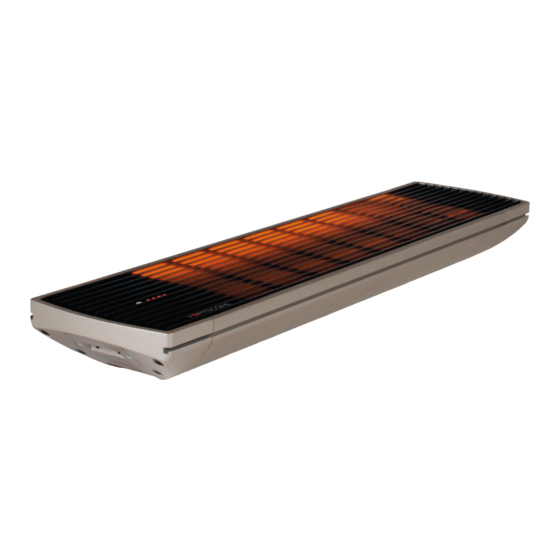

- Page 1 ORIGINAL INSTALLATION AND INSTRUCTION MANUAL Electric ambient carbon radiant heater for indoor and outdoor areas EMC IPX4 Made in Germany...
-
Page 2: Safety Information
M U N I C H H O M E S Y S T E M S SAFETY INFORMATION HEATSCOPE® infrared heaters must be installed and executed only by an authorized expert / trained professional electrician in accordance with the applicable standards and regulati ons for electrical wiring in electrical trade in the respecti ve country / region of installati on. - Page 3 1. Please check that your HEATSCOPE® radiant heater and accessories are complete and not damaged. In special take care of the glass holders of the model range VISION, which hold and surround the glass ceramic front screen.
- Page 4 Nevertheless, it is mandatory to install the unit on a surface where it is well protected from any weather infl uences like rain and dust from above; so the HEATSCOPE® has to be installed under a roof, an overhang or in combionati on with the opti onal available weather shield. Never install the HEAT...
- Page 5 A M B I E N T H E A T I N G S O L U T I O N S components or parts of the housing may only be replaced by a service organisation enlisted by the manufacturer.
- Page 6 M U N I C H H O M E S Y S T E M S bathtube, shower or pool should never reach the switch or controller of the heater. If the HEATSCOPE® is installed in such an environment with high humidity, the switches or other operati ng components must be positi oned in such a way that they cannot be touched by persons who are in direct contact with water.
- Page 7 A M B I E N T H E A T I N G S O L U T I O N S Phone: 001-310-9295333-1001 · Fax: 001-310-7335070 · E-Mail: info@greenchance.net · www.greenchance.net...
- Page 8 M U N I C H H O M E S Y S T E M S Ceiling Installati on ≤ A ≥ B ≥ B A (inch) B (inch) A (inch) B (inch) MHS-SM1600/MHS-SP1600 ≤ 9.45 ≥ 5.32 MHS-VT1600/MHS-VE1600 ≤...
-
Page 9: Wall Mounting
A M B I E N T H E A T I N G S O L U T I O N S Wall mounting ≤ A ≥ B ≥ B ≤ A ≤ A ≥ B ≥ B ≥ B ≥... -
Page 10: Manual Control
M U N I C H H O M E S Y S T E M S M U N I C H H O M E S Y S T E M S Manual control MHS-SM1600BK.100, MHS-SM2200BK.100, MHS-SM2800BK.100, MHS-SM1600WT.100, MHS-SM2200WT.100, MHS-SM2800WT.100 MHS-VE1600BK.100, MHS-VE2200BK.100, MHS-VE3200BK.100, MHS-VE1600WT.100, MHS-VE2200WT.100, MHS-VE3200WT.100 LED:... - Page 11 A M B I E N T H E A T I N G S O L U T I O N S A M B I E N T H E A T I N G S O L U T I O N S IR remote control MHS-SP1600BK.100, MHS-SP2200BK.100, MHS-SP2800BK.100, MHS-SP1600WT.100, MHS-SP2200WT.100, MHS-SP2800WT.100...
- Page 12 Electrical connecti on MHS-SP1600BK.100, MHS-SP2200BK.100, MHS-SP2800BK.100, MHS-SP1600WT.100, MHS-SP2200WT.100, MHS-SP2800WT.100 MHS-VT1600BK.100, MHS-VT2200BK.100, MHS-VT3200BK.100, MHS-VT1600WT.100, MHS-VT2200WT.100, MHS-VT3200WT.100 HEATSCOPE® SP // HEATSCOPE® VT 220240 V AC~ 50/60 Hz Circuit breaker / fuse switch on installati on side GreenChance Inc. · 11265 Washington Blvd. · USA CA90230...
- Page 13 A M B I E N T H E A T I N G S O L U T I O N S MHS-SM1600BK.100, MHS-SM2200BK.100, MHS-SM2800BK.100, MHS-SM1600WT.100, MHS-SM2200WT.100, MHS-SM2800WT.100 MHS-VE1600BK.100, MHS-VE2200BK.100, MHS-VE3200BK.100, MHS-VE1600WT.100, MHS-VE2200WT.100, MHS-VE3200WT.100 HEATSCOPE® SM // HEATSCOPE® VE 220240 V AC~ 50/60 Hz Circuit breaker / fuse switch on installation side acc.
- Page 14 M U N I C H H O M E S Y S T E M S Minimum distances wall mounti ng The following installati on regulati ons ensure that the HEATSCOPE® ambient heater is working eff ecti vely. All minimum clearances that must be met regardless of the installati on environment are listed.
- Page 15 A M B I E N T H E A T I N G S O L U T I O N S The clearances given are minimum values and may differ from the local building and fire regulations. The latter must be observed and complied with in any case. Phone: 001-310-9295333-1001 ·...
- Page 16 M U N I C H H O M E S Y S T E M S Minimum distances ceiling mounti ng The following installati on confi gurati on ensures that the HEATSCOPE™ radiant heater is working eff ecti vely. All the minimum clearances that must be met regardless of the installati on environment are listed.
- Page 17 A M B I E N T H E A T I N G S O L U T I O N S The clearances given are minimum values and may differ from the local building and fire regulations. The latter must be observed and complied with in any case. Phone: 001-310-9295333-1001 ·...
- Page 18 Minimum distances in glasshouses and conservatories The following installati on confi gurati on ensures that the HEATSCOPE™ radiant heater is working eff ecti vely. All the minimum clearances that must be met regardless of the installati on environment are listed.
- Page 19 A M B I E N T H E A T I N G S O L U T I O N S The clearances given are minimum values and may differ from the local building and fire regulations. The latter must be observed and complied with in any case. >...
- Page 20 Please keep this instructi on manual in a safe place. Pass on the manual to any subsequent owner of the HEATSCOPE® unit and ensure that any supplements received are included along with it (cf. www. heatscope.com).
- Page 21 A M B I E N T H E A T I N G S O L U T I O N S Phone: 001-310-9295333-1001 · Fax: 001-310-7335070 · E-Mail: info@greenchance.net · www.greenchance.net...
- Page 22 It is mandatory to install the unit on a surface where it is well protected from any weather infl uences like rain and dust from above; so the HEATSCOPE® has to be installed under a roof, an overhang or in combionati on with the opti onal available weather shield.
- Page 23 Use only a very soft cloth or a brush for the reflector and the heating elements. CAUTION! Do not use a high pressure hose or other high pressure water equipment to clean HEATSCOPE® ambient heaters. Do not use any sharp objects and aggressive cleaning agents under no circum stances.
- Page 24 M U N I C H H O M E S Y S T E M S Guarantee and warranty The HEATSCOPE® is guaranteed for 24 months. The warranty period begins on the date on which the new unit was purchased. Expendable parts or defects that aff ect the usability of the unit only slightly are not covered by the guarantee.
- Page 25 A M B I E N T H E A T I N G S O L U T I O N S Technical data HEATSCOPE SPOT HEATSCOPE VISION ® ® Operati ng voltage 110120 V AC ~, 50/60 Hz...
-
Page 26: Care Instructions
M U N I C H H O M E S Y S T E M S The following instructi ons and markings must be observed and complied with in any case and under any circumstances. Care instructi ons CARE INSTRUCTIONS! Important! Before fi rst use, please clean the heater surface with an alcohol-free customary glass cleaner. - Page 27 A M B I E N T H E A T I N G S O L U T I O N S General instructions based on international standards and specifications UL499 Cl. 53.15: CAUTION! a) Have a qualified electrician install a properly grounded receptacle outlet, acceptable for outdoor use and protected from snow and rain, immediately adjacent to the location where the heater will be used.
- Page 28 THE NORTHERN COUNTRIES USA, CANADA, NORTH AMERICA FRANCE Denmark, Sweden, Norway, Finland, Iceland GreenChance Inc. Culver City SARL HEATSCOPE FRANCE lifeform - Henrik Bach Eisensee, Sales Agency Rainer Heimann ZI Les gresses Gerdrupvej 236 11265 Washington Blvd. 26290 Donzère FRANCE DK 4230 Skælskør...
