Cessna 150 STANDARD Service Manual page 99

REFER TO
FIGURE 6-3
2
REFER TO
FIGURE 6-2
Detail
G
6
4
Detail
A
F
..
~ "O
Detail
F
NOTE
Carry-thru cable turnbuckle may be located
at either the right or left aileron bellcrank.
*
BEGINNING WITH AIRCRAFT
SERIALS 15076621, A1500587,
F15001249 AND FA1500282.
1. Right Direct Cable
2. Direct Cable Turnbuckle
3. Carry-Thru Cable Turnbuckle
4. Pulley Bracket
5. Bushing
6. Cable Guard
7. Pulley
8. Clip
9. Fairlead
10. Carry-Thru Cable
11. Left Direct Cable
12. Spacer
Detail
B
E
I
-'\
' ' ' ' ' '
Detail
E
6
NOTE
.... Shaded pulleys are used
in this system only.
I~~UTIQN\
6
MAINT AIN PROPER CONTROL
CABLE TENSION.
CABLE TENSION:
40 LBS
±
10 LBS ON AILERON CARRY-
THRU CABLE (AT AVERAGE TEMPER-
ATURE FOR THE AREA.)
REFER TO FIGURE 1-1 FOR TRAVEL.

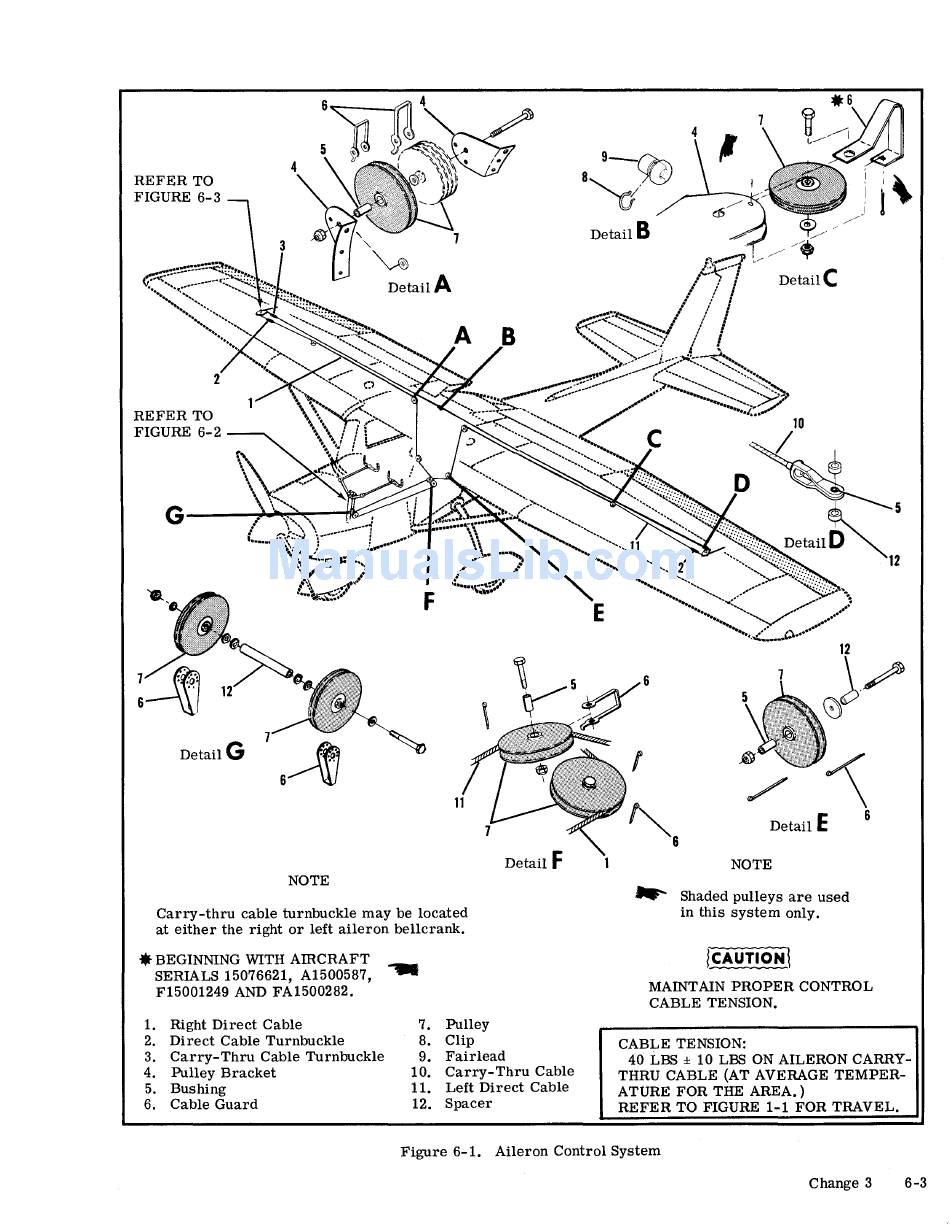

Figure 6-1. Aileron Control System
Change 3 6-3
