16-26
NOTE
... Screw or nut
may be installed.
12
Detail
A
1971 MODELS & ON
1. Nutplate
2. Lamp
3. Socket
4. Reflector
5. Rivet
6. Bracket
7.
Screw
8.
Washer
9.
Bracket
10. Speaker
11. Plate
12. Cover
13. Lens
14. Adjustment Shield
15. Grille
16. Nut

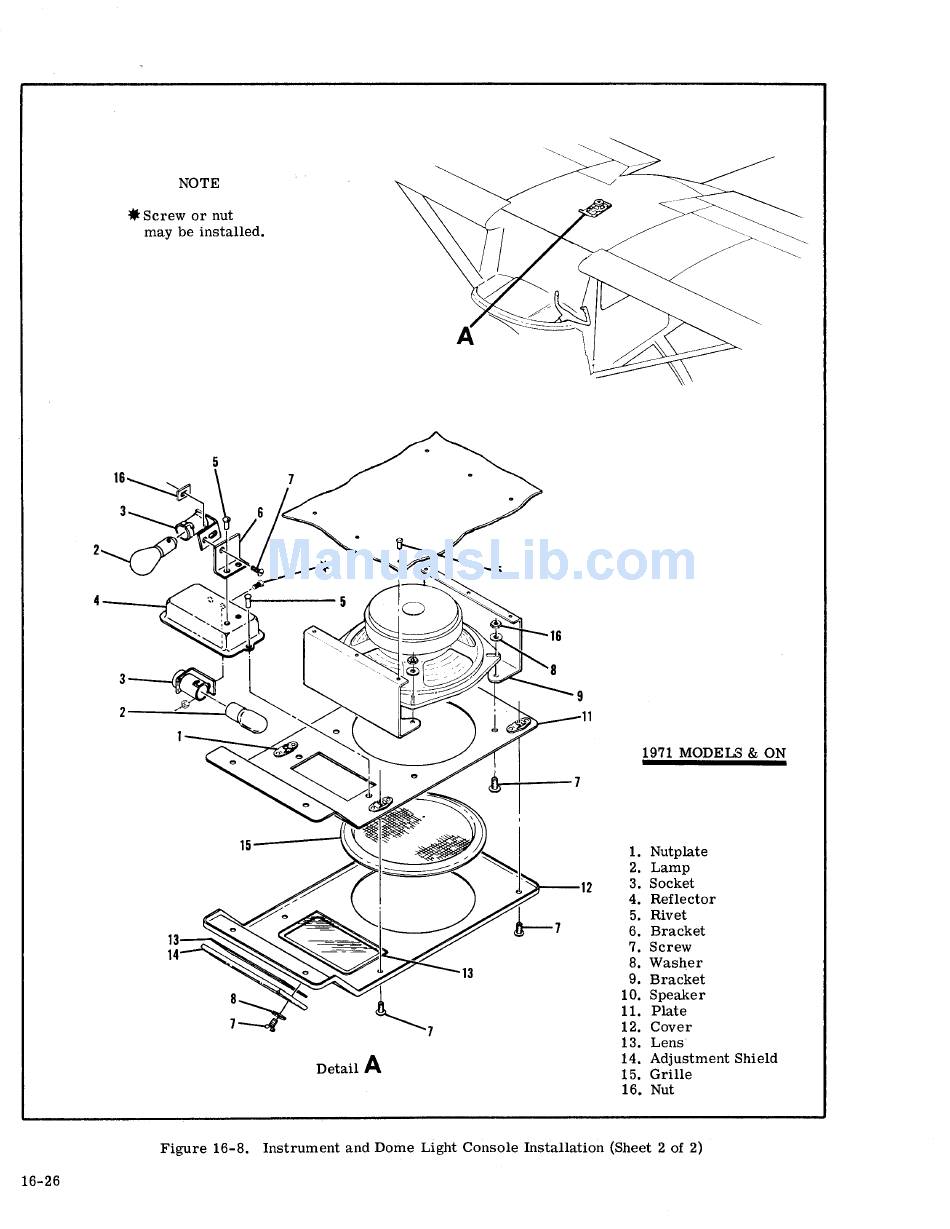

Figure 16-8. Instrument and Dome Light Console Installation (Sheet 2 of 2)
