Summary of Contents for Texecom Premier Elite ComIP

  • Page 1: Installation Manual

    Installation Manual Premier Elite ComIP INS273-6 Product Type - CEJ0000...
  • Page 2 Once the control panel is connected to a network the following functions can be achieved: • Upload/Download via Wintex UDL • Receive Push Notifications, Arm, Disarm, Part Arm & Reset via Texecom mobile app's • Signal alarms to an Alarm Receiving Centre •...
  • Page 3: Supported Control Panels

    Premier Elite ComIP Installation Manual Typical WAN configuration Supported Control Panels The ComIP module is supported on the following Premier & Elite Series control panels, this manual assumes use with Premier Elite panels: • Premier 412/816 816 Plus & 832 •...

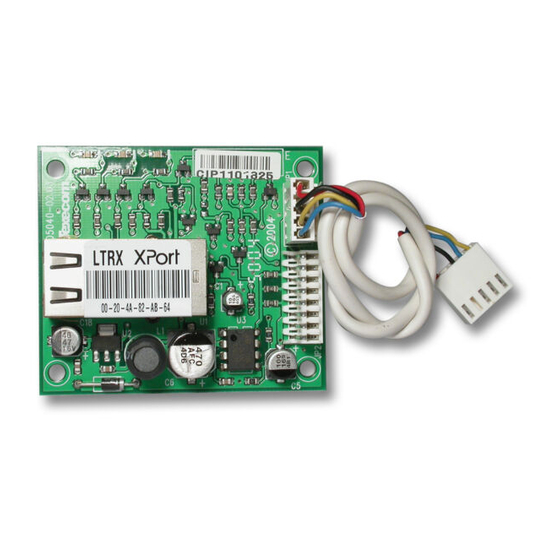

  • Page 4: Pcb Layout

    Premier Elite ComIP Installation Manual PCB Layout   5-way harness connection to control panel Network status LED (Right)   ComIP Status LEDs RJ45 network Connection   Network status LED (Left) MAC address Left LED Right LED Meaning...
  • Page 5: Installation

    Premier Elite ComIP Installation Manual Installation Introduction This step by step guide will allow you to achieve the following and should be carried out in the order detailed in the manual. • Installation • Assign an IP address manually Reserve the IP address Set the DHCP Pool •...
  • Page 6: Automatically Assigned Ip Address (Dhcp)

    Premier Elite ComIP Installation Manual Gateway The gateway address, or router, allows communication to other LAN/WAN segments. The gateway address should be the IP address of the router connected to the same LAN segment as the ComIP. The gateway address must be within the local network.
  • Page 7: Dhcp Reservation

    Premier Elite ComIP Installation Manual You now know the address range being used by the router. The Default Gateway is the actual router itself. So you can now decide how you want to configure the ComIP. • If assigning an address within the DHCP pool you should reserve the IP address for the ComIP.
  • Page 8: Port Forwarding

    Exit Engineers mode on the control panel. The control panel can now be accessed on the LAN. However, to access the panel from the Texecom mobile apps or Wintex remotely, additional steps are required within the various programmes and the control panel.
  • Page 9: Wintex Setup

    DDNS provider. Without this service Wintex will not work remotely. 6. Texecom mobile app's Texecom mobile apps can be used to access the system either remotely or locally. The apps are supported on iOS & Android devices and can be downloaded from the respective app stores. All three apps are configured identically for access.
  • Page 10: Local Connection

    For remote connections it is highly recommended that you enable Push Notifications. This will mean that Texecom will track the IP address and update it as required. If the service provider does not provide you with a fixed IP address (most don't) you will require a third party DDNS provider to allow the app to operate remotely if you do not "Enable"...
  • Page 11 Premier Elite ComIP Installation Manual allocated by the Server. Record all of the details here for future use, and if you choose to add an additional device to receive notifications from the same site. Setting up additional devices to receive notifications from the same site requires that ALL details are Identical all devices.
  • Page 12 Premier Elite ComIP Installation Manual • Press / and then enter the six digit XXXXXX Account Number you were given in the • Press / then / (Dial Attempts) enter a minimum of 2 • Press / twice • Press / and edit the Areas you wish to receive notifications for.
  • Page 13 Premier Elite ComIP Installation Manual panel will automatically recover itself once the network is available. However to avoid this potential inconvenience please see below. EN50131 System With an EN50131 installed system, the warning about an ATS Failure will only be visible to the User when they enter their code and the fault is still present.
  • Page 14: Operation

    Push Notifications Push notifications are used entirely at the users own risk and Texecom will accept no liability for system failure, missed communications, failure of polling, failure of message delivery or any other failing which may occur.
  • Page 15: Specifications

    ATS level 2 and environmental class 1 or 2. Warranty All Texecom products are designed for reliable, trouble-free operation. Quality is carefully monitored by extensive computerised testing. As a result the ComIP is covered by a two-year warranty against defects in material or workmanship.
  • Page 16 Texecom Limited, Bradwood Court, St. Crispin Way, Haslingden, Lancashire BB4 4PW, England. Technical Support: UK Customers Tel: 08456 300 600 (Calls charged at 3.36 pence per minute from a BT landline. Calls from other networks may vary.) International Customers Tel: +44 1706 233875 Email: techsupport@texe.com...
