Keysight Technologies
P-Series Power Meters and
P-Series Wideband Power Sensors
Configuration Guide

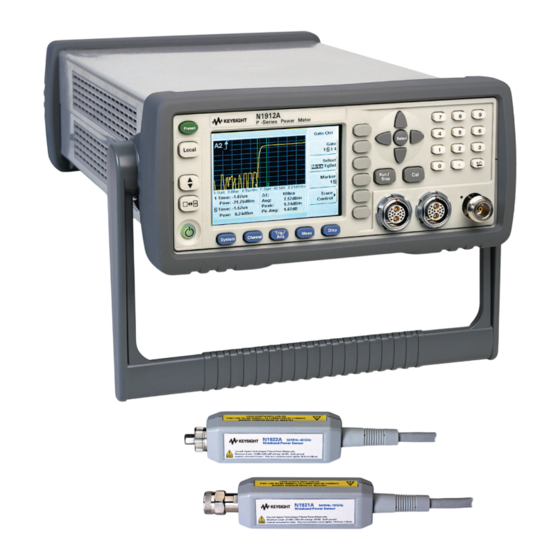

P-Series Power Meters:
N1911A Power Meter (single channel)
N1912A Power Meter (dual channel)
P-Series Power Sensors:
N1921A Power Sensor (50 MHz to 18 GHz)
N1922A Power Sensor (50 MHz to 40 GHz)
Advertisement
Related Manuals for Keysight N1911A
Summary of Contents for Keysight N1911A

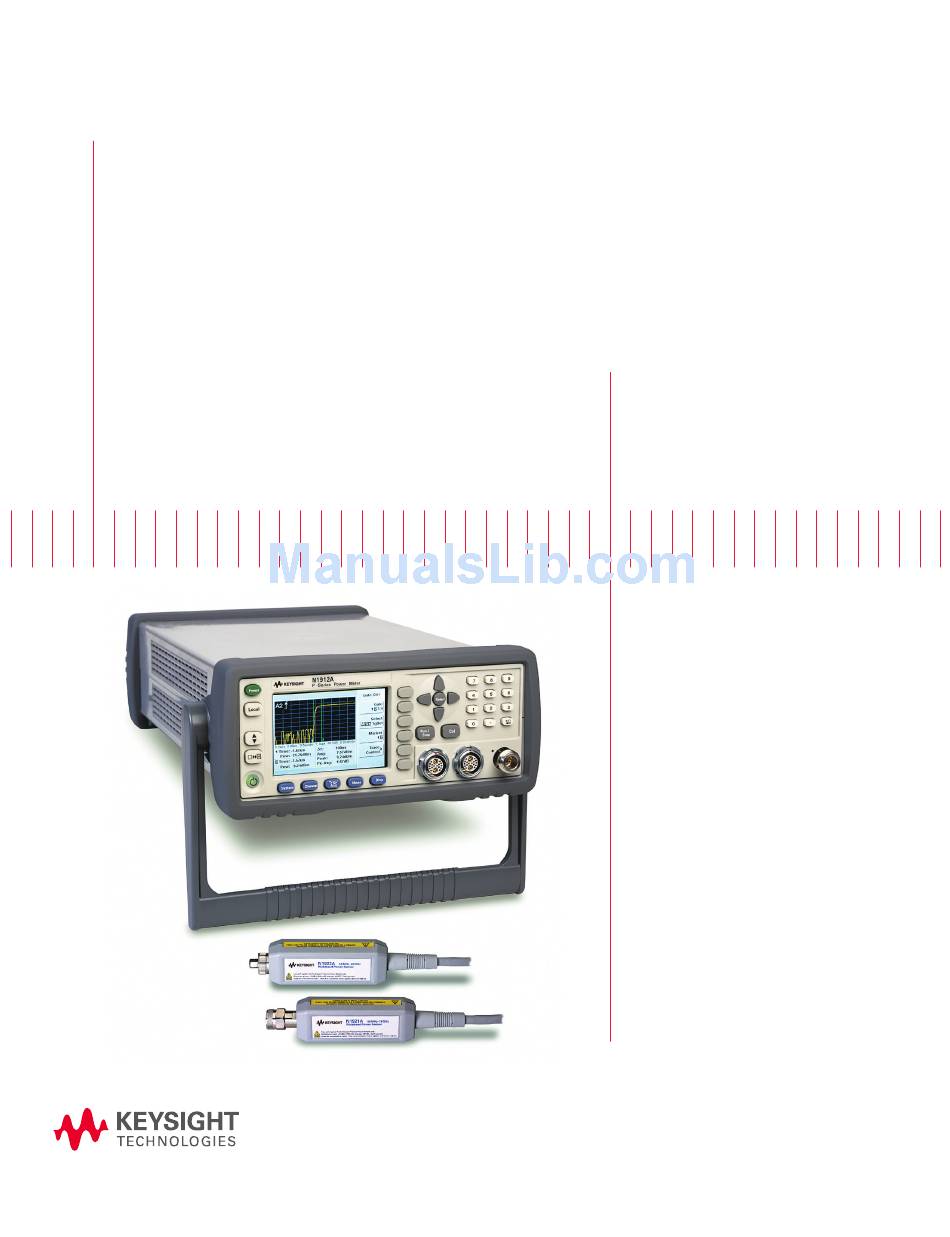

- Page 1 P-Series Power Meters and P-Series Wideband Power Sensors Configuration Guide P-Series Power Meters: N1911A Power Meter (single channel) N1912A Power Meter (dual channel) P-Series Power Sensors: N1921A Power Sensor (50 MHz to 18 GHz) N1922A Power Sensor (50 MHz to 40 GHz)
- Page 2 02 | Keysight | P-Series Power Meters and P-Series Wideband Power Sensors – Configuration Guide Introduction This configuration guide describes standard configurations, options and compatible accessories. Contact your local Keysight Technologies, Inc. representative for additional information. P-Series Power Meters The P-Series power meters provide peak, average, peak-to-average ratio power measurements, time-gated and free run modes, rise time, fall time and pulse width measurements.
- Page 3 03 | Keysight | P-Series Power Meters and P-Series Wideband Power Sensors – Configuration Guide Compatibility Power sensor compatibility The P-Series power meters are compatible with all current (N)8480, E-Series and P-Series power sensors. Refer to the Accessories section, P-Series meter cable adaptors N1917A/B and C.
-
Page 4: Cable Accessories
04 | Keysight | P-Series Power Meters and P-Series Wideband Power Sensors – Configuration Guide P-Series Power Meter Optional Accessories Table 2. P-Series power meter optional accessories. Accessory part number Description N1911A-908 Rack mount kit (one instrument) N1912A-908 N1911A-909 Rack mount kit (two instruments) -
Page 5: Calibration Option
05 | Keysight | P-Series Power Meters and P-Series Wideband Power Sensors – Configuration Guide Calibration Option The P-Series power meters and sensors are available with Option 1A7 (ISO17025 compliant calibration) or Option A6J (ANSI Z540 compliant calibration). Documentation The P-Series power meters are supplied with a Product Reference CD which contains the installation guide, user’s guide, programing guide and service guide User’s Guide Programming... - Page 6 06 | Keysight | P-Series Power Meters and P-Series Wideband Power Sensors – Configuration Guide For more information on Keysight Technologies’ products, applications or Download your next insight services, please contact your local Keysight office. The complete list is available at: www.keysight.com/find/contactus...
