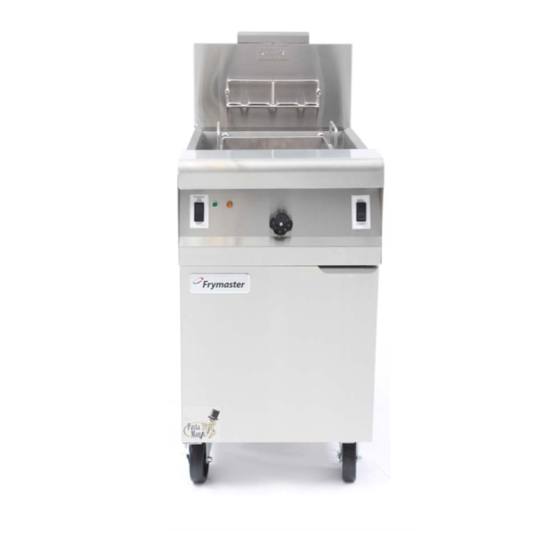

Frymaster Pasta Magic Service Manual

Gas water cooker
Hide thumbs Also See for Pasta Magic:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual
Frymaster, a member of the Commercial Food Equipment Service Association, recommends
using CFESA Certified Technicians.
24-Hour Service Hotline
03/2015
1-800-551-8633
*8197227*
www.frymaster.com
E-mail:
service@frymaster.com
Original Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pasta Magic and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frymaster Pasta Magic

Summary of Contents for Frymaster Pasta Magic

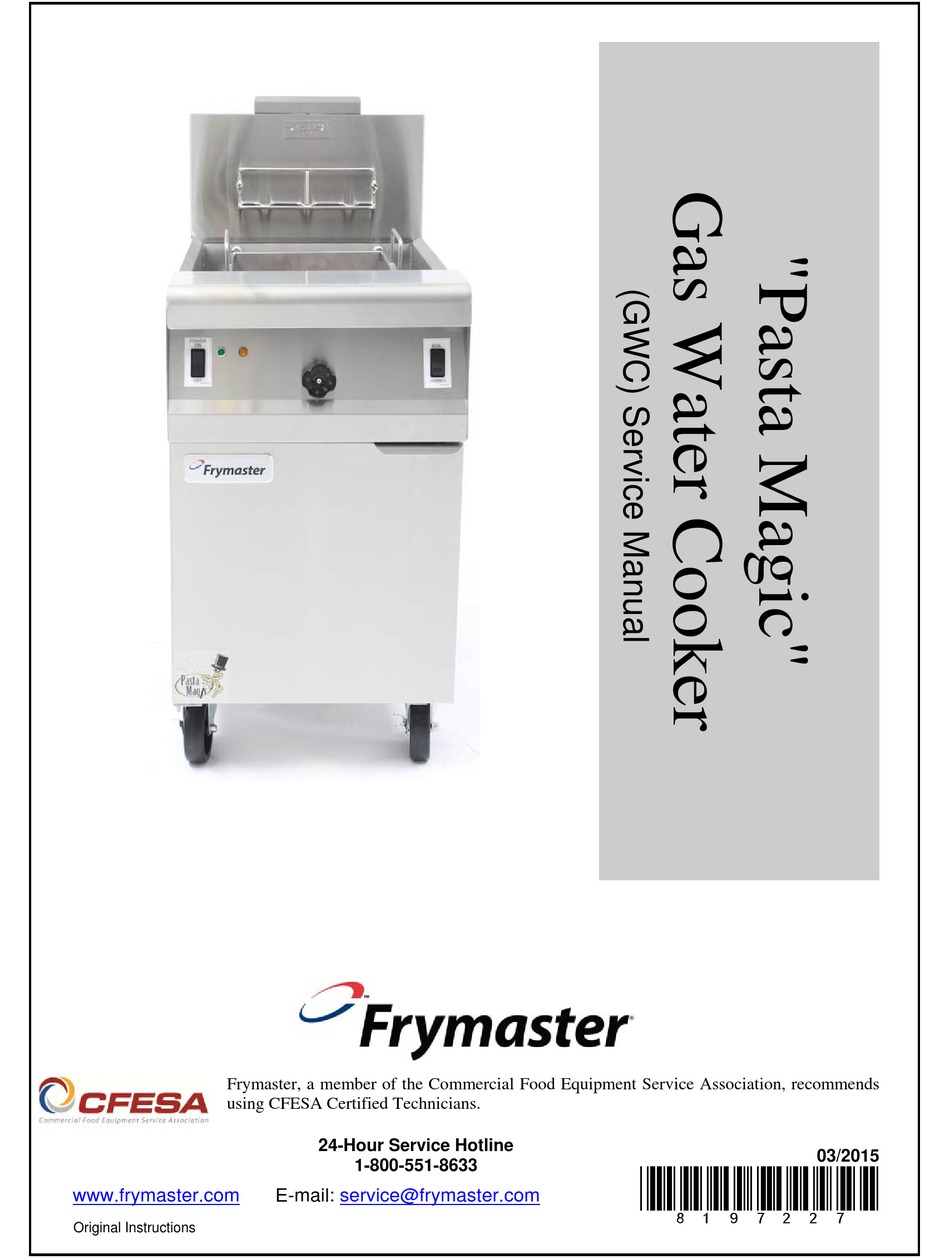

  • Page 1 Frymaster, a member of the Commercial Food Equipment Service Association, recommends using CFESA Certified Technicians. 24-Hour Service Hotline 03/2015 1-800-551-8633 *8197227* www.frymaster.com E-mail: service@frymaster.com Original Instructions...
  • Page 2 RECEIVED FROM AN UNAUTHORIZED SERVICER. NOTICE This appliance is intended for professional use only and is to be operated by qualified personnel only. A Frymaster Factory Authorized Servicer (FAS) or other qualified professional should perform installation, maintenance, and repairs. Installation, maintenance, or repairs by unqualified personnel may void the manufacturer’s warranty. See Chapter 1 of this manual for definitions of qualified personnel.
  • Page 3 Read the installation, operating, and service instructions thoroughly before installing or servicing this equipment. DANGER Prior to movement, testing, maintenance and any repair on your Frymaster cooker; disconnect ALL electrical power cords from the electrical power supply. WARNING Use caution and wear appropriate safety equipment to avoid contact with hot water or surfaces that may cause severe burns or injury.

  • Page 4: Table Of Contents

    PASTER MAGIC GAS WATER COOKER (GWC) SERVICE MANUAL TABLE OF CONTENTS CHAPTER 1: Service Procedures Functional Description ....................... 1-1 Accessing Equipment for Servicing ................... 1-3 Replacing Equipment Components ..................1-3 1.3.1 Replacing Electronic Components ..............1-3 1.3.2 Replacing a Float Switch or the Thermostat ............1-4 1.3.3 Replacing the Water Faucet ................

  • Page 5: Chapter 1: Service Procedures

    CHAPTER 1: SERVICE PROCEDURES Functional Description The Pasta Magic GWC Gas Cookers have a 12.7-gallon (48.1-liter) stainless steel cookpot. The water in the cookpot is heated by a high-efficiency infrared heating system that requires approximately 43% less energy than conventional burner systems to heat the same volume of water.
  • Page 6 The SIMMER mode feature maintains the water temperature just below boiling, which conserves energy and water. This feature is designed for rethermalizing previously cooked packaged products and for keeping the cooker in standby. The SKIM function on this cooker is manual. The purpose is to cause the water in the cookpot to overflow into the drain, carrying floating starch with it.

  • Page 7: Accessing Equipment For Servicing

    A thermostat monitors the temperature in the cookpot. When the setpoint temperature is reached, the contacts open, which de-energizes the 24VAC heat relay, thus cutting line voltage to the blower and the 24VAC to the ignition module. Accessing Equipment for Servicing DANGER Moving this equipment while it is filled with hot water may cause spilling or splattering of the hot water.

  • Page 8: Replacing A Float Switch Or The Thermostat

    1.3.2 Replacing a Float Switch or the Thermostat 1. Drain the cookpot and disconnect the cooker from the electrical power supply. 2. Remove the screw attaching the faucet handle. 3. Remove the screws in bottom of the control panel to allow access to the thermostat or float switch.

  • Page 9: Replacing Gas Supply System Components Or Ignitor Assemblies

    7. Replace the faucet 8. Reverse steps 1-6 to complete the procedure. 1.3.4 Replacing Gas Supply System Components or Ignitor Assemblies 1. Disconnect the cooker from the electrical power supply and from the gas supply. If necessary, disconnect restraints to gain proper access to components. 2.

  • Page 10: Replacing The Cookpot

    3. Reconnect the cooker to the gas supply and check all connections for leaks using a solution of soapy water. DANGER DO NOT use matches, candles, or other ignition methods to check for leaks. 4. When satisfied that there are no leaks, reconnect the unit to the electrical supply, and reconnect any restraints disconnected in Step 1.

  • Page 11: How The Power Supply System Works

    1.4.1 How the Power-Supply System Works Line voltage is supplied to the system via a power cord that is plugged or hard-wired into the store’s electrical service. The power cord is connected to pins 1 and 5 of the high voltage 8-pin terminal block.
  • Page 12 PROBLEM PROBABLE CAUSES CORRECTIVE ACTION A. Water level below float switch. A. Add water above float switch. B. Clean float switch shaft. Ensure Burner will not light; B. Float switch is stuck. float switch moves freely on trouble light is on. shaft.

  • Page 13: Wiring Diagram

    1.4.4 Wiring Diagram GWC...
  • Page 14 Shipping Address: 8700 Line Avenue, Shreveport, Louisiana 71106 TEL 1-318-865-1711 FAX (Parts) 1-318-219-7140 (Tech Support) 1-318-219-7135 Price: $8.00 SERVICE HOTLINE 8197227 PRINTED IN THE UNITED STATES 1-800-551-8633 03/2015...
