4.3 DIP-switch Configuration Interface

All the configuration values on FJ-RC-MBS-1 can be written and read from Modbus interface.
Otherwise, some of them can also be setup from its on-board DIP-switch interface.

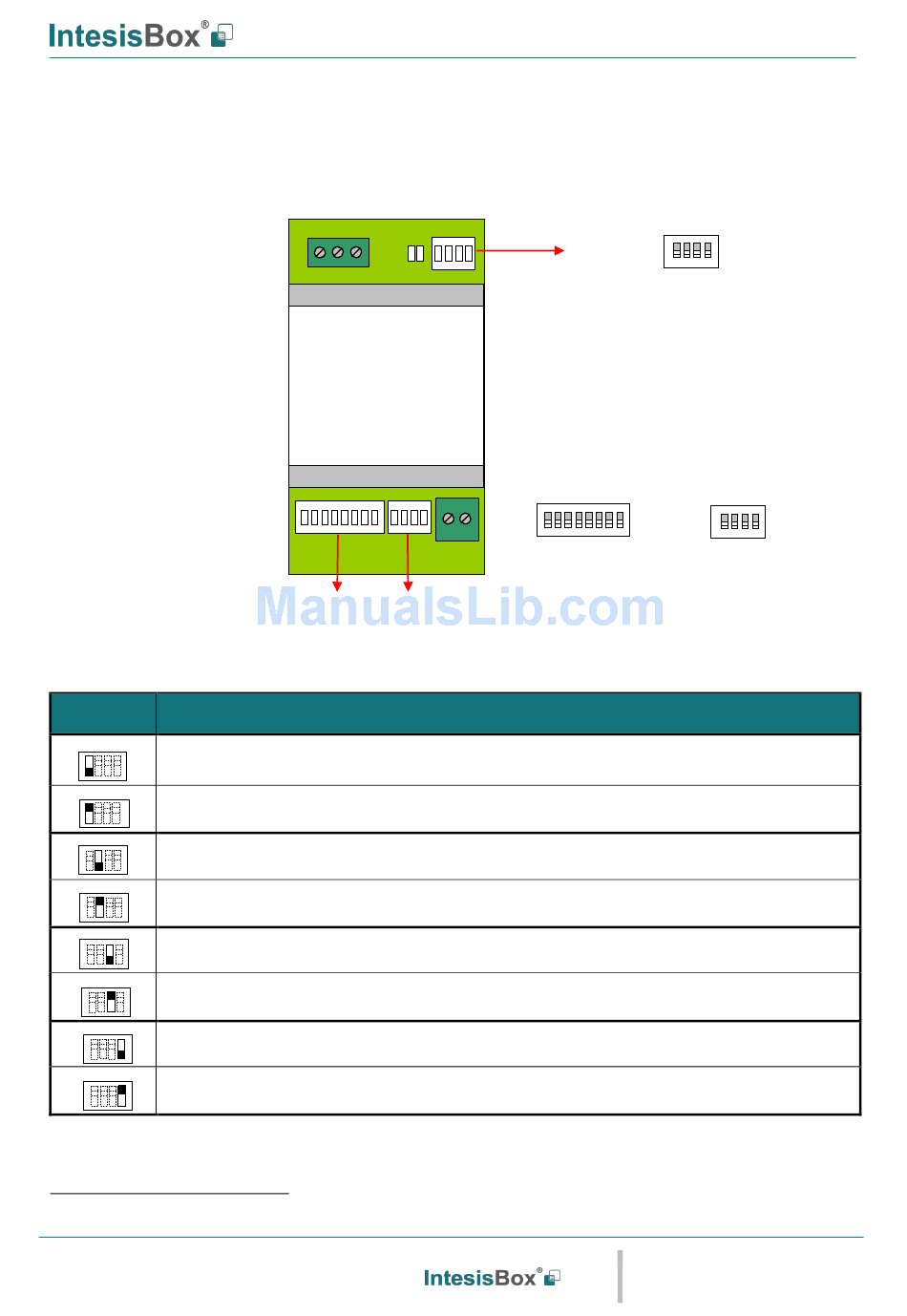

The device has DIP-switches SW1, SW3 and SW4 on the following locations:
The following tables apply to the interface´s configuration through DIP-switches:
SW1 – AC indoor unit's features
SW1-P1..4 Description
ON
Slave - A Fujitsu Controller must be present in BWR bus, configured as Master (Default value)
ON
Master – Fujitsu Controller not needed in BWR bus. If it exists, it must be configured as Slave
ON
Keep the switch into this position (Default value)
ON
Do not turn the switch into this position (not applicable)
ON
Machine type: RAC inverter model G series, VRF J-II, VRF V-II or VRF VR-II
ON
Machine type: RAC inverter, RAC non-inverter, VRF V, VRF S or VRF J
ON
Keep the switch into this position (Default value)
ON
Do not turn the switch into this position (not applicable)
* G series stands for units that include a 'G' just before the power number in its reference. E.g.: ASYG09LTCA
10
© Intesis Software S.L.U. - All rights reserved
This information is subject to change without notice
IntesisBox ® is a registered trademark of Intesis Software SLU
FJ-RC-MBS-1
B W R
AC Unit
IntesisBox
FJ-RC-MBS-1
SW3 SW4
Table 4.1 SW1: AC indoor unit´s features
SW1
®
EIA485
A+ B-
ON
1 2 3 4 5 6 7 8
SW3
URL
Email
Phone
User's Manual r1.9 EN
ON
1 2 3 4
SW1
ON
1 2 3 4
SW4
10 (Default value)
