Hook Holder - Brother Dream Quilter 15 Service Manual

Hook Holder

Tools Needed:
• 3mm Allen Wrench - Green Handle
1. Rotate your hook assembly so that the positioning guide is at the highest point during
rotation.
2. Attach your hook holder to your sewing machine with a M5 X 10 FHCS (don't tighten
the screw during this step) with the hook holder's finger in the middle of the hook
assembly's positioning guide.
3. Slide your hook holder away from the hook hssembly so there is about a 0.75mm gap
(it's hard to measure so just make it as big of a gap as possible with the hook holder
still in the positioning guide) between the hook holder and the hook assembly, and
tighten the M5 X 10 FHCS.

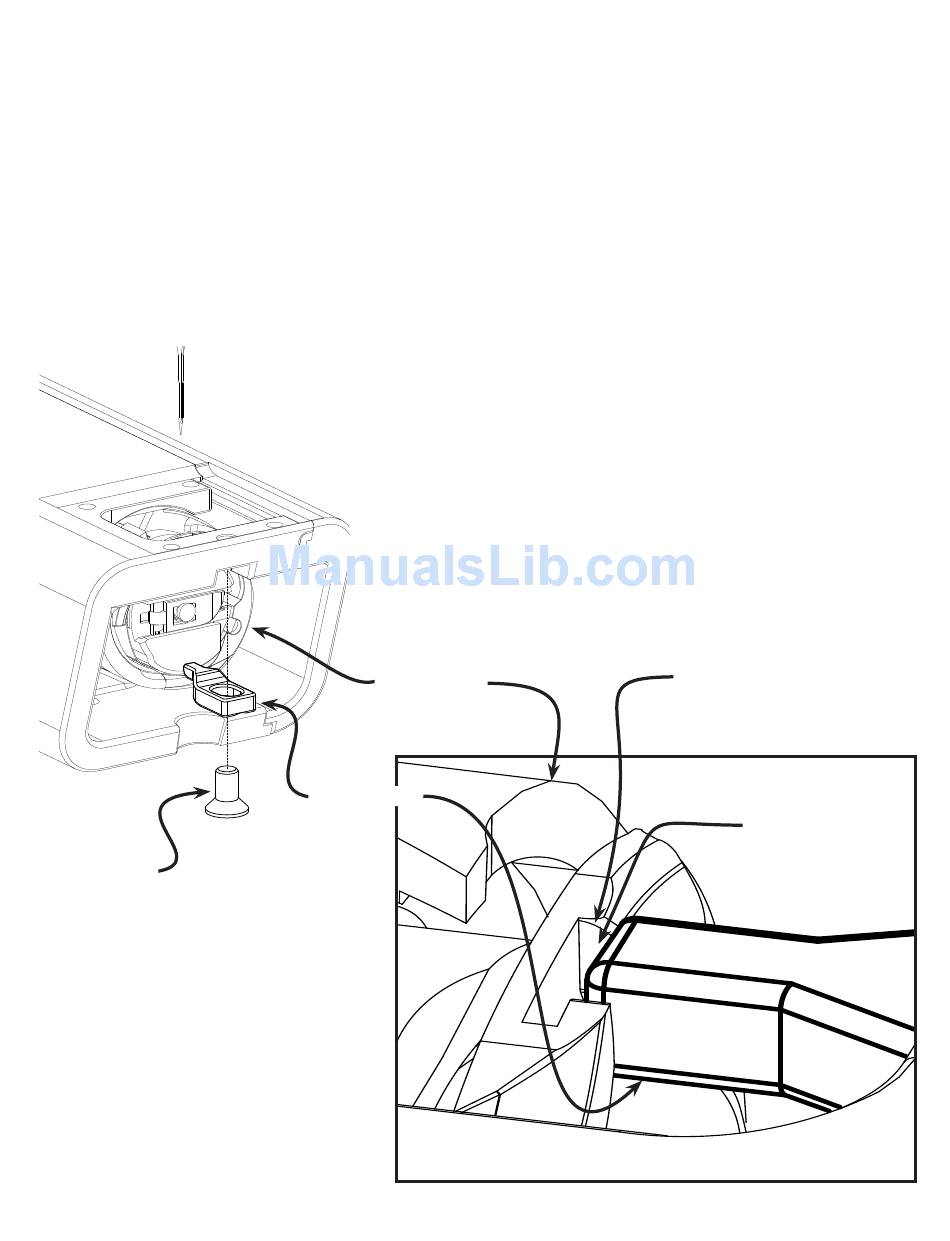

M5 X 10 FHCS
Hook Assembly
Hook Holder
7
Assembly
Hook Assembly
Positioning
Guide
0.75mm Gap
between Hook
Holder and Hook
Assembly
