Star SWCBE Installation And Operation Instructions Manual
Waffle bakers
Hide thumbs
Also See for SWCBE:
- Specifications (2 pages) ,
- Installation and operation instructions manual (24 pages) ,
- Installation and operation instructions manual (6 pages)
Advertisement
Quick Links
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Star SWCBE
Summary of Contents for Star SWCBE

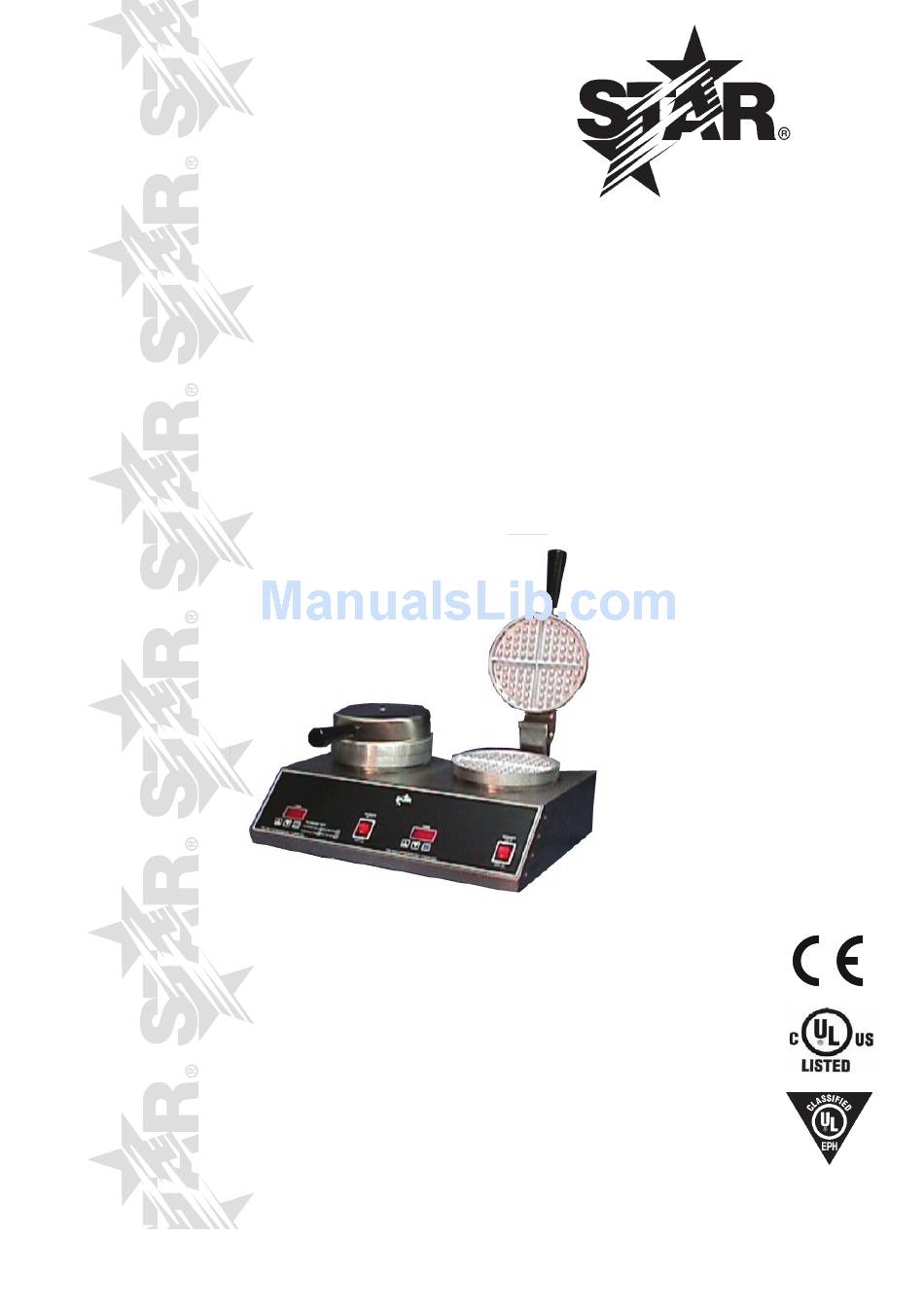

- Page 1 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 WAFFLE BAKERS MODEL SWCBE SWB7R1E SWB7R2E SWB7RBE SWB8SQE SWB8RBLE SWB8RBDE Installation and Operation Instructions 2M-Z7728 Rev. G 8/12/2013 SWB7RB2...
-
Page 2: Safety Symbol
RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. Star reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. - Page 3 Weight Model Voltage Watts Amps Cord Installed Shipping 120V 1,320 11.0 NEMA 5-15P 208V NEMA 6-15P 29lb 32lb SWCBE (13kg) (14.5 kg) 230V 1,210 CEE7-7 240V 1,320 NEMA 6-15P 120V NEMA 5-15P 208V NEMA 6-15P 23lb SWB7R1E 20lb (9kg) (10.5kg)
-
Page 4: Installation
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. -
Page 5: Making Waffles
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 MAKING WAFFLES Turn the unit on and allow to pre-heat for 15 minutes with the grids closed. Once the baker has reached proper temperature you can proceed as follows: . - Page 6 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 CLEANING For non-coated grids: Clean outside of baker every day that it is in use. Do not clean grids unless a buildup of carbon forms.
- Page 7 LIMITED EQUIPMENT WARRANTY All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair of defects without charge, by the factory authorized service agency or one of its sub-agencies.
- Page 8 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901...
- Page 9 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901...
- Page 10 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901...
- Page 11 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901...
- Page 12 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901...
- Page 13 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901...
- Page 14 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 MODEL: SWB7RBE, SWB8RBLE; BELGIAN WAFFLE BAKER SK2062, REV.A-, 8/12/13...
-
Page 15: Parts List
Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 PARTS LIST August , 0, Rev G Model: SWB7RBE / SWB8RBLE Belgian Waffle Baker Fig No Part Number Quantity Description Application 2P-Z1735 PLUG CAP 3/4 B9-73010... - Page 16 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 Grid Pattern Not Illustrated 21 22 23 24 MODEL: SWB7R1E, WAFFLE BAKER SK2063, REV. A, 8/08/13...
- Page 17 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 PARTS LIST August , 0, Rev G Model: SWB7R1E / SWB7R2E Waffle Baker Fig. No Part No Description Application 2P-Z1735 PLUG CAP 3/4 SWB7R1E/SWB7R2E 2C-Z2670 NUT 1/4-20 W/LOCKWASHER...
- Page 18 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901...
- Page 19 M-Z5 CONTROL PANEL OVERLAY IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star International Holdings, Inc. Company...
- Page 20 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901 LOCKING MECHANISM MODEL: SWCBE STAR MANUFACTURING INTERNATIONAL, INC. REV. - SK2065 03/03/04...
- Page 21 M-Z5 CONTROL PANEL OVERLAY IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star International Holdings, Inc. Company...
- Page 22 Total Restaurant Supply - https://totalsupply1.com - Toll Free 1-800-944-9304 - Local 507-288-9454 2940 Hwy 14 W, Rochester, MN 55901...
- Page 23 M-Z5 CONTROL PANEL OVERLAY IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE INCLUDE MODEL AND SERIAL NUMBER Some items are included for illustrative purposes only and in certain instances may not be available. Star International Holdings, Inc. Company...
- Page 24 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of it's contents is permitted. STAR MANUFACTURING INTERNATIONAL, INC. MODELS: WAFFLE BAKERS REV.
