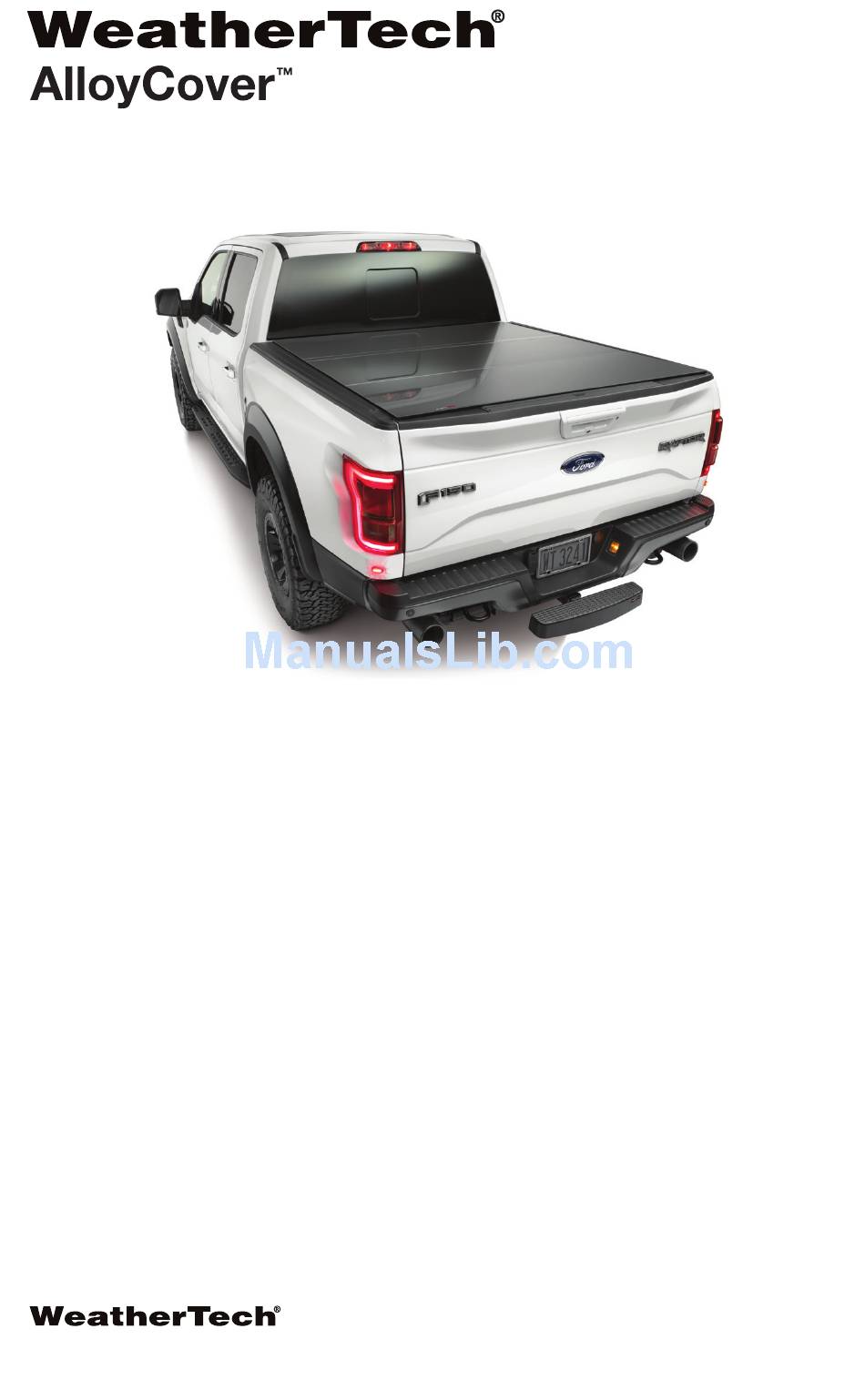

INSTALLATION INSTRUCTIONS AND OWNER'S MANUAL
Thank you for purchasing the AlloyCover
pride using superior quality materials and workmanship. With proper care, your cover
will provide years of service and enjoyment.
NOTICE TO INSTALLER: It is recommended instructions are read before installation,
even if familiar with cover. Improvements may be made without prior notice. Always
handle cover and components with care. If you have any problems or questions, have
serial number ready and call customer service. When done, this owner's manual must
be given to the consumer.
NOTICE TO CONSUMER: Before using cover, read operating, maintenance, and safety
sections and save owner's manual for future reference.
Questions? (800) 441-6287
1 MacNeil Ct, Bolingbrook, IL 60440
from WeatherTech
™
.com
. Manufactured with
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for WeatherTech AlloyCover
Summary of Contents for WeatherTech AlloyCover
- Page 1 INSTALLATION INSTRUCTIONS AND OWNER’S MANUAL Thank you for purchasing the AlloyCover from WeatherTech . Manufactured with ™ ® pride using superior quality materials and workmanship. With proper care, your cover will provide years of service and enjoyment. NOTICE TO INSTALLER: It is recommended instructions are read before installation, even if familiar with cover.
-
Page 2: Parts Diagram
PREPARATION Unpack cover components and clean truck box if dirty. COMPONENTS: TOOLS NEEDED: (1) Driver side rail - 1/2" wrench (1) Passenger side rail - Torque wrench with 1/2" socket (8) Clamps - Spring clamp - optional (1) Pre-folded cover assembly - Tape measure or ruler - Protective eyewear - Marking pen... - Page 3 STEP 1: INSTALLING COVER SIDE RAILS NOTE: Some installs require special Top of rail flush with top instructions. Follow the special instructions of box and touching front for rail attachment along with these of box standard instructions. Position side rail with weather strip against inside lip of box and front catch towards front of box.
-
Page 4: Step 2: Installing Cover
STEP 2: INSTALLING COVER Lift folded cover above rails and place leading edge of front panel on rails at front of box. Hold rear edge of folded cover 1" above rails and slide cover hooks underneath front catch on each side. Front catch both sides Front cover hook... -
Page 5: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Top of tailgate hits cover when Rails set too low at rear of cover, raise attempting to close rails at rear of box until cover no longer interferes with tailgate operation (Refer to Step 1C) Gap between cover Rails set too high (Refer to Step 1C) and tailgate Seal on edge of cover is not sealing... - Page 6 CLOSING TRI-FOLD COVER IMPORTANT: To avoid any damage or misalignment of hinge points, close cover in a smooth, fluid manner. A. Unhook storage clips on both sides. B. Unfold middle panel towards tailgate. C. Unfold rear panel towards tailgate. Make sure all latches engage side rails when closing cover then close tailgate.
- Page 7 OPENING TRI-FOLD COVER IMPORTANT: To avoid any damage or misalignment of hinge points, open cover in a smooth, fluid manner. A. Open tailgate, lightly pull synthetic cord to release latch. Fold rear panel on top of middle panel. B. Fold middle panel on top of front panel.
- Page 8 REMOVAL AND REINSTALL OF COVER REMOVE COVER A. With cover completely open and storage clips secured, pull synthetic cord on front panel and lift rear of cover up 1" above rails (Figure 1). B. Slide cover back to disengage hooks then lift to remove (Figure 2). REINSTALL COVER A.
-
Page 9: Inspection And Maintenance
TIPS FOR A LONGER LASTING COVER • Keep cover closed when not in use, avoid storing cover in its folded position for long periods of time. • Make sure cover is properly latched while traveling and before entering automatic drive-through car washes. •... -
Page 10: Safety Information
SAFETY INFORMATION • Do not tow vehicle backwards with cover on your truck. • Do not cover cargo that is higher than the cover. • Do not place object(s) on or against the cover or its framework at any time. •... -
Page 11: Year Warranty
Goods to be returned must have a pre-authorized RA # (Returned Authorization Number) - obtained by calling the number above. Mark the number on the package and ship it freight prepaid to address on the back page. WeatherTech ®... - Page 12 FOR YOUR RECORDS Date Purchased: Location of Purchase: Serial Number: (Located on decal under rear panel by tailgate) Questions? (800) 441-6287 .com 1 MacNeil Ct, Bolingbrook, IL 60440 Made in USA ©2017 MacNeil IP LLC. 0317...
